Broan Bathroom Fan Single Speed 50 CFM Less than 0.3 Sones

Model: XB50 Item Number: 83505

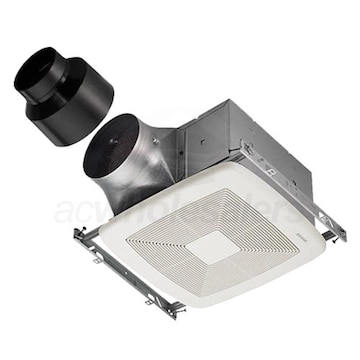

Broan XB50
PREVIOUS
NEXT
Broan XB50
Enlarge Image
Our Price: $191.00
synchrony card icon
$32 / Month
Suggested monthly payments with 6 month financing.
Factory-Direct
Ships in 2-5 Business Days
Broan Bathroom Fan Single Speed 50 CFM Less than 0.3 Sones
Broan Bathroom Fan Single Speed 50 CFM Less than 0.3 Sones Model: XB50 Item Number: 83505
$191.00
Factory-Direct
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    12.5 Pounds Learn More
    12.5 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Fans
    UPC
    026715201198
Features
View More

Features

Overview for Broan XB50

Overview for Broan XB50BROAN ULTRA Series Fans deliver everything you wished for in a bath fan premium ventilation to help reduce airborne pollutants, extremely quiet operation, energy efficiency, consistent power and most impressively, the fastest, easiest, most universal installation available. These fans are ideal for both spot ventilation in humid bathrooms, as well as continuous ventilation to meet various building codes and Green Building standards around the United States.
  • Energy Efficient
  • Broan's ULTRA GREEN™ series bath fans feature ULTRASMART™ DC motor and control technology. The XB50 operates almost ten times more efficient than ENERGY STAR® requirements.
  • Quiet Operation
  • Featuring ULTRASilent™ technology, the XB50 operates at less than 0.3 sones - the lowest sound rating attainable. The XB50 is so quiet, you may not even notice it running.
  • Simple Installation
  • With Broan's ULTRAQuick™ technology, the XB50 features a telescoping mounting frame with pre-installed screws, a snap-in housing, a snap-in blower and inside-out mounting duct connector for the fastest installation possible.
  • Installation Flexibility
  • The XB50's unique mounting frame can be expanded anywhere from 14" to 24" to fit any type of joist, I-joist or truss construction. Retrofit installations can be done entirely from the room-side without the need for access to the attic.
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Fans
    UPC
    026715201198
    General Information
    Type
    Bathroom Fan
    Product Line
    ULTRA GREEN
    Product Category
    Fans
    Mount Type
    Ceiling
    Includes Light
    No
    Performance
    Maximum Air Flow
    50 CFM
    Maximum Sound Level Learn More
    Maximum Sound Level
    The sone is a unit of loudness, or how loud a sound is perceived. For reference, the loudness of rustiling leaves is around 0.02 sones, a quiet running refrigerator is around 2 sones, and a running car is around 4-16 sones.
    0.3 Sones
    Electrical Data
    Voltage
    120 Volts
    Power Consumption
    4.9 Watts
    Current Draw
    0.3 Amps
    Dimensions
    Duct Connection
    4 Inches
    Product Height
    7 5/8 Inches
    Product Width
    14 Inches
    Product Length
    13 Inches
    Product Weight
    12.5 Pounds
    Certifications
    Energy Star Listed
    Yes
    UL Listed
    Yes
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    3 Years
