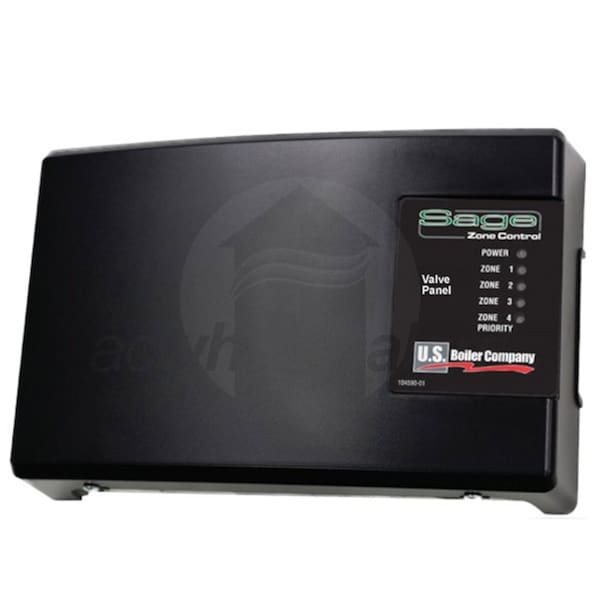

Burnham Sage Zone Control - Valve Panel

Model: 104589-01 Item Number: 82046
Burnham 104589-01
PREVIOUS
NEXT
Burnham 104589-01
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Product Category
    Thermostats and Controls
Features
View More

Features

Overview for Burnham 104589-01

The Burnham Sage Zone Valve Control increases system efficiency and cuts down installation time when paired with Burnham boilers with multiple zone valves. The control panel makes a condensing boiler actually condense by calculating heating demands from different individual zones and adjust its output accordingly. Connecting directly to the boiler with an included RJ45 cable, the control panel is ready to go out of the box with factory settings. This easy to install panel is controlled through the boiler's built in touch screen, and can increase the life of a boiler system by cutting down on short cycling and increasing overall efficiency.
  • HeatMatch™ Software
  • This pre-programmed software calculates zone demand, measures supply water temperature, and automatically adjusts firing rates.
  • Reduces Short Cycling
  • By monitoring the system at all times, the Sage Panel allows your boiler to burn more efficiently, keeping costs down, and extending the life of the boiler.
  • Plug & Play
  • The Sage Panel connects easily using the included RJ45 (Cat 5) cable; and with its pre-programmed settings, is ready to operate right out of the box.
  • Monitoring & Adjustments
  • Settings and adjustments can be accessed through the boiler's touch screen display, while also granting you the ability to monitor heat output and cycle history.
  • Whole Home Freeze Protection
  • When outside temperatures reach below freezing, the Sage Zone Valve Control automatically circulates warm water throughout the home to prevent damage from freezing pipes.
  • Product Compatible With
  • Burnham Alpine Boilers with Sage 2.2 (or newer) Control
  • Burnham Aspen Boilers with Sage 2.2 (or newer) Control
  • Burnham K2 Boilers with Sage 2.2 (or newer) Control
  • Various High & Low Radiation and Indirect Water Heaters
  • Advanced Switching Relay for Non-Modulating Boilers
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Thermostats and Controls
    General Information
    Product Category
    Thermostats and Controls
    Maximum Number of Zones
    4
    Electrical Data
    Voltage
    120 Volts
    Phase
    60
    Frequency
    1 Hz
    Current Draw
    20 Amps
    Dimensions
    Product Height
    8 Inches
    Product Width
    12 1/4 Inches
    Product Depth
    3 Inches
    Shipping Weight
    10 Pounds
