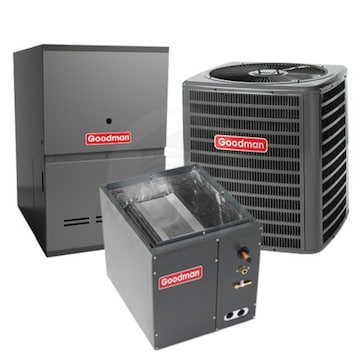

Goodman - 1.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + Variable Speed Furnace System - 15.5 SEER - 80% AFUE - For Downflow Installation

Model: GSX140191 GCVC800803BX CAPFA1818B6 TXV Item Number: 118097
Goodman GSX140191 GCVC800803BX CAPFA1818B6 TXV
PREVIOUS
NEXT
Goodman GSX140191 GCVC800803BX CAPFA1818B6 TXV
Goodman GSX140191 GCVC800803BX CAPFA1818B6 TXV
Goodman GSX140191 GCVC800803BX CAPFA1818B6 TXV
Goodman GSX140191 GCVC800803BX CAPFA1818B6 TXV
Goodman GSX140191 GCVC800803BX CAPFA1818B6 TXV
Goodman GSX140191 GCVC800803BX CAPFA1818B6 TXV
Goodman GSX140191 GCVC800803BX CAPFA1818B6 TXV
Goodman GSX140191 GCVC800803BX CAPFA1818B6 TXV
Goodman GSX140191 GCVC800803BX CAPFA1818B6 TXV
Goodman GSX140191 GCVC800803BX CAPFA1818B6 TXV
Goodman GSX140191 GCVC800803BX CAPFA1818B6 TXV
Enlarge Image
Goodman GSX140191 GCVC800803BX CAPFA1818B6 TXV
Goodman GSX140191 GCVC800803BX CAPFA1818B6 TXV
Goodman GSX140191 GCVC800803BX CAPFA1818B6 TXV
Goodman GSX140191 GCVC800803BX CAPFA1818B6 TXV
Goodman GSX140191 GCVC800803BX CAPFA1818B6 TXV
Goodman GSX140191 GCVC800803BX CAPFA1818B6 TXV
Goodman GSX140191 GCVC800803BX CAPFA1818B6 TXV
Goodman GSX140191 GCVC800803BX CAPFA1818B6 TXV
Goodman GSX140191 GCVC800803BX CAPFA1818B6 TXV
Goodman GSX140191 GCVC800803BX CAPFA1818B6 TXV
Goodman GSX140191 GCVC800803BX CAPFA1818B6 TXV
View All
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    286 Pounds Learn More
    286 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Furnace & Air Conditioner Package
Bundle Includes 4 items
  • product image
    (1) Goodman GCVC80 - 80k BTU - Two-Stage Gas Furnace - 80% AFUE (GCVC800803BX)
  • product image
    (1) Goodman GSX14 - 1.5 Ton - Air Conditioner - 14 Nominal SEER - Single-Stage - R-410A Refrigerant (GSX140191)
  • product image
    (1) Goodman 1.5 Tons 17.5 in. Wide Air Conditioner Cased Coil (CAPFA1818B6)
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Goodman GSX140191 GCVC800803BX CAPFA1818B6 TXV

A Goodman central air and furnace kit is the perfect way to update your home's HVAC system. This kit contains a GSX14 air conditioner, a GCVC80 furnace, and a cased CAPFA evaporator coil making it the ideal solution for most parts of the country. It's the perfect kit for areas that use an average amount of cooling but want a multi-speed furnace for the long cold winters. Each of these components is designed with a focus on ease-of-installation and durability to provide you with upfront and long-term value. If you're looking for a complete comfort solution backed by superior craftsmanship, the Goodman GSX140191 GCVC800803BX CAPFA1818B6 TXV air conditioner and furnace kit fits the bill perfectly.
  • The manufacturer model number(s): Goodman GSX140191 GCVC80803BX CAPF3636B6 TX2N4A
  • AHRI Reference Number: 9923282 * *May change based on the Manufacturer revision
  • Product Note
    NOTE: Due to DOE regulations, as of January 1st this unit can no longer be installed in the southwest and southeast DOE regions.
    Bundle Includes 4 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Overview
    Product Category
    Furnace & Air Conditioner Package
    General Information
    Product Category
    Furnace & Air Conditioner Package
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Modulating/Staging Learn More
    Modulating/Staging
    Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
    Two Stage
    Blower Motor Type
    ECM Variable-Speed
    Coil Width
    17.5 Inches
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Downflow
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    North
    Performance
    AFUE Learn More
    AFUE
    AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
    80 %
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    1.5 Tons
    Cooling Capacity
    18000 BTU
    Nominal Cooling Capacity
    18000 BTU
    Heating BTU
    80000
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    15.5
    EER Learn More
    EER
    EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
    12.5
    Maximum Air Flow
    600 CFM
    Dimensions
    Product Weight
    286 Pounds
    Shipping Weight
    301 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    204638320
    General Information
    Type
    Gas Furnace
    Product Line
    GCVC80
    Product Category
    Furnace
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Natural Gas
    Vent Type Learn More
    Vent Type
    Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
    Chimney Vent
    Modulating/Staging Learn More
    Modulating/Staging
    Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
    Two Stage
    Blower Motor Type
    ECM Variable-Speed
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Downflow/Horizontal
    Gas Conversion Kit
    Available
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide (Except CA)
    Installation Available
    Yes
    Performance
    AFUE Learn More
    AFUE
    AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
    80 %
    Heating BTU
    80000
    High Fire Input
    80000 BTU
    High Fire Output
    64000 BTU
    Low Fire Input
    56000 BTU
    Low Fire Output
    44800 BTU
    Maximum Air Flow
    1200 CFM
    Ultra Low NOx Emissions Learn More
    Ultra Low NOx Emissions
    NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx.
    No
    Low NOx Emissions Learn More
    Low NOx Emissions
    NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Low NOx appliances emit less than 40 ng/J (nanogram per Joule) of NOx.
    Yes
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    7.75 Amps
    Recommended Breaker Size
    15 Amps
    Dimensions
    Flue Connection Size
    4 Inches
    Cabinet Width
    17 1/2 Inches
    Product Height
    33 1/2 Inches
    Product Width
    17 1/2 Inches
    Product Depth
    28 Inches
    Shipping Weight
    109 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    AHRI Reference Number
    202274190
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    10 Years
    Heat Exchanger Warranty
    Lifetime Years
    Overview
    Product Category
    Furnace
    General Information
    Type
    Condenser
    Product Line
    GSX14
    Product Category
    Air Conditioning Condensers
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Cooling
    Refrigerant Type
    R-410a
    Installation Location
    Outdoor
    Compressor Stages Learn More
    Compressor Stages
    Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
    Single Stage
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    North
    Installation Available
    Yes
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    1.5 Tons
    Cooling BTU
    18000
    Cooling Capacity
    18000 BTU
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    14.0
    EER Learn More
    EER
    EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
    12.2
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    71 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    12 Amps
    Recommended Breaker Size
    20 Amps
    Dimensions
    Suction Connection Size
    3/4 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    27 1/2 Inches
    Product Width
    26 Inches
    Product Depth
    26 Inches
    Product Weight
    131 Pounds
    Shipping Weight
    146 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    Limited* 10 Years Years
    Overview
    Product Category
    Air Conditioning Condensers
    General Information
    Type
    Evaporator Coil
    Product Line
    CAPF
    Product Category
    Evaporator Coil
    Refrigerant Type
    R-410A
    Casing
    Cased
    Style
    A Coil
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Upflow/Downflow
    Installation Available
    Yes
    TXV Installed
    No
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    1.5 Tons
    Cooling BTU
    18000
    Nominal Minimum Cooling Capacity
    18000 BTU
    Dimensions
    Suction Connection Size
    3/4 Inch
    Liquid Connection Size
    3/8 Inch
    Cabinet Width
    17 1/2 Inches
    Product Height
    18 Inches
    Product Width
    17 1/2 Inches
    Product Depth
    21 Inches
    Product Weight
    28 Pounds
    Shipping Weight
    38 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    10 Years
    Overview
    Product Category
    Evaporator Coil
    General Information
    Type
    TXV Kit
    Product Line
    TX
    Product Category
    Forced Air Accessories
    Refrigerant Type
    R-410A
    Dimensions
    Product Weight
    1 Pound
    Shipping Weight
    2 Pounds
    Overview
    Product Category
    Forced Air Accessories
