Hydrolevel Residential Steam Boiler Water Feeder 24 VAC

Model: VXT-24 Item Number: 36175
Hydrolevel VXT-24
PREVIOUS
NEXT
Hydrolevel VXT-24
Enlarge Image
Our Price: $336.00
synchrony card icon
$56 / Month
Suggested monthly payments with 6 month financing.
Factory-Direct
Ships in 4-7 Business Days
Hydrolevel Residential Steam Boiler Water Feeder 24 VAC
Hydrolevel Residential Steam Boiler Water Feeder 24 VAC Model: VXT-24 Item Number: 36175
$336.00
Factory-Direct
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    15 Pounds Learn More
    15 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Boiler Accessories
    UPC
    642277450265
Voltage
Select Attribute
Features
View More

Features

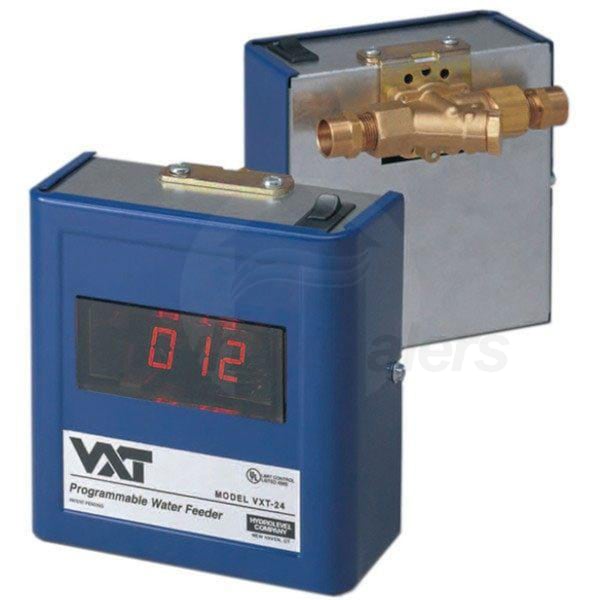

Overview for Hydrolevel VXT-24

The VXT is the first automatic steam boiler water feeder designed to monitor the amount of water added to a steam boiler. The addition of make-up water raises the oxygen level in a boiler and accumulates lime and other mineral deposits. Excessive boiler make-up water can cause cast iron boilers to rust internally, severelyshortening the boiler's life. Mineral deposits from too much make-up water can impede heat transfer causing cast iron boiler sections to overheat and crack. Unlike other water feeders, the VXT can protect the life of a boiler by exposing system leaks that call for excessive make-up watergiving you the information you need to diagnose and repair the system before it's too late. VXT Steam Boiler Water Feeders are primarily used on residential and light commercial steam heating boilers up to 500,000 Net BTUH. They are not recommended for commercial steam process work. The VXT feeder should be wired to and receive its signal from a float or probe type low water cut-off. When the VXT receives a signal from the LWCO, it initiates an adjustable delay before feed to allow condensate from the system to return to the boiler and near boiler piping. Upon completion of the delay, if the LWCO feed signal is still present, the feeder begins its feed cycle. If the feed signal is still present after the completion of the feed cycle, the control will revert back to its delay mode. After the second delay expires the control will begin another feed cycle. If the signal is still present after the second feed cycle, the control will lock-out until the feed signal from the LWCO has been removed. Once in lock-out, the feeder can be forced to feed an additional two cycles each time power is removed then reapplied. The Safgard VXT water feeder is fully programmable to accommodate any residential steam system.
  • Universal Compatibility
  • The VXT can be used with virtually any probe or float type low water cut-off
  • Digital Feed Counter
  • Displays the amount of water added to the boiler, essential in detecting boiler destroying water loss problems
  • Programmable Feed Delay
  • Helps prevent flooded boilers by allowing time for condensate to return to boiler before initiating a feed cycle
  • Programmable Feed Amount
  • Two ways to feed; gallon amount settings can feed above the probe to a working water line, and LWCO setting ends feed when LWCO reenergizes the burner
  • Underfeed Protection
  • If one feed cycle is not enough to restore boiler operation, the VXT will delay and feed one additional time
  • Lock-Out Flood Protection
  • The VXT will lock out to prevent system flooding and costly water damage if burner operation does not resume after two consecutive feed cycles
  • Manual Feed Button
  • Manual feed amounts are recorded and added to the gallon total displayed on counter
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Boiler Accessories
    UPC
    642277450265
    General Information
    Product Category
    Boiler Accessories
    Connection Type
    Sweat
    Electrical Data
    Voltage
    24 Volts
    Power Consumption
    10 Watts
    Frequency
    60 Hz
    Dimensions
    Connection Size
    1/2 Inch
    Product Weight
    15 Pounds
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    1 Year
