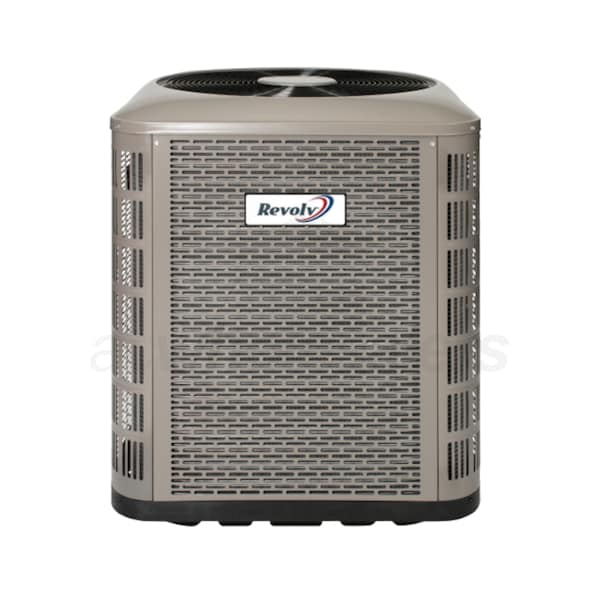

Revolv AccuCharge® 3.5 Ton - Air Conditioner - Manufactured Home - 13.4 SEER2 - Single-Stage - R-410a Refrigerant
New NewThis product is new and has never been used. It's in its original packaging, which has not been opened.
Type
Condenser
Product Line
AccuCharge
Product Category
Air Conditioning Condensers
View More
+Share This Product
Recommended Accessories
Required AccessoriesAdd All Required
Installation Accessories
Features
Features
Overview for Revolv RSA3QD4M1SN42
Revolv is all about delivering easier installation, improved energy efficiency, and long lasting performance. What makes Revolv stand out against the rest is its complete AccuCharge® system that delivers a factory precise refrigerant charge so that installers aren't forced to spend hours balancing out the system. All Revolv systems also come with FitRight® fittings that give you a quick easy installation process. If you're looking for a reliable, efficient unit then the Revolv AccuCharge® air conditioner is for you.
AccuCharge® with FitRight® Fittings
All AccuCharge® units come with a factory precise refrigerant charge and FitRight® fittings that provide an easy installation. The combination of the two are engineered for superior efficiency and reliability.
Corrosion Resistant Finish
The Revolv AccuCharge® air conditioners are made out of a galvanized steel with a powder coated paint, creating a durable and corrosion resistant finish.
Composite Base Pan
A composite base pan is stronger and lighter than your standard steel base pan. Being composite, it absorbs sound better and is also corrosion resistant.
High Pressure Switch
The AccuCharge® air conditioners come with a high pressure switch that protects your unit against unsafe high system pressures. It has an auto-reset feature that prevents unnecessary service visits.
Condenser Guard
The RSA3QD4M1SN42 has a durable, powder coated metal guard and mesh hail guard that protect the coil from extreme weather or objects hitting it and damaging your unit.
Micro-Channel Coils
All of the Revolv models have all highly corrosion-resistant aluminum coils, minimizing refrigerant charge and cost.
Designed for Manufactured Housing
Featuring quick connect fittings and charged with refrigerant for 15 feet of lineset, the RSA3QD condenser simplifies your installation.
Filter Drier
The Revolv RSA3QD models have a factory installed liquid line filter drier to trap moisture and particulates.
Product Note
The US Department of Energy regulates minimum efficiency standards for central air conditioners and heat pumps based on geographic regions. We are required to abide by these regulations when selling products, and take this responsibility seriously. The standards depend on the rated efficiency of the entire system, not the nominal efficiencies of individual components. If you are unsure if your system will be compliant, please call or email us for help. This unit requires a AccuCharge® with FitRight® Fittings lineset. Please see the Accessories Tab.
Specifications
Specifications
General Information
Type
Condenser
Product Line
AccuCharge
Product Category
Air Conditioning Condensers
Operating Mode Operating ModeSome products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Cooling
Refrigerant Type
R-410A
Connection Type
AccuCharge
Installation Location
Outdoor
Compressor Stages Compressor StagesStages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single Stage
DOE Regional Compliance DOE Regional ComplianceIn 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
North
UPC
663132448722
Performance
Capacity CapacityTonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.5 Tons
Cooling BTU
42000
Maximum Sound Level Maximum Sound LevelSound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
79 dB
SEER2 SEER2The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
13.4
EER2 EER2The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. EER2 (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER2, the more efficient the system.
11.0
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
40 Amps
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
7/8 Inch
Product Height
29 1/4 Inches
Product Width
31 3/4 Inches
Product Depth
31 3/4 Inches
Shipping Weight
174 Pounds
Certifications
AHRI Certified
Yes
