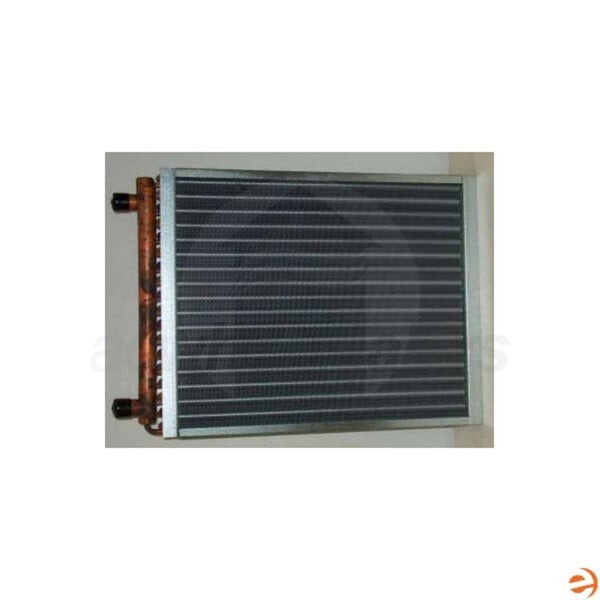

WSD 20H x 20L Water to Air Heat Exchanger 50,000-145,000 BTU

Model: WSD 20X20 Item Number: 45159
WSD WSD 20X20
PREVIOUS
NEXT
WSD WSD 20X20
Enlarge Image
Our Price: $463.00
synchrony card icon
$78 / Month
Suggested monthly payments with 6 month financing.
Factory-Direct
Ships in 2-5 Business Days
WSD 20H x 20L Water to Air Heat Exchanger 50,000-145,000 BTU
WSD 20H x 20L Water to Air Heat Exchanger 50,000-145,000 BTU Model: WSD 20X20 Item Number: 45159
$463.00
Factory-Direct
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    16.03 Pounds Learn More
    16.03 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Boiler Accessories
Features
View More

Features

Overview for WSD WSD 20X20

Hot Water Coil, Water to Air Heat Exchanger is a three row A-shaped coil with twelve fins per inch. It is designed to transfer heat energy between water and another medium (usually air) as quickly and efficiently as possible. Heating coils transmit energy from hot water to a stream of air; cooling coils extract energy from an air stream and add it to cold water. The coils themselves consist of a matrix of copper tubes through which the water flows. The tubes run back and forth between two end-plates in an arrangement that lets the air flow perpendicular to the tubes. The tubes pass through and are attached to a layered array of thin metal plates known as fins. The fins are also perpendicular to the tubes, which mean they lie parallel to the direction of air flow. The air flows between them. Energy either passes from the water via the tubes and fins to the air or from the air via the fins and tubes to the water.
  • WSD WSD 20X20 Features
  • 20" x 20" fin dimension
  • 20 gauge steel casing
  • Three row of coils
  • 1" copper sweat headers
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Boiler Accessories
    General Information
    Product Category
    Boiler Accessories
    Refrigerant Type
    Hydronic
    Casing
    Cased
    Style
    Slab Coil
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Horizontal
    Performance
    Maximum Input Capacity Learn More
    Maximum Input Capacity
    The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
    145000 BTU
    Minimum Input Capacity
    50000 BTU
    Dimensions
    Supply Connection
    1 Inch
    Return Connection
    1 Inch
    Product Height
    20 1/4 Inches
    Product Width
    22 Inches
    Product Depth
    3 1/2 Inches
    Product Weight
    16.03 Pounds
    Certifications
    Country of Origin
    United States
    UL Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    3 Years
