ADP HED-100S 100,000 BTU NG Duct Furnace Heater Stainless Exchanger
NewNewThis product is new and has never been used. It's in its original packaging, which has not been opened.
Weight
230 Pounds230 PoundsTotal weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
Introducing the SEP Series by ADP. These large commercial unit heaters are the perfect solution for heating warehouse and garage spaces. ADP's dedication for perfect quality products, extremely advanced designs, unique processes, propriety testing technologies and a trouble-free customer experience are integrated into the manufacturing process. The HED series gas-fired duct furnaces deliver 80% thermal efficiency using natural gas only. This excellent efficiency sets a new standard when using gas-fired duct furnaces. The design of this duct furnace has proven itself to be superior during seven years and hundreds of thousands of hours in the toughest winter climates of North America and under extreme conditions in laboratory life cycle testing. The HED has been designed to provide a long, trouble free service life. Every heater undergoes continuous quality checks at all stages of manufacturing. After assembly, each heater is test fired and functionally tested to provide final assurance that it is performing in accordance with ADP's rigorous quality. All heaters have a sealed flue collector and a power exhaust system which enable conventional vertical venting or horizontal venting up to 40 feet. Power exhaust, when used with horizontal venting, lowers operating cost because it reduces stack losses. It also allows the option of not penetrating the roof, or multiple floors. The versatile HED series power exhaust reduces installation cost further by allowing the exhaust to be directed upward, left or right, just by rotating the exhaust assembly (available on sizes 75-150 only). An additional benefit is reduction of clearance to combustibles on top of the unit. Constructed on 18- to 22-gauge cold-rolled steel, each cabinet has a baked-on powder paint finish for superior resistance to corrosive elements. Each cabinet has a two-point (3/8" x 16" spotnut) suspension system for easy installation. The three largest models have four-point suspensions. Generous use of inside cabinet insulation keeps the outer surface temperature low. The wiring junction box is conveniently located on the side of the cabinet for easy access and adequate protection.

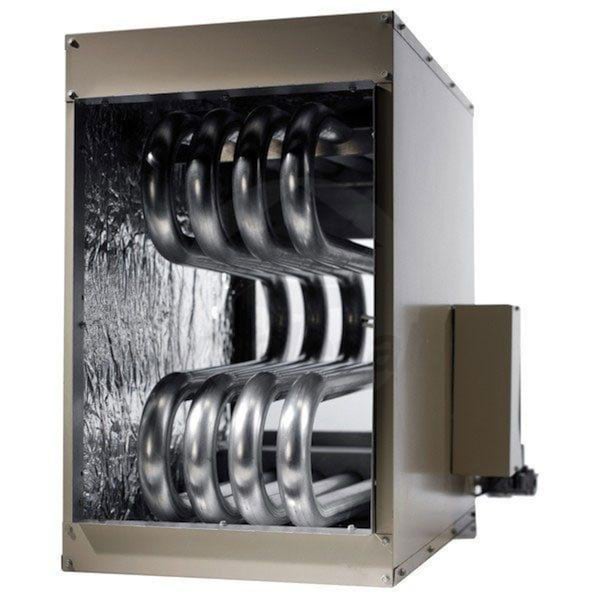

Tubular Heat Exchangers
Constructed of aluminized steel for superior resistance to corrosion and oxidation. Additional protection is available with an optional stainless steel heat exchanger.
The curving design provides for complete exposure of the heating surface to the supply air stream. Rounded surfaces minimize air resistance and permit air to surround all heat transfer surfaces for excellent heat transfer.
The compact design of the heat exchanger minimizes cubic space requirements for the heater cabinet. Tubular design means lighter weight and significantly longer service life due to lower thermal-induced stresses.
Further, the tubular exchangers create less resistance to air flowing through the unit. This results in lower air handler horsepower requirements, reducing system operating costs in every season.
Inshot burners
These lightweight steel burners are maintenance-free and never require adjustment. The burner venture mixes air and gas in the correct proportion for efficient combustion. The entire burner assembly is removable for ease of service.
Direct spark ignition
In combination with the 24-volt main gas valve with 100% shutoff for safety, the direct spark ignition control provides reliable and safe main burner ignition. This eliminates the need for a pilot light, improving system efficiency and reliability.
Product Includes
A completely assembled heater
Installation and operation instructions
Warranty certificate
Flue transition
Specifications
Specifications
General Information
Heat Exchanger Material
Stainless Steel
Fuel Type Fuel TypeTo create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type Vent TypeProducts that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Power Vent
Configuration ConfigurationOrientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Gas Conversion Kit
Not Available
Performance
Heating Capacity
80000 BTU
Maximum Input Capacity Maximum Input CapacityThe Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
100000 BTU
Thermal Efficiency
80 %
Maximum Air Flow
3700 CFM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
4 Inches
Gas Piping Diameter
1/2 Inch
Product Height
32 3/16 Inches
Product Width
20 3/16 Inches
Product Depth
40 Inches
Product Weight
230 Pounds
Shipping Weight
140 Pounds
Warranty Information
Heat Exchanger Warranty
1 Year
