AIC Single Wall Flat Plate to Plate Heat Exchanger 7.6'' L x 3.1'' W

Model: LA14-40 Item Number: 44975
AIC Alliance LA14-40
PREVIOUS
NEXT
AIC Alliance LA14-40
AIC Alliance LA14-40
Enlarge Image
AIC Alliance LA14-40
AIC Alliance LA14-40
View All
Our Price: $259.00
synchrony card icon
$44 / Month
Suggested monthly payments with 6 month financing.
Factory-Direct
Ships in 4-7 Business Days
AIC Single Wall Flat Plate to Plate Heat Exchanger 7.6'' L x 3.1'' W
AIC Single Wall Flat Plate to Plate Heat Exchanger 7.6'' L x 3.1'' W Model: LA14-40 Item Number: 44975
$259.00
Factory-Direct
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    10 Pounds Learn More
    10 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Boiler Accessories
Features
View More

Features

Overview for AIC Alliance LA14-40

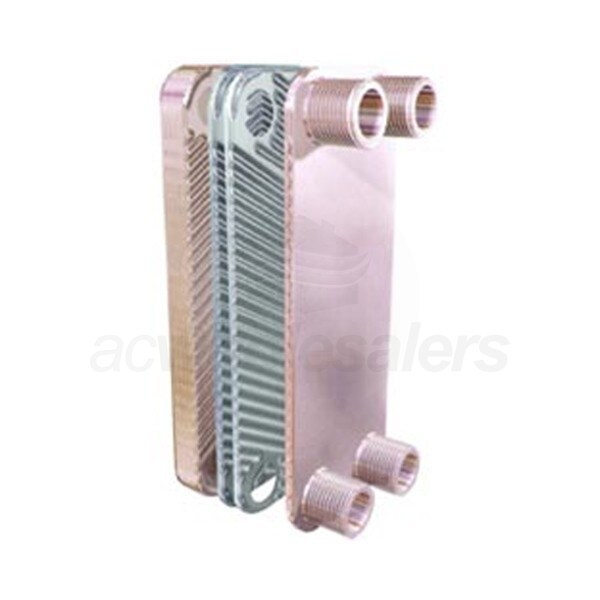

AIC LA 14-40 Brazed Flat Plate to Plate Heat Exchanger is designed with copper single wall plates and stainless steel connections. L-line heat exchangers have a working temperature up to 445-degrees F. Typical applications include central heating, hydronic heating, solar and geothermic heating, industrial process heat recovery, condensers and evaporators in refrigeration systems, oil coolers, and close approach fluid-to-fluid heat transfer. The LA14-40 has a working pressure up to 481 psi.
  • AIC Alliance LA14-40 Features
  • Copper single wall plate
  • Stainless steel connections
  • Working pressure up to 481 psi
  • Working temperature up to 445-degrees F
  • 3/4" MPT connections
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Boiler Accessories
    General Information
    Product Line
    L-Line
    Product Category
    Boiler Accessories
    Refrigerant Type
    Hydronic
    Casing
    Uncased
    Style
    Slab
    Performance
    Maximum Input Capacity Learn More
    Maximum Input Capacity
    The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
    100000 BTU
    Dimensions
    Supply Connection
    3/4 Inch
    Return Connection
    3/4 Inch
    Product Height
    7 29/48 Inches
    Product Width
    3 5/48 Inches
    Product Weight
    10 Pounds
    Certifications
    Country of Origin
    United States
    UL Listed
    Yes
