AIC Single Wall Flat Plate to Plate Heat Exchanger 20.9'' L x 9.8'' W
AIC Single Wall Flat Plate to Plate Heat Exchanger 20.9'' L x 9.8'' W Model: LC110-50X2J Item Number: 44998
$1,864.00
Factory-Direct
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    20 Pounds Learn More
    20 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Boiler Accessories
Features
View More

Features

Overview for AIC Alliance LC110-50X2J

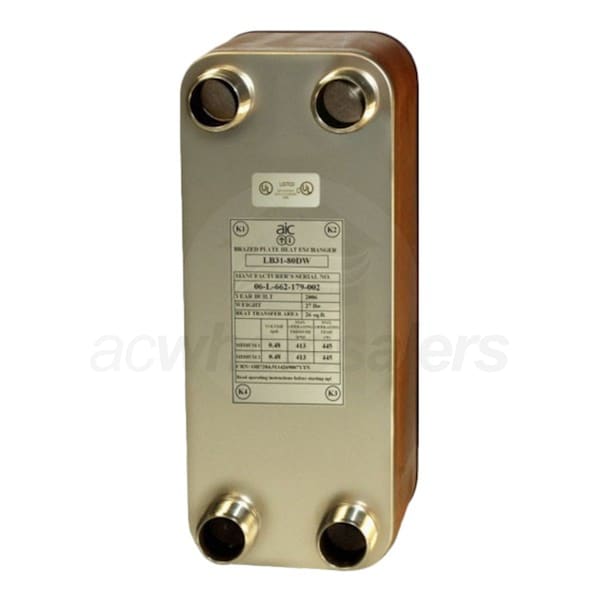

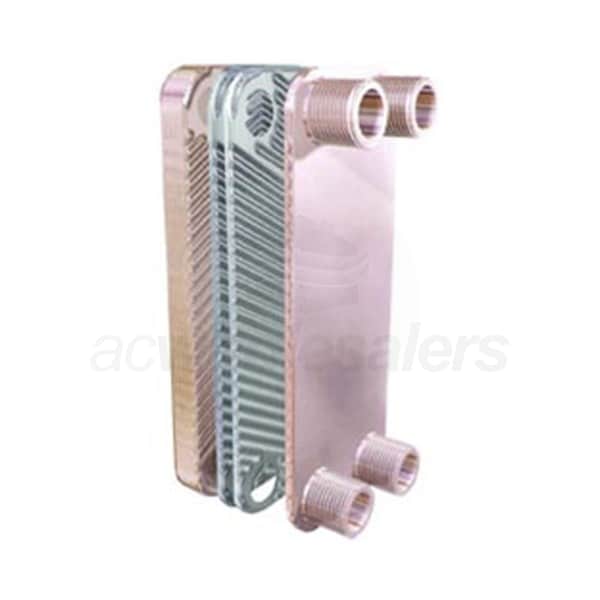

AIC LC110-50X2J Brazed Flat Plate to Plate Heat Exchanger is designed with copper single wall plates and stainless steel connections. L-line heat exchangers have a working temperature up to 445-degrees F. Typical applications include central heating, hydronic heating, solar and geothermic heating, industrial process heat recovery, condensers and evaporators in refrigeration systems, oil coolers, and close approach fluid-to-fluid heat transfer. The LC110-50X2J has a working pressure up to 481 psi.
  • AIC Alliance LC110-50X2J Features
  • Copper single wall plate
  • Stainless steel connections
  • Working pressure up to 481 psi
  • Working temperature up to 445-degrees F
  • 2" MPT connections
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Boiler Accessories
    General Information
    Product Line
    L-Line
    Product Category
    Boiler Accessories
    Refrigerant Type
    Hydronic
    Casing
    Uncased
    Style
    Slab
    Dimensions
    Supply Connection
    2 Inches
    Return Connection
    2 Inches
    Product Height
    20 43/48 Inches
    Product Width
    9 19/24 Inches
    Product Weight
    20 Pounds
    Certifications
    Country of Origin
    United States
    UL Listed
    Yes
