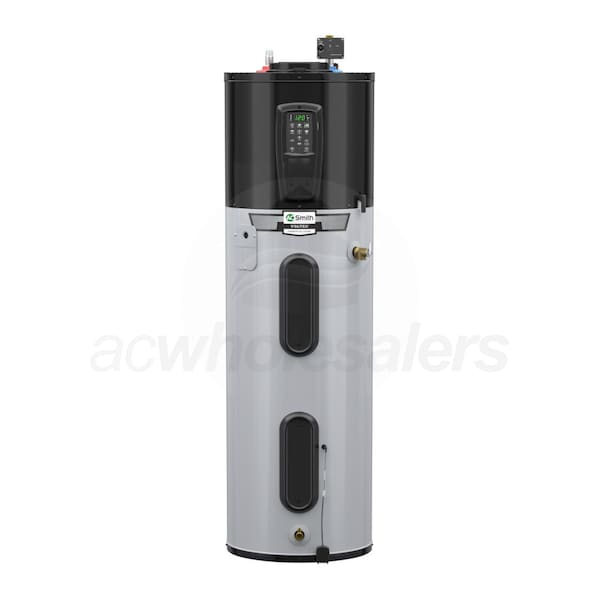

A.O. Smith HPTA Voltex® Max - 80 Gallon Capacity - Residential Smart Hybrid Electric Heat Pump Water Heater

Model: HPTA-80 Item Number: 163498
A.O. Smith HPTA-80
PREVIOUS
NEXT
A.O. Smith HPTA-80
A.O. Smith HPTA-80
A.O. Smith HPTA-80
Enlarge Image
A.O. Smith HPTA-80
A.O. Smith HPTA-80
A.O. Smith HPTA-80
View All
Our Price: $3,287.06
synchrony card icon
$58 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
In-Stock
Ships Thursday, March 27th
Shipping to60601
A.O. Smith HPTA Voltex® Max - 80 Gallon Capacity - Residential Smart Hybrid Electric Heat Pump Water Heater
A.O. Smith HPTA Voltex® Max - 80 Gallon Capacity - Residential Smart Hybrid Electric Heat Pump Water Heater Model: HPTA-80 Item Number: 163498
$3,287.06
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    302 Pounds Learn More
    302 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Hybrid Electric Water Heater
    Product Line
    Voltex Max
Recommended Accessories
View More
Installation Accessories
ProFlo PFXT - 2 Gallon - In-Line Thermal Expansion Tank
Model: PFXT5I
Storage Volume (Gallons)
Qty
$46.80
In-Stock
Add To Cart
Amtrol Therm-X-Trol - 2 Gallon - In-Line Thermal Expansion Tank
Model: ST-5
Storage Volume (Gallons)
Qty
$66.00
In-Stock
Add To Cart
Oatey 30" Aluminum Water Heater Pan w/ 1" PVC Fitting
Model: 34085
Qty
$29.00
In-Stock
Add To Cart
American Valve - ScaleRx™ Water Heater Scale Prevention System
Model: ASCALERX34
Qty
$150.00
In-Stock
Add To Cart
Features
View More

Features

Overview for A.O. Smith HPTA-80

A.O. Smith continues to lead the way in residential and commercial water heating with decades of innovative hot water solutions. The A.O. Smith Voltex® Max can deliver up to 40% more hot water with Hot Water+ using smart valve technology. Ideal for your homes basement, utility room or garage, the Voltex® Max can dehumidify and cool the ambient air while the compressor transfers heat to the water. With iComm® Smart Connectivity built in, you can set up alerts to notify you of your water heaters operations and possible issues. The energy efficient and quiet A.O. Smith Voltex® Max has a flexible design that is preferred by contractors. With additional features like leak detection and automatic water shutoff, you can feel confident in your purchase of an A.O. Smith Voltex® Max.
  • Hot Water+
  • The A.O. Smith Voltex® Max has three Hot Water+ levels to choose from and can deliver up to 40% more hot water than a standard heat pump
  • Smart Modes
  • Vacation Mode minimizes energy consumption and is ideal for when the unit is not used for a period of time.
  • Hot Water+ Mode can be operated with Hybrid, Heat Pump or Electric Mode to allow the user to increase performance.
  • Guest Mode delivers maximum performance and capacity for higher than normal usage.
  • Electric Mode allows the water heater to function as a conventional electric unit which can be helpful during periods of hot water demand.
  • iComm® Connectivity
  • Featuring iComm® Smart Connectivity, the A.O. Smith Voltex® Max gives you the ability to conveniently monitor and control the water heater through an app.
  • Leak Protection
  • With smart sensor leak detection and an automatic water shutoff, the A.O. Smith Voltex® Max provides the homeowners with peace of mind.
  • Smart Anode
  • Adapting to local water conditions, the smart anode in the Voltex® Max helps to extend the life of the water heater. Leak protection technology regulates the depletion of the anode rod, extending rod and tank life.
  • Advanced Tank Protection
  • The A.O. Smith Voltex® Max features a CoreGard™ anode rod, Blue Diamond® glass lining and DynaClean™ automatic sediment-cleaning to protect the tank and extend the life of the water heater.
  • Flexible Design

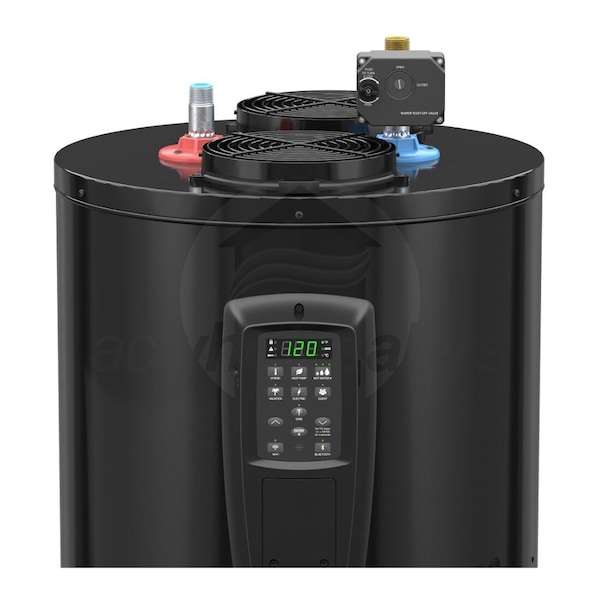

  • The A.O. Smith Voltex® Max has water connections on the top of the unit with no clearance required on the sides. This design allows installation in tighter spaces possible and makes installation simpler.
  • Specifications
    View More

    Specifications

    General Information
    Type
    Hybrid Electric Water Heater
    Product Line
    Voltex Max
    Product Category
    Water Heater - Tank
    Medium Learn More
    Medium
    Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
    Hot Water
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Electric
    Storage Type
    Tank
    Application
    Residential
    Mount Type
    Floor
    Capacity
    81 Gallons
    UPC
    671657282172
    Performance
    First Hour Delivery Learn More
    First Hour Delivery
    Sometimes called First Hour Rating, this is the number of gallons of hot water the heater can supply per hour when starting with a fully heated tank. The recovery of the water heater depends on your boiler's BTU and boiler output temperature.
    95 Gallons
    Uniform Energy Factor Learn More
    Uniform Energy Factor
    Uniform Energy Factor (UEF) is a measurement of water heater energy efficiency. The higher the energy factor, the more efficient the water heater.
    3.88
    Electrical Data
    Voltage
    208/240 Volts
    Phase
    1
    Frequency
    60 Hz
    Recommended Breaker Size
    30 Amps
    Current Draw
    23.6 Amps
    Dimensions
    Cold Water Inlet
    3/4 Inch
    Hot Water Outlet
    3/4 Inch
    Product Height
    69 Inches
    Product Width
    26 1/2 Inches
    Product Depth
    26 1/2 Inches
    Product Weight
    302 Pounds
    Shipping Weight
    302 Pounds
    Certifications
    UL Listed
    Yes
    Energy Star Listed
    Yes
    CSA Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    214091864
