Amtrol Fill-Trol - 7.4 Gallon - Expansion Tank & Fill Valve Combination Kit - 1-1/4" Purger & Vent

Model: FT-111-125 Item Number: 23072
Amtrol FT-111-125
PREVIOUS
NEXT
Amtrol FT-111-125
Amtrol FT-111-125
Amtrol FT-111-125
Amtrol FT-111-125
Amtrol FT-111-125
Amtrol FT-111-125
Amtrol FT-111-125
Enlarge Image
Amtrol FT-111-125
Amtrol FT-111-125
Amtrol FT-111-125
Amtrol FT-111-125
Amtrol FT-111-125
Amtrol FT-111-125
Amtrol FT-111-125
View All
Our Price: $247.00
synchrony card icon
$42 / Month
Suggested monthly payments with 6 month financing.
Factory-Direct
Ships in 12-16 Weeks
Amtrol Fill-Trol - 7.4 Gallon - Expansion Tank & Fill Valve Combination Kit - 1-1/4
Amtrol Fill-Trol - 7.4 Gallon - Expansion Tank & Fill Valve Combination Kit - 1-1/4" Purger & Vent Model: FT-111-125 Item Number: 23072
$247.00
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    20 Pounds Learn More
    20 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Boiler Accessories
    UPC
    642031114938
Bundle Includes 3 items
  • product image
    (1) Amtrol Fill-Trol - 7.4 Gallon - Expansion Tank & Fill Valve (FT-111)
  • product image
    (1) Amtrol 444-1 - 1.25" Air Purger (444-1)
  • product image
    (1) Amtrol Automatic Air Vent - 1/8" MPS (700-30)
Tank Size
Select Attribute
Connection Size
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Amtrol FT-111-125

In 1954, Amtrol invented the first expansion tank to control pressure build-up and energy consumption in heating and chilled water systems. More than 50 years later they are still the world?s leading expansion tank manufacturer. The FT expansion tank collects expanded water as system temperatures rise, reducing potentially dangerous pressure build-up. Ideal for residential applications, the FT is equipped with an automatic fill valve, 100 percent tested sealed air cushion, water-tight reservoir, air stem for pre-charge adjustment, and a deep drawn steel tank, all ensuring the reliability of your tank over the long haul. FT-111-125 also includes an air purger that separates water from air, as well as an automatic air vent that eliminates system air. This keeps your whole system running smoother, quieter, and more effectively.

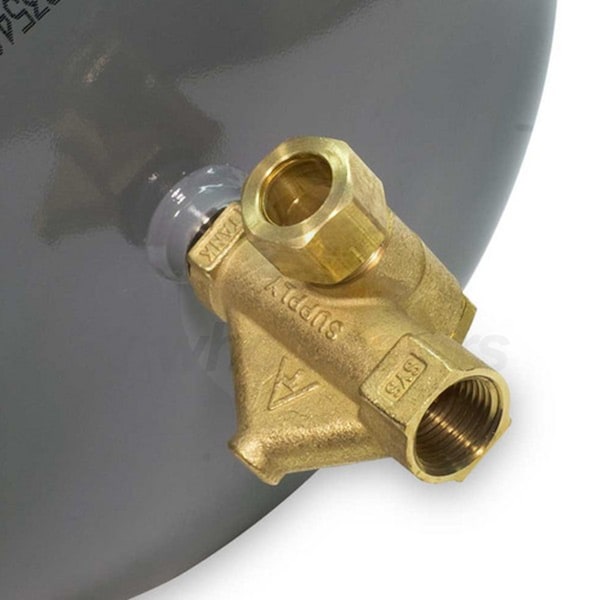

  • FILL-TROL System
  • FT's FILL-TROL system eliminates the need for a separate fill valve, as it is built right into the tank, allowing tank pressure to control the system fill.

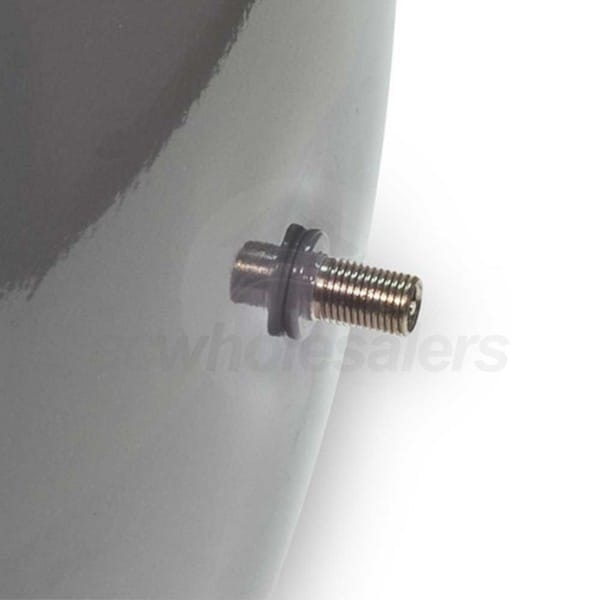

  • Heavy Duty Tank
  • From the deep drawn steel tank to the water-tight reservoir for expanded water, this thermal expansion tank is constructed for maximum strength and efficient energy consumption.
  • Eliminates Wasted Energy
  • Expanded water caused by thermal expansion is collected by the FT tank which returns the water back to your system which preventing faucet drips, intermittent toilet fill, and pressure relief valve discharge.
  • Protection for Your System
  • FT expansion tanks are designed to protect your water heater, fixtures, and appliances by preventing dangerous pressure build up.
  • Air Vent
  • The included automatic air vent eliminates system air, keeping your system running smoothly.
  • Air Purger
  • The air purger separates air from water before sending the water into the expansion tank and air to the vent.
  • Product Includes
  • (1) Amtrol FT-111 Expansion Tank
  • (1) Amtrol 700-C Air Vent
  • (1) Amtrol 444 Air Purger
  • Bundle Includes 3 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Overview
    Product Category
    Boiler Accessories
    UPC
    642031114938
    General Information
    Product Line
    Fill-Trol
    Product Category
    Boiler Accessories
    Connection Type
    NPT
    Performance
    Maximum Operating Temperature
    240 F
    Maximum Operating Pressure
    100 PSI
    Dimensions
    Storage Volume
    7 Gallons
    Maximum Acceptance Volume
    2.5 Gallons
    Connection Size
    1/2 Inch
    Product Diameter
    11 Inches
    Product Height
    23 Inches
    Product Weight
    20 Pounds
    Shipping Height
    31 Inches
    Shipping Width
    11 Inches
    Shipping Length
    11 Inches
    Shipping Weight
    26 Pounds
    Certifications
    Country of Origin
    United States
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    General Information
    Product Line
    Fill-Trol
    Product Category
    Boiler Accessories
    Connection Type
    NPT
    Performance
    Maximum Operating Temperature
    240 F
    Maximum Operating Pressure
    100 PSI
    Dimensions
    Storage Volume
    7 Gallons
    Maximum Acceptance Volume
    2.5 Gallons
    Connection Size
    1/2 Inch
    Product Diameter
    11 Inches
    Product Height
    23 Inches
    Product Weight
    14 Pounds
    Shipping Width
    11 Inches
    Shipping Height
    25 Inches
    Shipping Length
    11 Inches
    Shipping Weight
    19 Pounds
    Certifications
    Country of Origin
    United States
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Overview
    Product Category
    Boiler Accessories
    General Information
    Type
    Air Purger
    Product Category
    Boiler Accessories
    Connection Type
    NPT
    Material
    Cast Iron
    Performance
    Maximum Operating Pressure
    125 PSI
    Dimensions
    Connection Size
    1 1/4 Inches
    Product Height
    4 Inches
    Product Width
    2 1/2 Inches
    Product Length
    6 Inches
    Product Weight
    5 Pounds
    Shipping Weight
    5 Pounds
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    1 Year
    Overview
    Product Category
    Boiler Accessories
    General Information
    Type
    Air Vent
    Product Category
    Boiler Accessories
    Connection Type
    MPS
    Performance
    Maximum Operating Temperature
    240 F
    Maximum Operating Pressure
    150 PSI
    Dimensions
    Connection Size
    1/8 Inch
    Product Height
    3 3/4 Inches
    Product Width
    2 Inches
    Product Length
    2 Inches
    Product Weight
    1 Pound
    Shipping Weight
    2 Pounds
    Overview
