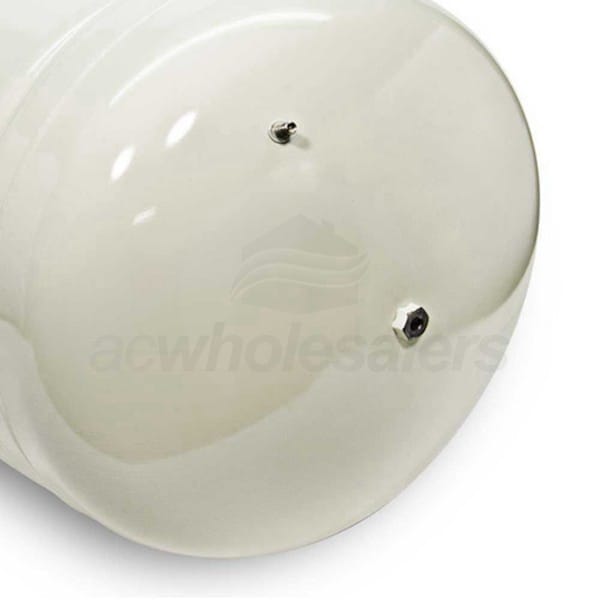

Amtrol 14 Gallon Vertical Thermal Expansion Tank 3/4" NPT 11.3 Gall

Model: ST-30V Item Number: 45599
Amtrol ST-30V
PREVIOUS
NEXT
Amtrol ST-30V
Amtrol ST-30V
Enlarge Image
Amtrol ST-30V
Amtrol ST-30V
View All
Our Price: $381.00
synchrony card icon
$64 / Month
Suggested monthly payments with 6 month financing.
In-Stock
Ships Monday, November 18th
Shipping to60601
Amtrol 14 Gallon Vertical Thermal Expansion Tank 3/4
Amtrol 14 Gallon Vertical Thermal Expansion Tank 3/4" NPT 11.3 Gall Model: ST-30V Item Number: 45599
$381.00
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Product Category
    Water Heater - Expansion Tanks
    UPC
    642031395696
Storage Volume (Gallons)
Select Attribute
ASME Certified
Learn More
ASME Certified
The largest focus of the American Society of Mechanical Engineers is the Boiler and Pressure Vessel Code (BPVC). The BPVC provides regulations for design, fabrication, installation, inspection, care, and use of boilers, pressure vessels, and nuclear components. This certification is given to show that these standards are met.
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Amtrol ST-30V

In 1954, Amtrol invented the thermal expansion tank to control pressure build-up in closed, hot water systems. Today they are continuing to roll out efficient and reliable tanks to improve your system. The ST vertical thermal expansion tank is a perfect example of this. By accepting expanded water caused by thermal expansion, the ST is able to then return the water to the system when hot water is used. The ST also prevents pressure relief valve discharge, dripping faucets, and intermittent toilet fill. From the strong deep drawn steel domes with corrosion resistant liner to the welded air charge fitting, the ST is designed to prevent damaging pressure buildup and eliminate energy and water waste. The ST-30V is ideal for large residential and light commercial applications.
  • USA Made
  • All ST thermal expansion tanks are made in the USA at facilities certified for maintaining high-quality standards.
  • Heavy Duty Tank
  • From the deep drawn steel dome with rigid polypropylene liner to the welded air charge fitting, this thermal expansion tank is constructed from top to bottom for maximum strength and corrosion resistance.
  • Eliminates Wasted Energy
  • Expanded water caused by thermal expansion is collected by the ST tank which returns the water back to your system which preventing faucet drips, intermittent toilet fill, and pressure relief valve discharge.
  • Protection for Your System
  • ST thermal expansion tanks are designed to protect your water heater, fixtures, and appliances by preventing dangerous pressure build up.
  • Adaptable
  • Multiple tanks can be installed to accommodate large systems.
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Water Heater - Expansion Tanks
    UPC
    642031395696
    General Information
    Product Line
    Therm-X-Trol
    Product Category
    Water Heater - Expansion Tanks
    Connection Type
    NPT
    Color
    Tan
    Capacity
    14 Gallons
    Performance
    Maximum Operating Temperature
    200 F
    Maximum Operating Pressure
    150 PSI
    Dimensions
    Maximum Acceptance Volume
    11.3 Gallons
    Connection Size
    3/4 Inch
    Product Diameter
    15 3/8 Inches
    Product Height
    23 7/8 Inches
    Shipping Height
    24 Inches
    Shipping Width
    15 Inches
    Shipping Length
    15 Inches
    Certifications
    Country of Origin
    United States
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    1 Year
