Amtrol Extrol - 62 Gallon - Vertical Boiler System Expansion Tank

Model: SX-110V Item Number: 45594
Amtrol SX-110V
PREVIOUS
NEXT
Amtrol SX-110V
Amtrol SX-110V
Amtrol SX-110V
Enlarge Image
Amtrol SX-110V
Amtrol SX-110V
Amtrol SX-110V
View All
Our Price: $908.00
synchrony card icon
$152 / Month
Suggested monthly payments with 6 month financing.
In-Stock
Ships Monday, December 23rd
Shipping to60601
Amtrol Extrol - 62 Gallon - Vertical Boiler System Expansion Tank
Amtrol Extrol - 62 Gallon - Vertical Boiler System Expansion Tank Model: SX-110V Item Number: 45594
$908.00
In-Stock
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    92 Pounds Learn More
    92 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Boiler Accessories
    UPC
    642031118721
Storage Volume (Gallons)
Select Attribute
Features
View More

Features

Overview for Amtrol SX-110V

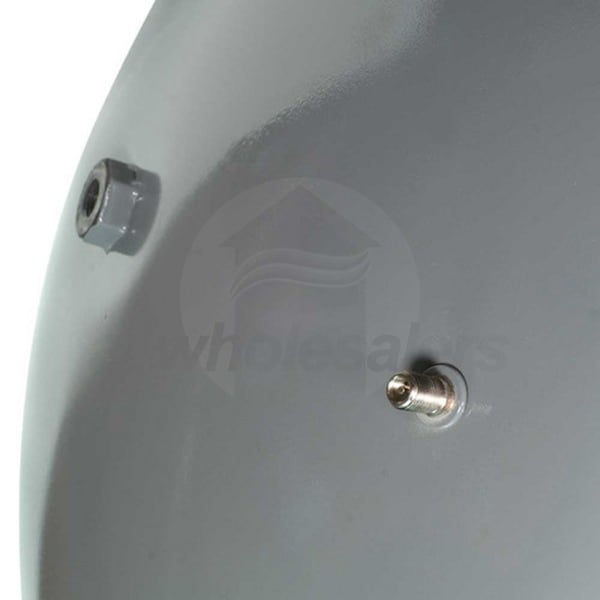

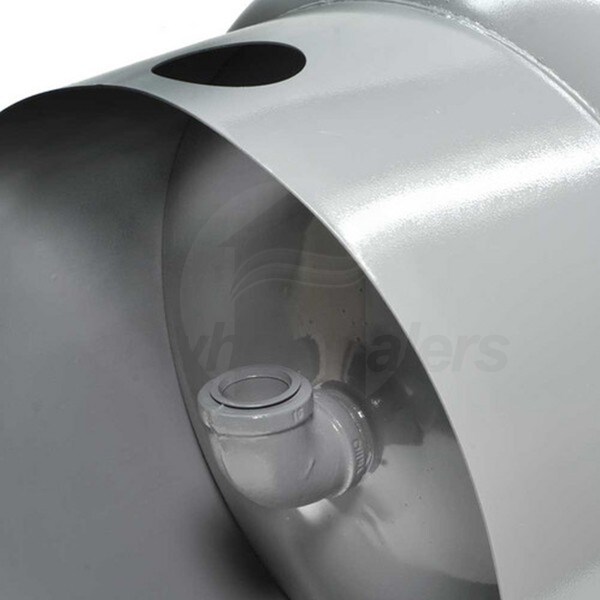

In 1954, Amtrol invented the first expansion tank to control pressure build-up and energy consumption in heating and chilled water systems. More than 50 years later the SX is still the one of the world?s leading floor-standing expansion tanks and is proudly made in the USA! The SX vertical boiler system expansion tank collects the expanded water as system temperatures rise which reduces potentially dangerous pressure build-up. Equipped with a 100 percent tested sealed air cushion, water-tight reservoir, air stem for pre-charge adjustment, and a deep drawn steel tank, the SX is reliable and built to last. The SX-110V is ideal for large residential and light commercial applications and can be used with high output boilers.
  • USA Made
  • All SX thermal expansion tanks are made in the USA.
  • Heavy Duty Tank
  • From the deep drawn steel tank to the water-tight reservoir for expanded water, this thermal expansion tank is constructed for maximum strength and efficient energy consumption.
  • Eliminates Wasted Energy
  • Expanded water caused by thermal expansion is collected by the SX tank which returns the water back to your system which preventing faucet drips, intermittent toilet fill, and pressure relief valve discharge.
  • Protection for Your System
  • SX thermal expansion tanks are designed to protect your water heater, fixtures, and appliances by preventing dangerous pressure build up.
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Boiler Accessories
    UPC
    642031118721
    General Information
    Product Line
    Extrol
    Product Category
    Boiler Accessories
    Connection Type
    NPT
    Performance
    Maximum Operating Temperature
    240 F
    Maximum Operating Pressure
    100 PSI
    Dimensions
    Storage Volume
    62 Gallons
    Maximum Acceptance Volume
    34 Gallons
    Connection Size
    1 1/4 Inches
    Product Diameter
    22 Inches
    Product Height
    47 Inches
    Product Weight
    92 Pounds
    Shipping Height
    47 Inches
    Shipping Width
    22 Inches
    Shipping Length
    22 Inches
    Shipping Weight
    102 Pounds
    Certifications
    Country of Origin
    United States
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    1 Year
