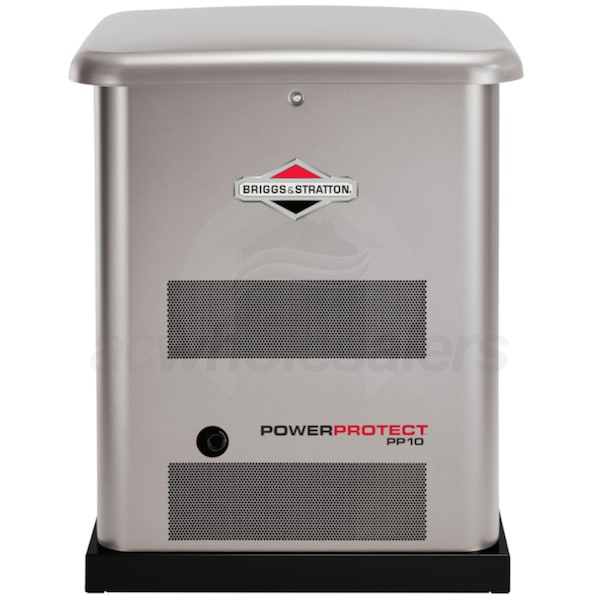

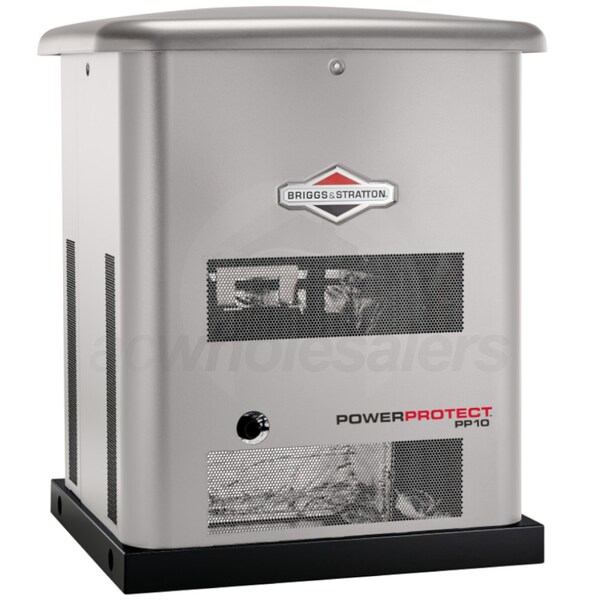

Briggs & Stratton Power Protect™ 10kW Steel Standby Generator System

Model: 040684 Item Number: 115521
Briggs & Stratton 040684
PREVIOUS
NEXT
Briggs & Stratton 040684
Briggs & Stratton 040684
Briggs & Stratton 040684
Briggs & Stratton 040684
Briggs & Stratton 040684
Enlarge Image
Briggs & Stratton 040684
Briggs & Stratton 040684
Briggs & Stratton 040684
Briggs & Stratton 040684
Briggs & Stratton 040684
View All
Product Discontinued
Sorry, this product is no longer available.
Try This Instead
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Product Category
    Generator - Standby
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Briggs & Stratton 040684

  • 10kW (LP) / 8kW (NG) Automatic Standby Generator
  • Automatically starts when utility power is lost
  • Industry Leading 6-Year Warranty
  • Parts, labor & travel covered for 6-Years
  • Compact Size
  • 50% Smaller than competitive generators in its class
  • Advance Power Management (Transfer Switch Sold Separately)
  • Combine with ATS to manage up to two 3-Ton AC units
  • Briggs & Stratton V-Twin Commercial Grade Vanguard® Engine
  • Provides years of long lasting, reliable standby power
  • Streamlined, Space Saving Design
  • Sleek, compact profile blends in next to central AC unit
  • Flexible Placement (Please Verify Local Building Codes)
  • Tested against tough National Fire Protection Agency standards
  • Can be placed as close as 18" from structure
  • Front Air Ventilation
  • Pushes engine exhaust out the front, away from the home
  • Galvanneal Steel Enclosure
  • Automotive rust proofing paint process reduces corrosion
  • Auto Fuel Shutoff & Easier Maintenance
  • Provides added safety during an emergency
  • More service access & user-friendly control panel
  • Includes Schaeffer® Full Synthetic Generator Oil
  • Provides enhanced cold weather protection to -20°F.
  • Includes Battey Charger
  • Requires Starting Battery (Sold Separately)
  • Specifications
    View More

    Specifications

    General Information
    Product Category
    Generator - Standby
    Overview
    Product Category
    Generator - Standby
    Weight
    272 Pounds
    CARB Compliant
    Made in USA
    Yes
    Consumer Warranty
    6 Years
    Product Style
    Standby Generator
    Product Length
    28 Inches
    Product Width
    24.5 Inches
    Product Height
    34.8 Inches
    UPC
    011675406844
    Product Specs
    Voltage
    120/240 Single-Phase
    Frequency
    60 Hertz
    Rated Watts
    10000 Watts
    Fuel Type
    LP/Natural Gas
    NG Power Capacity
    8000 Watts
    LP Power Capacity
    10000 Watts
    NG Fuel Consumption @ 50% Load
    111 ft³/hr
    NG Fuel Consumption @ 100% Load
    169 ft³/hr
    LP Fuel Consumption @ 50% Load
    1.2 gallons/hr
    LP Fuel Consumption @ 100% Load
    1.9 gallons/hr
    Rated Amps
    41.7 Amps
    Decibel Rating @ 7m Learn More
    Decibel Rating @ 7m
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    67
    Hour Meter
    Yes
    Transfer Switch
    Automatic (Not Included)
    Battery
    Not Included (540 CCA)
    Enclosure
    Steel
    Circuit Breaker Size
    50 Amps
    A/C Ton Rating
    3-Tons
    Mounting Pad
    Steel (Included)
    Cooling System
    Air Cooled
    UL Listed
    Yes
    Grade Type
    Emergency
    Wi-Fi Remote Monitoring
    Sold Separately
    Prime Power
    No
    Engine
    Engine Brand
    Briggs and Stratton Vanguard
    Starting System
    12v Auto Start
    Consumer Engine Warranty
    6 Years
    Engine RPM
    3600 RPM
    Low Oil Alert/Shutdown
    Yes
