Buderus G215/3 - 134K BTU - 86.3% AFUE - Hot Water Oil Boiler - Chimney Vent - Includes Beckett AFG Burner

Model: G215/3-AFG Item Number: 72595
Buderus G215/3-AFG
PREVIOUS
NEXT
Buderus G215/3-AFG
Buderus G215/3-AFG
Buderus G215/3-AFG
Enlarge Image
Buderus G215/3-AFG
Buderus G215/3-AFG
Buderus G215/3-AFG
View All
Our Price: $4,213.00
synchrony card icon
$53 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Factory-Direct
Ships in 4-7 Business Days
Buderus G215/3 - 134K BTU - 86.3% AFUE - Hot Water Oil Boiler - Chimney Vent - Includes Beckett AFG Burner
Buderus G215/3 - 134K BTU - 86.3% AFUE - Hot Water Oil Boiler - Chimney Vent - Includes Beckett AFG Burner Model: G215/3-AFG Item Number: 72595
$4,213.00
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Product Category
    Boiler
Bundle Includes 2 items
  • product image
    (1) Buderus G215/3 - 134K BTU - 86.3% AFUE - Hot Water Oil Boiler - Chimney Vent - Burner Sold Separately (G215/3)
  • product image

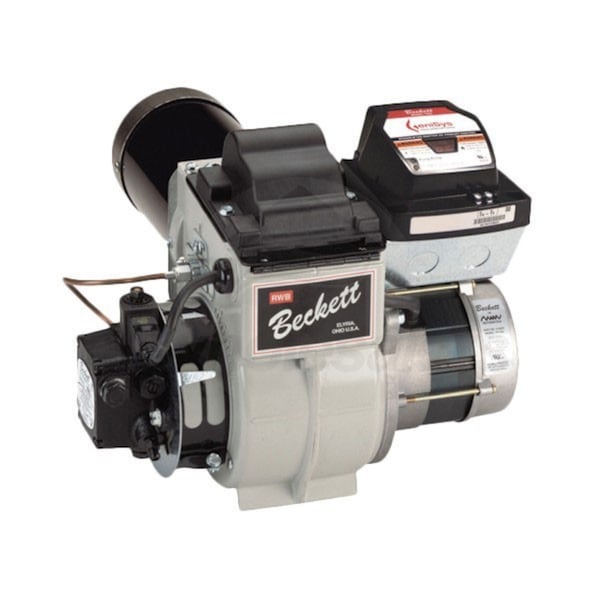

    (1) Buderus Oil Burner Kit for G215/3 - Beckett AFG - 1.1 GPH - Chimney Vent (7738004859)
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Buderus G215/3-AFG

The Buderus G215 oil boiler is a complete home oil heating solution that works equally well in both new construction and renovations of existing buildings. The three pass heat exchanger extracts every last possible BTU of heat energy out of the oil supply, resulting in higher efficiencies across the board. The flexible cast iron included in the boiler's construction, giving the boiler fantastic resistance to thermal shock. Combined with its installation versatility and optimal connection placements, the G215 is a boiler package that will last your home for many years to come.
  • Three-Pass Heat Exchanger
  • The three-pass heat exchanger included with the G215 allows the water to be heated three separate times, allowing a higher water temperature to be maintained throughout the system while improving heating efficiency.
  • Fully Thermally Insulated
  • The G215 boiler is encased by three inches of thermal insulation, keeping generated heat inside the boiler during downtime and preventing heat loss during uptime.
  • Ideal for New Installations or Renovations
  • The G215 boiler is ideal for both new construction and renovations of aged housing due to its adaptive heat exchanger and optimal connection placement.
  • Flexible Cast Iron
  • The heat exchanger of the Buderus G215 boiler is made of patented flexible cast iron, allowing the boiler to resist even the most punishing thermal shock.
  • Product Note
    The boiler has an optional Logamatic R2107 that can be purchased separately as an accessory and be mounted onto the top of the boiler.
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Overview
    Product Category
    Boiler
    General Information
    Product Line
    G215
    Product Category
    Boiler
    Medium Learn More
    Medium
    Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
    Hot Water
    Heat Exchanger Material
    Cast Iron
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Oil
    Combustion Type Learn More
    Combustion Type
    Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
    Conventional
    Vent Type Learn More
    Vent Type
    Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
    Chimney Vent
    DHW Production Learn More
    DHW Production
    DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
    No
    Modulating/Staging Learn More
    Modulating/Staging
    Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
    Staging
    Mount Type
    Floor
    Maximum Altitude
    2000 Feet
    Includes Pump
    Yes
    Assembly Type
    Semi-Packaged
    Performance
    AFUE Learn More
    AFUE
    AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
    86.3 %
    Input Rate
    1.1 GPH
    DOE Heating Capacity Learn More
    DOE Heating Capacity
    Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
    134000 BTU
    Net I=B=R Capacity Learn More
    Net I=B=R Capacity
    I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
    117000 BTU
    Electrical Data
    Voltage
    120 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Flue Connection Size
    6 Inches
    Supply Connection
    1 1/2 Inches
    Return Connection
    1 1/2 Inches
    Certifications
    IBR Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    1 Year
    Heat Exchanger Warranty
    Lifetime Years
    General Information
    Product Line
    G215
    Product Category
    Boiler
    Medium Learn More
    Medium
    Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
    Hot Water
    Heat Exchanger Material
    Cast Iron
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Oil
    Combustion Type Learn More
    Combustion Type
    Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
    Conventional
    Vent Type Learn More
    Vent Type
    Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
    Chimney Vent
    DHW Production Learn More
    DHW Production
    DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
    No
    Modulating/Staging Learn More
    Modulating/Staging
    Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
    Staging
    Mount Type
    Floor
    Maximum Altitude
    2000 Feet
    Assembly Type
    Semi-Packaged
    Includes Pump
    Included with Burner Kit
    Burner Model
    Sold Separately
    Performance
    AFUE Learn More
    AFUE
    AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
    86.3 %
    Input Rate
    1.1 GPH
    DOE Heating Capacity Learn More
    DOE Heating Capacity
    Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
    134000 BTU
    Net I=B=R Capacity Learn More
    Net I=B=R Capacity
    I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
    117000 BTU
    Electrical Data
    Voltage
    120 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Flue Connection Size
    6 Inches
    Supply Connection
    1 1/2 Inches
    Return Connection
    1 1/2 Inches
    Product Height
    34 1/2 Inches
    Product Width
    23 1/2 Inches
    Product Depth
    26 1/4 Inches
    Product Weight
    400 Pounds
    Certifications
    IBR Listed
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    1 Year
    Heat Exchanger Warranty
    Lifetime Years
    Overview
    Product Category
    Boiler
    General Information
    Product Line
    G215
    Product Category
    Boiler
    Vent Type Learn More
    Vent Type
    Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
    Chimney Vent
    Performance
    Maximum Input Capacity Learn More
    Maximum Input Capacity
    The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
    154000 BTU
    Input Rate
    1.1 GPH
    Dimensions
    Product Weight
    15 Pounds
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Overview
    Product Category
    Boiler
