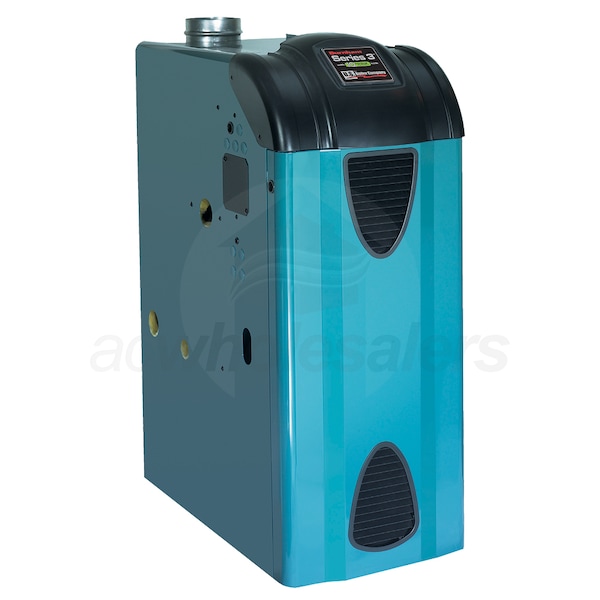

Burnham Series 3 - 117K BTU - 84.0% AFUE - Hot Water Gas Boiler - Chimney Vent

Model: 305BNI-G Item Number: 150648
Burnham 305BNI-G
PREVIOUS
NEXT
Burnham 305BNI-G
Enlarge Image
Our Price: $3,534.63
synchrony card icon
$62 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
In-Stock
Ships Friday, December 27th
Shipping to60601
Burnham Series 3 - 117K BTU - 84.0% AFUE - Hot Water Gas Boiler - Chimney Vent
Burnham Series 3 - 117K BTU - 84.0% AFUE - Hot Water Gas Boiler - Chimney Vent Model: 305BNI-G Item Number: 150648
$3,534.63
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    284 Pounds Learn More
    284 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Line
    Series 3
    Product Category
    Boiler
DOE Heating Capacity
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Burnham 305BNI-G

The Burnham Series 3 boasts a contemporary design paired with advanced energy-saving capabilities. Drawing from the successful features of its award-winning predecessor, the ES2, including the sturdy cast iron heat exchanger and the tough heavy gauge steel base, the Series 3 also comes with the innovative IQ Control System. The IQ Control System seamlessly incorporates an optional energy-efficient control package, reducing fuel consumption by 15-20% according to many studies. Additionally, the Series 3 features versatile chimney venting options, further solidifying it as the ideal choice for countless households.
  • Intelligent Hydronic Control
  • Burnham's IQ system integrates high limit, relay, and ignition functions and includes two customizable switching relays for more heating zones. It also has a thermal purge feature to circulate warm water before firing the boiler.
  • IQ Option Panel
  • The IQ Option Panel allows for the easy installation of additional components, including outdoor reset, LWCO and high limit, using plug-and-play technology.
  • Versatility
  • The boiler offers multiple venting options and can be easily converted for use with propane gas, making it a versatile option for different types of homes.
  • Durable Construction
  • With its cast iron heat exchanger and stainless steel burners, this boiler is built to last and can handle tough conditions.
  • Product Includes
  • (1) Burnham Series 3 Hot Water Boiler
  • (1) Vent Damper w/ Carton
  • (1) Circulator & Gasket Kit
  • (1) Miscellaneous Parts Bag
  • (1) Instruction Envelope
  • Product Note
    A high altitude conversion kit is required for installations made at altitudes above 5,400'.
    Specifications
    View More

    Specifications

    General Information
    Product Line
    Series 3
    Product Category
    Boiler
    Medium Learn More
    Medium
    Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
    Hot Water
    Heat Exchanger Material
    Cast Iron
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Natural Gas
    Combustion Type Learn More
    Combustion Type
    Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
    Conventional
    Vent Type Learn More
    Vent Type
    Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
    Chimney Vent
    DHW Production Learn More
    DHW Production
    DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
    No
    Modulating/Staging Learn More
    Modulating/Staging
    Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
    Staging
    Mount Type
    Floor
    Minimum Altitude
    0 Feet
    Maximum Altitude
    10000 Feet
    Includes Pump
    No
    Assembly Type
    Packaged
    Gas Conversion Kit
    Available
    UPC
    672616692100
    Performance
    AFUE Learn More
    AFUE
    AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
    84 %
    Maximum Input Capacity Learn More
    Maximum Input Capacity
    The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
    140 BTU
    DOE Heating Capacity Learn More
    DOE Heating Capacity
    Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
    117 BTU
    Net I=B=R Capacity Learn More
    Net I=B=R Capacity
    I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
    102 BTU
    Ultra Low NOx Emissions Learn More
    Ultra Low NOx Emissions
    NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx.
    No
    Electrical Data
    Voltage
    120 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Flue Connection Size
    6 Inches
    Gas Connection Size
    1/2 Inch
    Supply Connection
    1 1/4 Inches
    Return Connection
    1 1/4 Inches
    Product Height
    41 Inches
    Product Width
    18 1/2 Inches
    Product Depth
    33 Inches
    Product Weight
    284 Pounds
    Shipping Weight
    353 Pounds
    Certifications
    Country of Origin
    United States
    ETL Listed
    Yes
    Energy Star Listed
    No
    ASME Certified
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    2101373
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    1 Year
    Heat Exchanger Warranty
    Limited Lifetime Years
