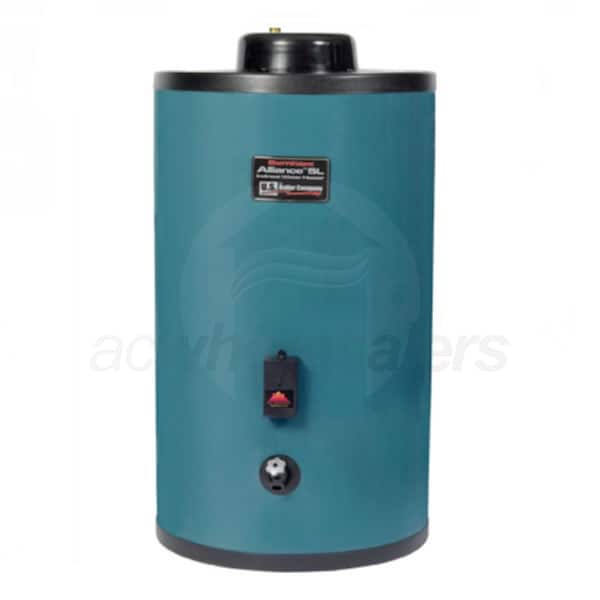

Burnham AL70CSL - 70 Gallon - Indirect Water Heater

Model: AL70CSL Item Number: 96119
Burnham AL70CSL
PREVIOUS
NEXT
Burnham AL70CSL
Enlarge Image
Our Price: $3,334.20
synchrony card icon
$59 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Factory-Direct
Ships in 7-14 Business Days
Burnham AL70CSL - 70 Gallon - Indirect Water Heater
Burnham AL70CSL - 70 Gallon - Indirect Water Heater Model: AL70CSL Item Number: 96119
$3,334.20
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Product Category
    Water Heater - Indirect-Fired
    UPC
    672616778040
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Burnham AL70CSL

Burnham is devoted to pushing the limits of heating technology and efficiency. Their ingenuity is responsible for some of the most efficient products on the market today. The Alliance SL is Burnham's foray into indirect-fired water heating. Using your boiler as a heat source means that the recovery rate of Alliance SL models is superior to that of standard direct-fired or electric water heaters. In addition to efficiency, the Alliance SL is also designed for simplicity. All connections are easily accessible at the top of the tank, where the heat exchanger is mounted. By mounting the heat exchanger here, it may be serviced without draining the tank. Easy to install, easy to service, and energy efficient, the commercial AL70CSL is the perfect water heating solution for any application.
  • Hydrastone Lining
  • The 1/2" Hydrastone tank liner, made from a material similar to cement, protects the tanks from corrosion. When water enters the tank, it's absorbed into the Hydrastone lining and loses it's oxygen, becoming non-corrosive.
  • Burnham Control Compatible
  • Alliance SL indirect-fired water heaters are designed to work with Burnham's proprietary controls systems, IQ and Sage2.3. These systems can prioritize the Alliance SL over space heating and modify the water temperature for ideal recovery rates.
  • Minimal Maintenance
  • With the seamless, no-weld construction of the AL80LT, there is no need for an anode rod, reducing maintenance.
  • Cold Water Diffuser
  • A cold water diffuser in the tank prevents cold water from being introduced to hot water. This improves the output of the water heater.
  • Product Includes
  • (1) Burnham AL70CSL Indirect Water Heater
  • (1) TPI Thermostat Control Module
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Water Heater - Indirect-Fired
    UPC
    672616778040
    General Information
    Type
    Indirect Water Heater
    Product Line
    Alliance SL
    Product Category
    Water Heater - Indirect-Fired
    Medium Learn More
    Medium
    Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
    Hot Water
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Indirect Fired
    Storage Type
    Tank
    Coils Quantity
    1
    Application
    Residential
    Connection Type
    Union
    Material
    Hydrastone-Lined
    Capacity
    70 Gallons
    Performance
    First Hour Delivery Learn More
    First Hour Delivery
    Sometimes called First Hour Rating, this is the number of gallons of hot water the heater can supply per hour when starting with a fully heated tank. The recovery of the water heater depends on your boiler's BTU and boiler output temperature.
    400 Gallons
    Continuous Recovery Rate
    840 Gallons
    Dimensions
    Cold Water Inlet
    1 Inch
    Hot Water Outlet
    1 Inch
    Supply Connection
    1 1/2 Inches
    Return Connection
    1 1/2 Inches
    Product Diameter
    28 Inches
    Product Height
    45 3/4 Inches
    Shipping Weight
    290 Pounds
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    1 Year
    Vessel Warranty
    10 Years
