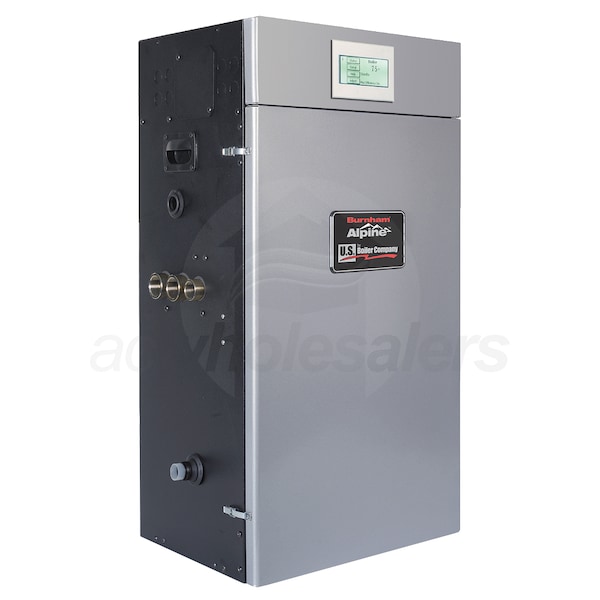

Burnham Alpine - 96K BTU - 95.0% AFUE - Hot Water Gas Boiler - Direct Vent

Model: ALP105BW-4G02 Item Number: 150650
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Burnham ALP105BW-4G02
PREVIOUS
NEXT
Burnham ALP105BW-4G02
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    112 Pounds Learn More
    112 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Line
    Alpine
    Product Category
    Boiler
View More
DOE Heating Capacity
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Burnham ALP105BW-4G02

Burnham is devoted to pushing the limits of heating technology and efficiency. Their ingenuity is responsible for some of the most efficient boilers on the market today. One of the most energy-saving boilers available today is the Alpine condensing boiler from Burnham Company, renowned for its high efficiency. Advanced technologies integrated into each Alpine facilitate real-time monitoring of boiler performance, and fuel consumption is precisely matched with heating demand. Additionally, the Alpine is designed with outside temperature sensing technology, which automatically adjusts the boiler's firing rate based on outdoor air temperature, as well as continuous system safety monitoring for dependable operation over the long-term. The Alpine sets the performance standard for modern boilers!
  • High Efficiency
  • The Series 3 Gas-Fired Water Boiler offers up to 84% AFUE, which means it operates with high efficiency, resulting in cost savings on fuel bills.
  • Multiple Venting Options
  • This boiler comes with multiple venting options, including direct vent, chimney and concentric venting, allowing for versatile installation options and making it suitable for a wide range of applications.
  • Quality Construction
  • The boiler is built with durable cast-iron construction, providing a long-lasting and reliable heating solution for your home or business.
  • Easy to Use
  • The Series 3 Gas-Fired Water Boiler is designed for easy installation, operation, and maintenance. It features an intuitive control panel that allows for quick and easy adjustments to the temperature settings.
  • Wall Bracket Mount Kit
  • Pre-installed hanging bracket, Easy lift wall hanging design.
  • Field Convertible Fuel Source
  • This product can be used with liquid propane or natural gas and is field convertible.
    • Specifications
    View More

    Specifications

    General Information
    Product Line
    Alpine
    Product Category
    Boiler
    Medium Learn More
    Medium
    Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
    Hot Water
    Heat Exchanger Material
    Stainless Steel
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Natural or Propane Gas
    Combustion Type Learn More
    Combustion Type
    Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
    Condensing
    Vent Type Learn More
    Vent Type
    Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
    Direct Vent
    DHW Production Learn More
    DHW Production
    DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
    Yes
    Modulating/Staging Learn More
    Modulating/Staging
    Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
    Modulating
    Mount Type
    Wall
    Minimum Altitude
    0 Feet
    Maximum Altitude
    2000 Feet
    Includes Pump
    Yes
    Assembly Type
    Packaged
    Gas Conversion Kit
    Included
    UPC
    672616734442
    Performance
    AFUE Learn More
    AFUE
    AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
    95 %
    Maximum Input Capacity Learn More
    Maximum Input Capacity
    The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
    105 BTU
    Minimum Input Capacity
    21 BTU
    Input Rate
    1.2 GPH
    DOE Heating Capacity Learn More
    DOE Heating Capacity
    Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
    96 BTU
    Net I=B=R Capacity Learn More
    Net I=B=R Capacity
    I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
    83 BTU
    Ultra Low NOx Emissions Learn More
    Ultra Low NOx Emissions
    NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx.
    No
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Flue Connection Size
    3 Inches
    Gas Connection Size
    1/2 Inch
    Supply Connection
    3/4 Inch
    Return Connection
    1 Inch
    Product Height
    32 3/16 Inches
    Product Width
    16 11/16 Inches
    Product Depth
    14 Inches
    Product Weight
    112 Pounds
    Shipping Weight
    155 Pounds
    Certifications
    Country of Origin
    United States
    ETL Listed
    Yes
    Energy Star Listed
    Yes
    ASME Certified
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    5625726
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
