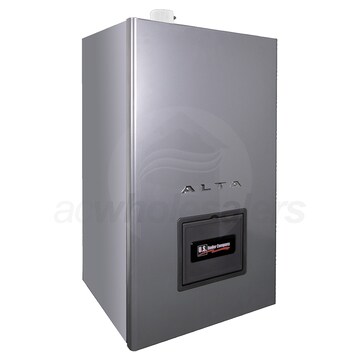

Burnham ALTA - 180K BTU - 95% AFUE - Hot Water Gas Boiler - Direct Vent

Model: ALTA-180-1G02 Item Number: 124930
Burnham ALTA-180-1G02
PREVIOUS
NEXT
Burnham ALTA-180-1G02
Burnham ALTA-180-1G02
Burnham ALTA-180-1G02
Enlarge Image
Burnham ALTA-180-1G02
Burnham ALTA-180-1G02
Burnham ALTA-180-1G02
View All
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    103 Pounds Learn More
    103 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Line
    Alta
    Product Category
    Boiler
DOE Heating Capacity
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Burnham ALTA-180-1G02

The Burnham Alta's simplicity is unmatched in heating technology and efficiency. Their ingenuity is responsible for some of the most efficient boilers on the market today. The Alta high efficiency gas boiler is easily the most advanced boiler ever made. By reusing heat contained in the exiting flue gasses and adjusting firing based on current needs, the Alta can achieve 95 percent efficiency. The Alta's advanced technology also makes installation and operation of your boiler easier than ever. Easy lift, wall hanging design, no-touch combustion setup, and interface prompts all contribute to its ease of use. Getting the most out of your energy dollar doesn't have to be a complicated affair, and Burnham proves it with the Alta.
  • Heat Exchanger
  • 316L Stainless Steel Heat Exchanger, Corrosion resistant.
  • Sealed Combustion Appliance
  • 10:1 Turndown, Direct vent.
  • Boiler Circulator
  • Grundfos 26-99
  • Universal Vent Connection for CPVC, Polypropylene
  • 3 in 1 Air Vent Adapters with Test Port.
  • Wall Bracket Mount Kit
  • Pre-installed hanging bracket, Easy lift wall hanging design.
  • Product Note
    This product can be used with liquid propane or natural gas and is field convertible.
    Specifications
    View More

    Specifications

    General Information
    Product Line
    Alta
    Product Category
    Boiler
    Medium Learn More
    Medium
    Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
    Hot Water
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Natural or Propane Gas
    Combustion Type Learn More
    Combustion Type
    Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
    Adaptive
    Vent Type Learn More
    Vent Type
    Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
    Direct Vent
    DHW Production Learn More
    DHW Production
    DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
    No
    Modulating/Staging Learn More
    Modulating/Staging
    Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
    Modulating
    Mount Type
    Wall
    Minimum Altitude
    0 Feet
    Maximum Altitude
    2000 Feet
    Includes Pump
    Yes
    Assembly Type
    Packaged
    Gas Conversion Kit
    Included
    UPC
    672616844301
    Performance
    AFUE Learn More
    AFUE
    AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
    95 %
    Maximum Input Capacity Learn More
    Maximum Input Capacity
    The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
    180000 BTU
    Minimum Input Capacity
    20000 BTU
    DOE Heating Capacity Learn More
    DOE Heating Capacity
    Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
    169000 BTU
    Net I=B=R Capacity Learn More
    Net I=B=R Capacity
    I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
    147000 BTU
    Ultra Low NOx Emissions Learn More
    Ultra Low NOx Emissions
    NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx.
    No
    Turndown Ratio
    10:1
    Electrical Data
    Voltage
    120 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Flue Connection Size
    2 Inches
    Supply Connection
    1 1/4 Inches
    Return Connection
    1 1/4 Inches
    Product Height
    30 Inches
    Product Width
    18 Inches
    Product Depth
    20 19/48 Inches
    Product Weight
    103 Pounds
    Shipping Weight
    132 Pounds
    Certifications
    Country of Origin
    United States
    ETL Listed
    Yes
    Energy Star Listed
    Yes
    ASME Certified
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    207178441
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
    Heat Exchanger Warranty
    12 Years
