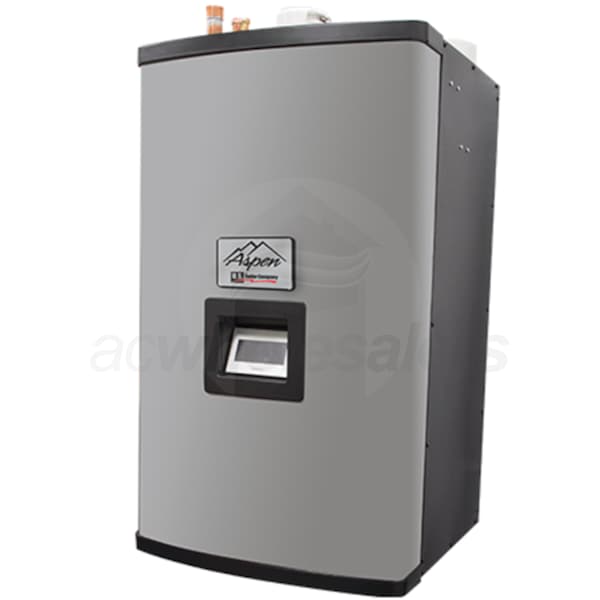

Burnham Aspen - 189K BTU - 95% AFUE - Hot Water Gas Boiler - Direct Vent

Model: ASPN-205 Item Number: 82246
Burnham ASPN-205
PREVIOUS
NEXT
Burnham ASPN-205
Enlarge Image
Our Price: $6,042.84
synchrony card icon
$76 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
In-Stock
Ships Friday, November 22nd
Shipping to60601
Burnham Aspen - 189K BTU - 95% AFUE - Hot Water Gas Boiler - Direct Vent
Burnham Aspen - 189K BTU - 95% AFUE - Hot Water Gas Boiler - Direct Vent Model: ASPN-205 Item Number: 82246
$6,042.84
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Product Category
    Boiler
    UPC
    672616762308
System BTU/h
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Burnham ASPN-205

The Burnham Aspen is a high efficiency condensing boiler. With a 10:1 turn down ratio and a variable speed combustion blower, the Aspen is incredibly efficient, reaching an AFUE rating of 96%. The Aspen line also introduces the Sage2.3 boiler control system with easy setup and high performance right out of the box.
  • Sage2.3 Control System
  • The Sage2.3 system has a simple touchscreen interface built into the boiler. The system provides step-by-step instructions for changing settings and running system diagnostics, making the Aspen one of the most user friendly boilers on the market.
  • Multiple Installation Options
  • The Aspen comes with a built-in wall mount allowing for flexibility in almost any installation situation. The Aspen's relatively small size and weight allow it to fit in nearly any space.
  • Outdoor Reset
  • The Aspen increases efficiency by including an outdoor sensor, allowing the boiler to lower water temperatures when the outdoor temperatures are warmer.
  • High Altitude
  • The Aspen is ready for higher altitudes with minimal de-rating. This reduces the costs of oversizing a boiler as the Aspen is easily field adjustable.
  • Product Includes
  • (1) Burnham ASPN-205A-6L00M Hot Water Gas Boiler
  • (1) Wall Mounting Kit
  • (1) Outdoor Reset and Sensor
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Boiler
    UPC
    672616762308
    General Information
    Product Line
    Aspen
    Product Category
    Boiler
    Medium Learn More
    Medium
    Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
    Hot Water
    Heat Exchanger Material
    Stainless Steel
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Natural Gas
    Combustion Type Learn More
    Combustion Type
    Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
    Condensing
    Vent Type Learn More
    Vent Type
    Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
    Direct Vent
    DHW Production Learn More
    DHW Production
    DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
    No
    Modulating/Staging Learn More
    Modulating/Staging
    Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
    Modulating
    Mount Type
    Wall
    Minimum Altitude
    0 Feet
    Maximum Altitude
    10100 Feet
    Assembly Type
    Packaged
    Includes Pump
    No
    Performance
    AFUE Learn More
    AFUE
    AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
    95 %
    Maximum Input Capacity Learn More
    Maximum Input Capacity
    The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
    205000 BTU
    Minimum Input Capacity
    20500 BTU
    DOE Heating Capacity Learn More
    DOE Heating Capacity
    Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
    189000 BTU
    Net I=B=R Capacity Learn More
    Net I=B=R Capacity
    I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
    164000 BTU
    Ultra Low NOx Emissions Learn More
    Ultra Low NOx Emissions
    NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx.
    Yes
    Turndown Ratio
    10:1
    Electrical Data
    Voltage
    120 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    1/2 Inch
    Flue Connection Size
    3 Inches
    Supply Connection
    1 Inch
    Return Connection
    1 1/4 Inches
    Product Height
    33 5/16 Inches
    Product Width
    21 Inches
    Product Depth
    19 7/8 Inches
    Shipping Weight
    175 Pounds
    Certifications
    ETL Listed
    Yes
    Energy Star Listed
    Yes
    ASME Certified
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    10337171
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
    Heat Exchanger Warranty
    7 Years
