Burnham MST629 - 151K BTU - 86.0% AFUE - Steam Oil Boiler - Chimney Vent

Model: MST629SL-HB Item Number: 37900

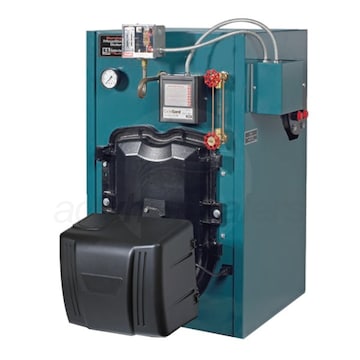

Burnham MST629SL-HB
PREVIOUS
NEXT
Burnham MST629SL-HB
Enlarge Image
Our Price: $5,172.00
synchrony card icon
$65 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Factory-Direct
Ships in 7-14 Business Days
Burnham MST629 - 151K BTU - 86.0% AFUE - Steam Oil Boiler - Chimney Vent
Burnham MST629 - 151K BTU - 86.0% AFUE - Steam Oil Boiler - Chimney Vent Model: MST629SL-HB Item Number: 37900
$5,172.00
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    881 Pounds Learn More
    881 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Boiler
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Burnham MST629SL-HB

Burnham is devoted to pushing the limits of heating technology and efficiency. Their ingenuity is responsible for some of the most efficient boilers on the market today. The MegaSteam line is illustrative of Burnham's inventiveness. By including a three-pass heat-exchanger and thorough insulation, Burnham has produced an oil-fired steam boiler that is 86% efficient. Energy efficiency is not the only standout feature of the MST629SL-HB. It is also remarkably consistent and easy to install. When it comes to reliability, Burnham puts their money where their mouth is by including a five year corrosion warranty for the boiler sections. If your home is heated by oil and with steam, you can't go wrong with a MegaSteam.
  • Stable Water Line, Dry Steam
  • The entire heat transfer surface of the MegaSteam is located below the water line. This discourages corrosion in the tank, improves efficiency, and helps to produce steam that is up to 99% dry. Dry steam causes less wear to your pipes and fittings.
  • Superior Accessibility
  • The MST629SL-HB is designed for ease of installation and maintenance. The burner door is reversible and the rear plates may be removed easily for access to the flue passages.
  • Simple Venting
  • MegaSteam boilers include a barometric draft regulator and stainless steel flue baffles. These components provide simple, safe, and efficient natural draft venting for your boiler.
  • Durable Construction
  • Cast-iron construction of the boiler sections contributes to the incredible longevity of MegaSteam models. The heat exchanger is also made of cast iron, which allows it to accept lower return water temperatures.
  • Product Includes
  • (1) Burnham MST629SL-HB Steam Boiler
  • (1) Beckett AFG Burner
  • (1) Burnham 8116289 7" Draft Regulator
  • (1) Instruction Envelope
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Boiler
    General Information
    Product Line
    MegaSteam
    Product Category
    Boiler
    Medium Learn More
    Medium
    Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
    Steam
    Heat Exchanger Material
    Cast Iron
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Oil
    Combustion Type Learn More
    Combustion Type
    Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
    Conventional
    Vent Type Learn More
    Vent Type
    Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
    Chimney Vent
    DHW Production Learn More
    DHW Production
    DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
    No
    Modulating/Staging Learn More
    Modulating/Staging
    Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
    Staging
    Mount Type
    Floor
    Maximum Altitude
    2000 Feet
    Includes Pump
    No
    Assembly Type
    Packaged
    Burner Model
    Beckett AFG
    Performance
    AFUE Learn More
    AFUE
    AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
    86 %
    Input Rate
    1.65 GPH
    DOE Heating Capacity Learn More
    DOE Heating Capacity
    Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
    201000 BTU
    Net I=B=R Capacity Learn More
    Net I=B=R Capacity
    I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
    151000 BTU
    Electrical Data
    Voltage
    120 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Flue Connection Size
    7 Inches
    Supply Connection
    2 Inches
    Return Connection
    2 Inches
    Product Height
    35 15/16 Inches
    Product Width
    22 5/8 Inches
    Product Depth
    22 5/8 Inches
    Product Weight
    881 Pounds
    Certifications
    Country of Origin
    United States
    ETL Listed
    Yes
    ASME Certified
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    2101346
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    1 Year
    Heat Exchanger Warranty
    10 Years
