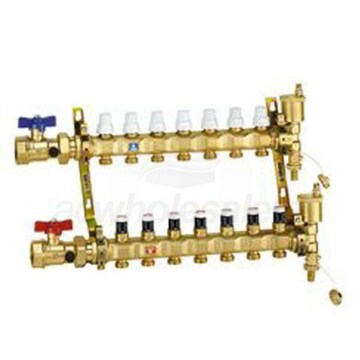

Caleffi TwistFlow Pre-assembled Manifold Assembly - 1" Inlet Ball Valves - 11 outlets with Flow Gauge

Model: 6686M5S1A Item Number: 24971
Caleffi 6686M5S1A
PREVIOUS
NEXT
Caleffi 6686M5S1A
Enlarge Image
Our Price: $933.82
synchrony card icon
$156 / Month
Suggested monthly payments with 6 month financing.
Factory-Direct
Ships in 4-7 Business Days
Caleffi TwistFlow Pre-assembled Manifold Assembly - 1
Caleffi TwistFlow Pre-assembled Manifold Assembly - 1" Inlet Ball Valves - 11 outlets with Flow Gauge Model: 6686M5S1A Item Number: 24971
$933.82
Factory-Direct
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    29 Pounds Learn More
    29 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Boiler Accessories
Features
View More

Features

Overview for Caleffi 6686M5S1A

The Caleffi TwistFlow Pre-assembled Manifold Assembly is designed to optimally distribute the heating fluid in floor heating system circuits and ultimately improve the control of heat emission from the panels. The manifold ensures that the flow to each circuit is regulated precisely and also control the shut-off, venting and automatic removal of air from the system. The Caleffi TwistFlow Pre-assembled Manifold Assembly has a CV of 1.23 and 11 outlets.
  • Caleffi 6686M5S1A Features
  • Improves control of heat emission
  • Precision regulation
  • Connection Type: NPT
  • Connection Size: 1 Inches
  • Caleffi TwistFlow Pre-assembled Manifold Assembly Warranty:
  • Parts: 2 Year
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Boiler Accessories
    General Information
    Product Line
    TwistFlow
    Product Category
    Complete Manifold Kits
    Number of Circuits
    11
    Connection Type
    NPT
    Material
    Brass
    Performance
    CV Value
    1.23
    Minimum Operating Temperature
    32 F
    Maximum Operating Temperature
    180 F
    Dimensions
    Connection Size
    1 Inch
    Product Weight
    29 Pounds
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    2 Years
