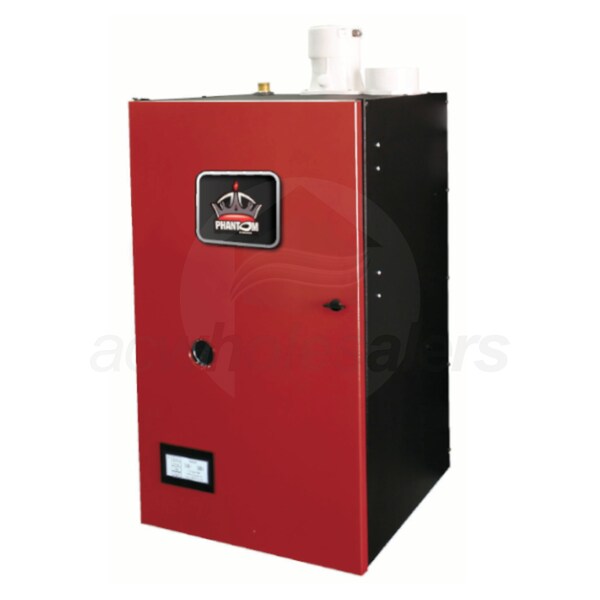

Crown Boiler Phantom - 142K BTU - 95% AFUE - Combi Gas Boiler - Direct Vent w/ Burnham NG to LP - Gas Conversion Kit - For 120-150K BTU K2WT Boilers

Model: PHNTM150CNT1SU-LP Item Number: 166321
Crown Boiler Co. PHNTM150CNT1SU-LP
Crown Boiler Co. PHNTM150CNT1SU-LP
Crown Boiler Co. PHNTM150CNT1SU-LP
Enlarge Image
Crown Boiler Co. PHNTM150CNT1SU-LP
Crown Boiler Co. PHNTM150CNT1SU-LP
View All
Originally $3,181.00, you save 46%
Our Price: $1,729.00
synchrony card icon
$289 / Month
Suggested monthly payments with 6 month financing.
Factory-Direct
Ships in 7-14 Business Days
Crown Boiler Phantom - 142K BTU - 95% AFUE - Combi Gas Boiler - Direct Vent w/ Burnham NG to LP - Gas Conversion Kit - For 120-150K BTU K2WT Boilers
Crown Boiler Phantom - 142K BTU - 95% AFUE - Combi Gas Boiler - Direct Vent w/ Burnham NG to LP - Gas Conversion Kit - For 120-150K BTU K2WT Boilers Model: PHNTM150CNT1SU-LP Item Number: 166321
$1,729.00
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Product Category
    Boiler
Bundle Includes 2 items
  • product image
    (1) Crown Boiler Phantom - 142K BTU - 95% AFUE - Combi Gas Boiler - Direct Vent (PHNTM150CNT1SU)
  • product image
    (1) Burnham NG to LP - Gas Conversion Kit - For 120-150K BTU K2WT Boilers (107874-01)
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Crown Boiler Co. PHNTM150CNT1SU-LP

The Phantom combi boiler line from Crown is a high efficiency condensing boiler with domestic hot water production that comes with a multitude of features to set it apart from the competition. At its core, high efficiency condensing operation with AFUE levels up to 95% dramatically reduce your home's heating costs. When you add in stock features such as a Honeywell SOLA touch screen control and a modulating burner with a 10-to-1 turn down ratio, the boiler becomes an all-inclusive efficiency powerhouse more than worthy of a spot on your utility room's wall.
  • High Efficiency Heating and Hot Water
  • The Crown Phantom Combi boiler combines space heating and domestic hot water production while maintaining an impressive efficiency rating of 95% AFUE with a 10:1 turndown ratio.
  • Condensing Boiler Technology
  • The Phantom boiler uses condensing technology, allowing the boiler to recover heat energy in the exhaust gas that might otherwise be expelled from your home. This is what allows the boiler to reach such high levels of efficiency.
  • 10-to-1 Turndown Ratio
  • The modulating burner used by the Phantom condensing boiler can adjust its firing rate down to as low as one tenth of its maximum firing rate in response to heating requirements, further increasing the efficiency of your boiler.
  • Included Honeywell SOLA Control
  • Honeywell's SOLA control is included stock with the Phantom. The SOLA allows you to program everything from firing rate to altitude of operation, adjusting your boiler to perfectly fit your home and its environment.
  • Outdoor Reset and Sensor
  • The Phantom comes with an outdoor reset and sensor, giving the included SOLA control all the information it needs to adjust boiler operation in relation to the current weather conditions.
  • Stainless Steel Heat Exchanger
  • The water tube heat exchanger is made from high grade stainless steel, giving your boiler's internals as much corrosion resistance as possible straight out of the factory while maximizing its longevity.
  • Burnham NG to LP - Gas Conversion Kit (Model: 107874-01)
  • For 120-150K BTU K2WT Boilers
  • Kit is for converting Burnham 120-150K BTU K2WT Boilers from natural gas to liquid propane
  • Bundle Includes 2 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Overview
    Product Category
    Boiler
    General Information
    Product Line
    Phantom
    Product Category
    Boiler
    Medium Learn More
    Medium
    Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
    Hot Water
    Heat Exchanger Material
    Stainless Steel
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Natural Gas
    Combustion Type Learn More
    Combustion Type
    Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
    Condensing
    Vent Type Learn More
    Vent Type
    Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
    Direct Vent
    DHW Production Learn More
    DHW Production
    DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
    Yes
    Modulating/Staging Learn More
    Modulating/Staging
    Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
    Modulating
    Mount Type
    Wall
    Minimum Altitude
    0 Feet
    Maximum Altitude
    2000 Feet
    Assembly Type
    Packaged
    Includes Pump
    Yes
    Gas Conversion Kit
    Available
    Performance
    AFUE Learn More
    AFUE
    AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
    95 %
    Maximum Input Capacity Learn More
    Maximum Input Capacity
    The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
    150000 BTU
    Minimum Input Capacity
    15000 BTU
    DOE Heating Capacity Learn More
    DOE Heating Capacity
    Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
    142000 BTU
    Net I=B=R Capacity Learn More
    Net I=B=R Capacity
    I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
    123000 BTU
    Ultra Low NOx Emissions Learn More
    Ultra Low NOx Emissions
    NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx.
    Yes
    Turndown Ratio
    10:1
    Electrical Data
    Voltage
    120 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    1/2 Inch
    Flue Connection Size
    3 Inches
    Cold Water Inlet
    3/4 Inch
    Hot Water Outlet
    3/4 Inch
    Supply Connection
    1 Inch
    Return Connection
    1 Inch
    Product Height
    30 Inches
    Product Width
    17 Inches
    Product Depth
    19 Inches
    Shipping Weight
    169 Pounds
    Certifications
    Country of Origin
    United States
    Energy Star Listed
    Yes
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    10347185
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
    Heat Exchanger Warranty
    12 Years
    General Information
    Product Line
    Phantom
    Product Category
    Boiler
    Medium Learn More
    Medium
    Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
    Hot Water
    Heat Exchanger Material
    Stainless Steel
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Natural Gas
    Combustion Type Learn More
    Combustion Type
    Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
    Condensing
    Vent Type Learn More
    Vent Type
    Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
    Direct Vent
    DHW Production Learn More
    DHW Production
    DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
    Yes
    Modulating/Staging Learn More
    Modulating/Staging
    Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
    Modulating
    Mount Type
    Wall
    Minimum Altitude
    0 Feet
    Maximum Altitude
    2000 Feet
    Assembly Type
    Packaged
    Includes Pump
    Yes
    Gas Conversion Kit
    Available
    Performance
    AFUE Learn More
    AFUE
    AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
    95 %
    Maximum Input Capacity Learn More
    Maximum Input Capacity
    The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
    150000 BTU
    Minimum Input Capacity
    15000 BTU
    DOE Heating Capacity Learn More
    DOE Heating Capacity
    Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
    142000 BTU
    Net I=B=R Capacity Learn More
    Net I=B=R Capacity
    I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
    123000 BTU
    Ultra Low NOx Emissions Learn More
    Ultra Low NOx Emissions
    NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx.
    Yes
    Turndown Ratio
    10:1
    Electrical Data
    Voltage
    120 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Flue Connection Size
    3 Inches
    Gas Connection Size
    1/2 Inch
    Cold Water Inlet
    3/4 Inch
    Hot Water Outlet
    3/4 Inch
    Supply Connection
    1 Inch
    Return Connection
    1 Inch
    Product Height
    30 Inches
    Product Width
    17 Inches
    Product Depth
    19 Inches
    Shipping Weight
    169 Pounds
    Certifications
    Country of Origin
    United States
    Energy Star Listed
    Yes
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    10347185
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Heat Exchanger Warranty
    12 Years
    Overview
    Product Category
    Boiler
    General Information
    Product Line
    K2
    Product Category
    Boiler
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    NG to LP
    Dimensions
    Product Weight
    5 Pounds
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    1 Year
    Overview
    Product Category
    Boiler
