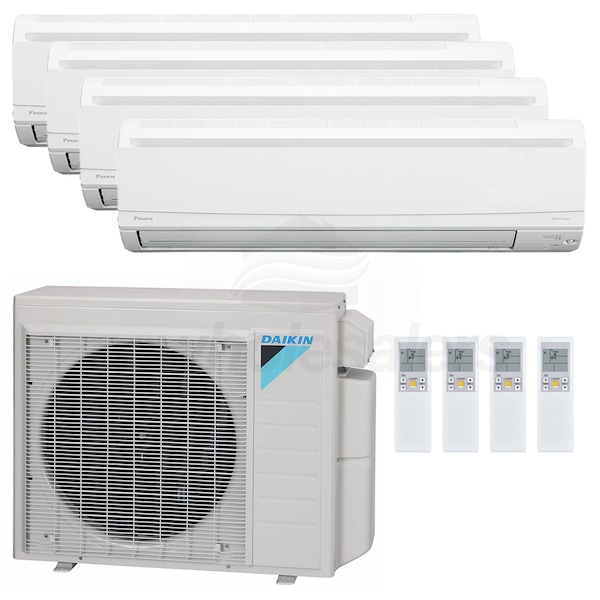

Daikin MXL Wall Mounted 4-Zone System - 36,000 BTU Outdoor - 7k + 7k + 9k + 12k Indoor - 20.0 SEER2

Model: 4MXL36WVJU9 2-CTXS07 FTXS09 FTXS12 Item Number: 149306
Daikin 4MXL36WVJU9 2-CTXS07 FTXS09 FTXS12
PREVIOUS
NEXT
Daikin 4MXL36WVJU9 2-CTXS07 FTXS09 FTXS12
Daikin 4MXL36WVJU9 2-CTXS07 FTXS09 FTXS12
Daikin 4MXL36WVJU9 2-CTXS07 FTXS09 FTXS12
Enlarge Image
Daikin 4MXL36WVJU9 2-CTXS07 FTXS09 FTXS12
Daikin 4MXL36WVJU9 2-CTXS07 FTXS09 FTXS12
Daikin 4MXL36WVJU9 2-CTXS07 FTXS09 FTXS12
View All
Our Price: $7,918.00
synchrony card icon
$99 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
In-Stock
Ships in 2-5 Business Days
Shipping to60601
Factory items ship direct from the manufacturer
Shipping times vary
Daikin MXL Wall Mounted 4-Zone System - 36,000 BTU Outdoor - 7k + 7k + 9k + 12k Indoor - 20.0 SEER2
Daikin MXL Wall Mounted 4-Zone System - 36,000 BTU Outdoor - 7k + 7k + 9k + 12k Indoor - 20.0 SEER2 Model: 4MXL36WVJU9 2-CTXS07 FTXS09 FTXS12 Item Number: 149306
$7,918.00
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    295 Pounds Learn More
    295 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Wall Mounted
    Product Line
    MXL
Bundle Includes 5 items
  • product image
    (1) Daikin - 36k BTU - Outdoor Condenser - Multi Zone (4MXL36WVJU9)
  • product image
    (1) Daikin - 12k BTU - Air Handler Wall Mounted - Multi or Single Zone (FTXS12WVJU9)
  • product image
    (1) Daikin - 9k BTU - Air Handler Wall Mounted - Multi or Single Zone (FTXS09WVJU9)
Outdoor Unit BTU/h
Select Attribute
Indoor Unit Sizes
Learn More
Indoor Unit Sizes
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. For example (9k + 12k) means the system includes a 9k BTU unit and a 12k BTU unit.
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Daikin 4MXL36WVJU9 2-CTXS07 FTXS09 FTXS12

Daikin has firmly established themselves as a world leader in heating and cooling equipment manufacturing, and their ductless systems are no exception. With indoor unit options consisting of streamlined wall mount units, built-in slim duct units, or a combination of both, multi-split systems offer over 1,000 possible connection combinations, creating a flexible, powerful and energy efficient system. Integrated with an inverter variable speed compressor, systems deliver the capacity required to maintain desired room conditions, typically reducing energy consumption by 30% compared to traditional fixed speed systems. This technology minimizes temperature fluctuations and provides continuous cooling and heating comfort with maximum energy savings.
  • Intelligent Eye Energy Saving Mode
  • Daikin indoor units have built-in motion sensing technology that transitions the system into an energy-saving mode when no movement has been detected indoors for 20 minutes. Once someone enters the room, the system switches back to full operation.
  • Included Wireless Control
  • The included wireless control allows you to control the temperature of your room while never leaving the comfort of your favorite recliner.
  • Built-In Advanced Filtration System
  • Daikin mini splits do more for your home's comfort level than control its temperature. An advanced microbial filtration system is installed in the indoor unit, allowing the mini split to purify your home's air as well as heating or cooling it.
  • Enhanced Capacity Condenser
  • The Aurora line is designed to operate at a higher capacity than its standard alternative. These units are designed to operate in colder climates, down to -13°F with the available drain pan heater and with up to 100% heating capacity down to 5°F standard.
  • Energy Efficient
  • The Daikin Aurora condensers are highly efficient all year round and reduce operating costs compared to conventional systems.
  • Smart Inverter Technology
  • The variable-speed inverter compressor helps to minimize temperature fluctuations along with providing continuous cooling and heating comfort.
  • Optimized Drain Pan
  • The newly designed drain pan helps prevent condensate from freezing and allows for effective drainage. In some cases, the drain pan eliminates the need for a drain pan heater.
  • Quiet Operation
  • Able to reduce sound levels by up to three decibels, the Daikin Aurora provides quieter operation when needed.
  • Auto-Restart Mode
  • The Daikin Aurora condensers memorizes operation mode, airflow and temperature settings. Should you lose power, the condenser will automatically return to the same operating conditions when power returns.
  • Recommended line set sizes for indoor unit connectivity:
  • CTXS07WVJU9: 1/4" x 3/8" Line Set (Qty 2)
  • FTXS09WVJU9: 1/4" x 3/8" Line Set
  • FTXS12WVJU9: 1/4" x 3/8" Line Set
  • Product Note
    This product requires the following accessories for installation:Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.Adding these accessories to your order will provide a complete, ready-to-install mini split system. All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
    Bundle Includes 5 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    General Information
    Type
    Wall Mounted
    Product Line
    MXL
    Product Category
    Mini Split Heat Pump System
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Number of Zones Learn More
    Number of Zones
    A zone is a room or area within a building that has its own temperature control.
    4
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    7 + 7 + 9 + 12
    Outdoor Unit Size
    36000 BTU
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Performance
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -13 F
    Minimum Outdoor Temperature for Cooling
    14 F
    SEER2 Learn More
    SEER2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
    20.0
    EER2 Learn More
    EER2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. EER2 (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER2, the more efficient the system.
    11.7
    HSPF2 Learn More
    HSPF2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. HSPF2 (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF2, the more efficient the system.
    9.0
    Dimensions
    Product Weight
    295 Pounds
    Shipping Weight
    350 Pounds
    Certifications
    Energy Star Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    210722666
    General Information
    Type
    Outdoor Condenser
    Product Line
    Aurora
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Maximum Number of Zones
    4
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Performance
    Cooling BTU
    36000
    Cooling Capacity
    36000 BTU
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    55 dB
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -13 F
    Minimum Outdoor Temperature for Cooling
    14 F
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    34.9 Amps
    Recommended Breaker Size
    27 Amps
    Dimensions
    Maximum Line Length
    230 Feet
    Condensate Drain Size
    1 Inch
    Line Set A Liquid Connection
    1/4 Inch
    Line Set A Gas Connection
    3/8 Inch
    Line Set B Liquid Connection
    1/4 Inch
    Line Set B Gas Connection
    1/2 Inch
    Line Set C Liquid Connection
    1/4 Inch
    Line Set C Gas Connection
    1/2 Inch
    Line Set D Liquid Connection
    1/4 Inch
    Line Set D Gas Connection
    5/8 Inch
    Product Height
    34 1/4 Inches
    Product Width
    43 5/16 Inches
    Product Depth
    18 1/8 Inches
    Product Weight
    214 Pounds
    Shipping Weight
    229 Pounds
    Certifications
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    General Information
    Type
    Wall Mounted
    Product Line
    FTXS
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Remote Control
    Wireless
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    12
    Installation Location
    Indoor
    Performance
    Cooling BTU
    12000
    Cooling Capacity
    12000 BTU
    Maximum Air Flow
    403 CFM
    Minimum Air Flow
    155 CFM
    Minimum Sound Level
    23 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    45 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    1/4 Inch
    Liquid Connection Size
    3/8 Inch
    Condensate Drain Size
    5/8 Inch
    Product Height
    11 5/8 Inches
    Product Width
    31 1/2 Inches
    Product Depth
    8 7/16 Inches
    Product Weight
    21 Pounds
    Shipping Weight
    31 Pounds
    Certifications
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    General Information
    Type
    Wall Mounted
    Product Line
    FTXS
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Remote Control
    Wireless
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    9
    Installation Location
    Indoor
    Performance
    Cooling BTU
    9000
    Cooling Capacity
    9000 BTU
    Maximum Air Flow
    381 CFM
    Minimum Air Flow
    145 CFM
    Minimum Sound Level
    22 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    41 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    1/4 Inch
    Liquid Connection Size
    3/8 Inch
    Condensate Drain Size
    5/8 Inch
    Product Height
    11 5/8 Inches
    Product Width
    31 1/2 Inches
    Product Depth
    8 7/16 Inches
    Product Weight
    20 Pounds
    Shipping Weight
    30 Pounds
    Certifications
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    General Information
    Type
    Wall Mounted
    Product Line
    FTXS
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Remote Control
    Wireless
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    7
    Installation Location
    Indoor
    Performance
    Cooling BTU
    7000
    Cooling Capacity
    7000 BTU
    Maximum Air Flow
    332 CFM
    Minimum Air Flow
    145 CFM
    Minimum Sound Level
    22 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    38 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    1/4 Inch
    Liquid Connection Size
    3/8 Inch
    Condensate Drain Size
    5/8 Inch
    Product Height
    11 5/8 Inches
    Product Width
    31 1/2 Inches
    Product Depth
    8 7/16 Inches
    Product Weight
    20 Pounds
    Shipping Weight
    30 Pounds
    Certifications
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Reviews
    View More

    Reviews

    Do You Own This Product?

    Give us your opinion on this product and help any future buyer's make an informed decision.

    Product Q&A
    View More

    Product Q&A

    Be the first to ask a question.

    Whether it's a general or technical question ACWholesalers can help. Our customer service team is backed by years of experience so you can have confidence knowing that you'll be getting an insightful response.

    Manuals
    View More

    Share
    ×
    Daikin MXL Wall Mounted 4-Zone System - 36,000 BTU Outdoor - 7k + 7k + 9k + 12k Indoor - 20.0 SEER2
    Daikin 4MXL36WVJU9 2-CTXS07 FTXS09 FTXS12
    Loading
    Daikin 4MXL36WVJU9 2-CTXS07 FTXS09 FTXS12
    Daikin 4MXL36WVJU9 2-CTXS07 FTXS09 FTXS12
    Daikin 4MXL36WVJU9 2-CTXS07 FTXS09 FTXS12
    ×
    Customer Review Images
    Loading
    Scroll Up ArrowTo Top
