New NewThis product is new and has never been used. It's in its original packaging, which has not been opened.
Weight
477 Pounds 477 PoundsTotal weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.

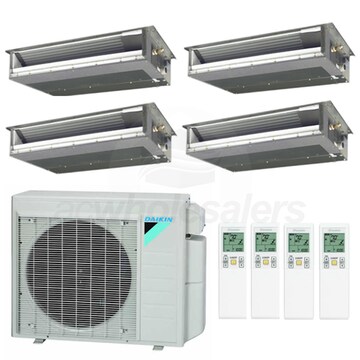

(2) Daikin 18,000 BTU Multi Zone Concealed Ducted Air Handler (CDXS18LVJU)
(1) Daikin 12,000 BTU Concealed Ducted Air Handler (FDXS12LVJU)
View Full Bundle
+Share This Product
Recommended Accessories
Required AccessoriesAdd All Required
Installation Accessories
Features & Bundle Details
Features & Bundle Details
Overview for Daikin D4H48D07121818
Daikin has firmly established themselves as a world leader in heating and cooling equipment manufacturing, and their mini splits are no exception. The MXS Series pairs Daikin's latest in condensing technology with quiet, easy to install, concealed duct indoor units. The outdoor condenser is engineered to provide efficient heating and cooling for your home while guaranteeing long, reliable, service life. Inside your home, Daikin's concealed duct units offer a simple design meant to blend into any setting. Combined with their standard quiet operation, these units are designed to keep your home comfortable without drawing attention. Advanced filtration technology cleans your home's air at the same time it is conditioned, allowing you and your family to breathe easy without fear of lingering pollutants.
Inverter Technology
The inverter technology works together with the expansion valve to adjust coolant flow and compressor speed to match indoor conditions. This results in less dramatic temperature swings and a more comfortable home.
Low Ambient Cooling and Heating
MXS condensers will continue to operate optimally even in colder climates. With an operational cooling range down to 14°F, and a heating range down to 5°F, the MXS can provide heating or cooling in any enviroment.
Whisper Quiet Operation
Daikin ductless units are engineered from the ground up for impressively quiet operation. The solidness of the units construction works together with quiet motor operation to make the units as unobtrusive as possible to its surrounding environment.
Built-In Advanced Filtration System
Daikin mini splits do more for your home's comfort level than control its temperature. An advanced microbial filtration system is installed in the indoor unit, allowing the mini split to purify your home's air as well as heating or cooling it.
Included Wireless Control
The included wireless control allows you to control the temperature of your room while never leaving the comfort of your favorite recliner.
Recommended line set sizes for indoor unit connectivity:
CDXS07LVJU: 1/4" x 3/8" Line Set
CDXS18LVJU: 1/4" x 1/2" Line Set (Qty 2)
FDXS12LVJU: 1/4" x 3/8" Line Set
Product Note
This product requires the following accessories for installation:Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.Adding these accessories to your order will provide a complete, ready-to-install mini split system. All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
Bundle Includes 5 items
Daikin - 48k BTU - Heat Pump Condenser -Multi Zone
Operating Mode Operating ModeSome products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Number of Zones Number of ZonesA zone is a room or area within a building that has its own temperature control.
4
Refrigerant Type
R-410A
Indoor Unit Size(s) Indoor Unit Size(s)Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
7 + 12 + 18 + 18
Outdoor Unit Size
48000 BTU
DOE Regional Compliance DOE Regional ComplianceIn 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
Nationwide
Performance
SEER SEERSEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
20.2
EER EEREER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
10.5
HSPF HSPFHSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system.
11.1
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating Minimum Outdoor Temperature for HeatingThis is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
5 F
Minimum Outdoor Temperature for Cooling
14 F
Dimensions
Product Weight
477 Pounds
Shipping Weight
481 Pounds
Certifications
AHRI Certified
Yes
AHRI Reference Number
202638702
General Information
Type
Outdoor Condenser
Product Line
MXS
Product Category
Mini Split System Components
Operating Mode Operating ModeSome products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
47000
Minimum Sound Level
52 dB
Maximum Sound Level Maximum Sound LevelSound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
55 dB
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating Minimum Outdoor Temperature for HeatingThis is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
5 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
33.2 Amps
Recommended Breaker Size
35 Amps
Dimensions
Maximum Line Length
262 Feet
Line Set A Liquid Connection
1/4 Inch
Line Set A Gas Connection
3/8 Inch
Line Set B Liquid Connection
1/4 Inch
Line Set B Gas Connection
1/2 Inch
Line Set C Liquid Connection
1/4 Inch
Line Set C Gas Connection
1/2 Inch
Line Set D Liquid Connection
1/4 Inch
Line Set D Gas Connection
5/8 Inch
Line Set E Liquid Connection
1/4 Inch
Line Set E Gas Connection
5/8 Inch
Product Height
34 1/4 Inches
Product Width
43 5/16 Inches
Product Depth
18 1/8 Inches
Product Weight
216 Pounds
Shipping Weight
226 Pounds
Certifications
AHRI Certified
Yes
Warranty Information
Parts Warranty Parts WarrantyA warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
Compressor Warranty
12 Years
Overview
Product Category
Mini Split System Components
General Information
Type
Concealed Duct
Product Line
MXS
Product Category
Mini Split System Components
Operating Mode Operating ModeSome products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Indoor Unit Size(s)Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
18
Performance
Cooling BTU
18000
Cooling Capacity
18000 BTU
Cooling Power Input
172 Watts
Maximum Air Flow
424 CFM
Minimum Air Flow
297 CFM
Heating Power Input
172 Watts
Minimum Sound Level
31 dB
Maximum Sound Level Maximum Sound LevelSound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
37 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Condensate Drain Size
1 1/24 Inches
Product Height
7 7/8 Inches
Product Width
35 7/16 Inches
Product Depth
24 7/16 Inches
Product Weight
75 Pounds
Shipping Weight
85 Pounds
Certifications
Country of Origin
Japan
ETL Listed
Yes
Warranty Information
Parts Warranty Parts WarrantyA warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
Overview
Product Category
Mini Split System Components
General Information
Type
Concealed Duct
Product Line
MXS
Product Category
Mini Split System Components
Operating Mode Operating ModeSome products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Indoor Unit Size(s)Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
12
Performance
Cooling BTU
12000
Cooling Capacity
12000 BTU
Cooling Power Input
72 Watts
Maximum Air Flow
305 CFM
Minimum Air Flow
235 CFM
Heating Power Input
72 Watts
Minimum Sound Level
31 dB
Maximum Sound Level Maximum Sound LevelSound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
35 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Condensate Drain Size
1 1/24 Inches
Product Height
7 7/8 Inches
Product Width
27 9/16 Inches
Product Depth
24 7/16 Inches
Product Weight
64 Pounds
Shipping Weight
74 Pounds
Certifications
Country of Origin
Japan
ETL Listed
Yes
Warranty Information
Parts Warranty Parts WarrantyA warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
Overview
Product Category
Mini Split System Components
General Information
Product Line
MXS
Product Category
Mini Split System Components
Operating Mode Operating ModeSome products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Indoor Unit Size(s)Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
7
Performance
Cooling BTU
7000
Cooling Capacity
7000 BTU
Cooling Power Input
72 Watts
Maximum Air Flow
305 CFM
Minimum Air Flow
260 CFM
Heating Power Input
72 Watts
Minimum Sound Level
31 dB
Maximum Sound Level Maximum Sound LevelSound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
35 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Condensate Drain Size
19/24 Inch
Product Height
7 7/8 Inches
Product Width
27 9/16 Inches
Product Depth
24 7/16 Inches
Product Weight
47 Pounds
Shipping Weight
47 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Parts WarrantyA warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
Overview
Product Category
Mini Split System Components
