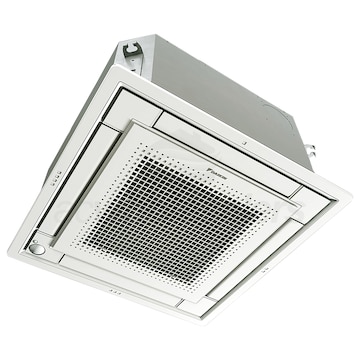

Daikin - 12k BTU - Ceiling Cassette with Grille - For Multi-Zone

Model: FFQ12W2VJU9 Item Number: 150336
Daikin FFQ12W2VJU9
PREVIOUS
NEXT
Daikin FFQ12W2VJU9
Daikin FFQ12W2VJU9
Enlarge Image
Daikin FFQ12W2VJU9
Daikin FFQ12W2VJU9
View All
Our Price: $1,362.00
synchrony card icon
$227 / Month
Suggested monthly payments with 6 month financing.
In-Stock
Ships in 2-5 Business Days
Shipping to60601
Factory items ship direct from the manufacturer
Shipping times vary
Daikin - 12k BTU - Ceiling Cassette with Grille - For Multi-Zone
Daikin - 12k BTU - Ceiling Cassette with Grille - For Multi-Zone Model: FFQ12W2VJU9 Item Number: 150336
$1,362.00
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    36 Pounds Learn More
    36 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Ceiling Cassette
    Product Line
    Vista
Bundle Includes 2 items
  • product image
    (1) Daikin - 12k BTU - Ceiling Cassette - Multi-Zone - Grille Sold Separately (FFQ12W2VJU9-NG)
  • product image
    (1) Daikin FFQ Ceiling Cassette Grille (BYFQ60C2W1W)
Capacity (BTU/h)
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Daikin FFQ12W2VJU9

Daikin has firmly established themselves as a world leader in heating and cooling equipment manufacturing, and their ductless systems are no exception. This ceiling cassette indoor unit for use in building a multi-zone mini split system. Whisper quiet operation means that the unit will never draw attention to itself, and sleek aesthetics allow the unit to blend into almost any home decoration theme. Daikin indoor units possess powerful energy saving features, which when combined with Daikin's extensive experience with building efficient units provides a cost-conscious solution to any home's heating and cooling needs.
  • Whisper Quiet Operation
  • Daikin ductless units are engineered from the ground up for impressively quiet operation. The solidness of the unit's construction works together with quiet motor operation to make the units as unobtrusive as possible to its surrounding environment.
  • Intelligent Eye Energy Saving Mode
  • Daikin indoor units have built-in motion sensing technology that transitions the system into an energy-saving mode when no movement has been detected indoors for 20 minutes. Once someone enters the room, the system switches back to full operation.
  • Built-In Advanced Filtration System
  • Daikin mini splits do more for your home's comfort level than control its temperature. An advanced microbial filtration system is installed in the indoor unit, allowing the mini split to purify your home's air as well as heating or cooling it.
  • Product Compatible With
  • Daikin MXS / MXL Outdoor Condensers
  • Product Note
    This product requires the following accessories for installation:Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    Bundle Includes 2 items
    • product kit image
      Daikin - 12k BTU - Ceiling Cassette - Multi-Zone - Grille Sold Separately
      Model: FFQ12W2VJU9-NG
      Item Number: 149138
      Quantity: 1
    • product kit image
      Daikin FFQ Ceiling Cassette Grille
      Model: BYFQ60C2W1W
      Item Number: 83656
      Quantity: 1
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    General Information
    Type
    Ceiling Cassette
    Product Line
    Vista
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Remote Control
    Not Included
    Installation Location
    Indoor
    Grille
    Included
    Performance
    Cooling BTU
    12000
    Cooling Capacity
    12000 BTU
    Maximum Air Flow
    406 CFM
    Minimum Air Flow
    268 CFM
    Minimum Sound Level
    30 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    39 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    1/4 Inch
    Liquid Connection Size
    3/8 Inch
    Condensate Drain Size
    1 1/48 Inches
    Product Height
    10 1/4 Inches
    Product Width
    22 5/8 Inches
    Product Depth
    22 5/8 Inches
    Product Weight
    36 Pounds
    Shipping Weight
    46 Pounds
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
    General Information
    Type
    Ceiling Cassette
    Product Line
    Vista
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Remote Control
    Not Included
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    12
    Installation Location
    Indoor
    Grille
    Not Included
    Performance
    Cooling BTU
    12000
    Cooling Capacity
    12000 BTU
    Maximum Air Flow
    406 CFM
    Minimum Air Flow
    268 CFM
    Minimum Sound Level
    30 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    39 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    1/4 Inch
    Liquid Connection Size
    3/8 Inch
    Condensate Drain Size
    1 1/48 Inches
    Product Height
    10 1/4 Inches
    Product Width
    22 5/8 Inches
    Product Depth
    22 5/8 Inches
    Product Weight
    36 Pounds
    Shipping Weight
    46 Pounds
    Certifications
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    General Information
    Type
    Grille
    Product Category
    Mini Split Accessories
    Dimensions
    Product Height
    1 13/16 Inches
    Product Width
    24 7/16 Inches
    Product Depth
    24 7/16 Inches
    Product Weight
    1 Pound
    Shipping Weight
    2 Pounds
