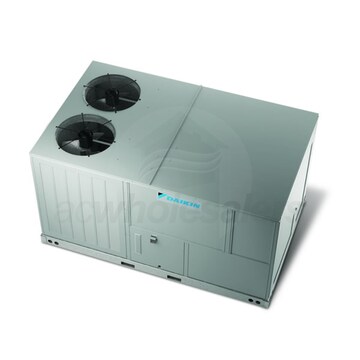

Daikin 25 Ton 10.2 EER Air Conditioner Package Unit 460V 3 Ph

Model: DCC300XXX4VXXX Item Number: 93877
Daikin Light Commercial DCC300XXX4VXXX
PREVIOUS
NEXT
Daikin Light Commercial DCC300XXX4VXXX
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    2387 Pounds Learn More
    2387 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Air Conditioner Packaged Unit
    Product Line
    DCC
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Daikin Light Commercial DCC300XXX4VXXX

Daikin's packaged HVAC systems offer the perfect all-in-one comfort solution for nearly any residential or light commercial application. The DCC series combines a scroll compressor, evaporator coil, and blower all into one unit. Daikin's high-performance compressors operate in tandem with their efficient coil design, providing powerful cooling without wasting energy. The DCC's heavy-gauge, galvanized steel cabinet will protect its inner components from all the elements for years to come. Compatible with ground-level or rooftop installations in horizontal or downflow applications, this versatile unit can be adapted for almost any installation requirement.
  • High-Efficiency Coils
  • The condenser coil of this packaged unit is designed with aluminum fins and rifled copper tubing to maximize surface area and efficiency. It also features a durable all-aluminum evaporator coil that optimizes heat transfer.
  • High-Efficiency Scroll Compressor
  • This unit utilizes a high-efficiency scroll compressor to provide refrigerant flow. Scroll compressors are renowned for operating more smoothly and reliably than traditional compressors.
  • Secure Cabinet
  • The cabinet of the DCC unit is made from heavy-gauge, galvanized-steel with a UV-resistant powder paint finish to protect itself from the elements and ensure longevity.
  • Steel-Cased Filter Drier
  • A filter drier is installed in the liquid line of this packaged unit's air conditioner. The filter drier removes moisture and traps impurities, preventing corrosion, freezing, and blockages that can negatively impact the operation of the condenser.
  • Easy Access
  • The DCC is easily accessible for maintenance and features a built-in filter rack for simple upkeep.
  • Specifications
    View More

    Specifications

    General Information
    Type
    Air Conditioner Packaged Unit
    Product Line
    DCC
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Cooling
    Blower Motor Type
    Two-Speed
    Motor Type
    Belt Drive
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Downflow/Horizontal
    Installation Location
    Outdoor
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    25.0 Tons
    Cooling BTU
    300000
    EER Learn More
    EER
    EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
    10.2
    IEER
    11.8
    Maximum Air Flow
    8200 CFM
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    92 dB
    Electrical Data
    Voltage
    460 Volts
    Phase
    3
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    53.8 Amps
    Recommended Breaker Size
    70 Amps
    Dimensions
    Product Height
    53 5/24 Inches
    Product Width
    133 1/2 Inches
    Product Depth
    88 1/8 Inches
    Product Weight
    2387 Pounds
    Shipping Weight
    2387 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    8582013
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
