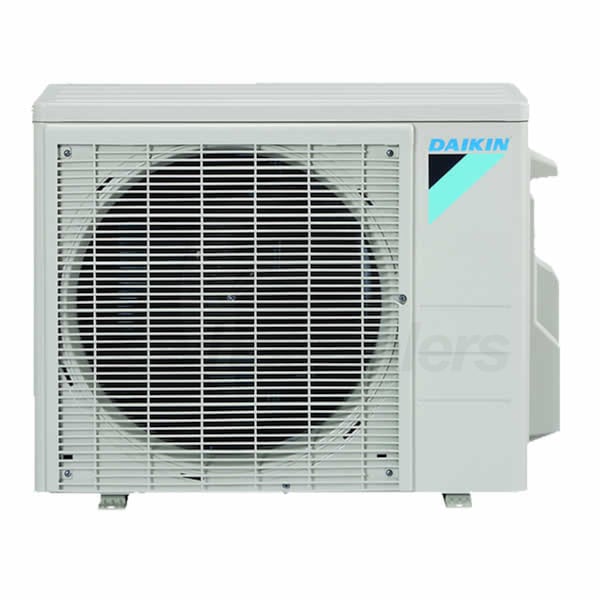

Daikin - 12k BTU - 15 Series Outdoor Condenser - Single Zone Only

Model: RXN12NMVJU Item Number: 65498
Daikin RXN12NMVJU
PREVIOUS
NEXT
Daikin RXN12NMVJU
Enlarge Image
Daikin RXN12NMVJU
Daikin RXN12NMVJU
Watch Video
Daikin RXN12NMVJU
Watch Video
Daikin RXN12NMVJU
Watch Video
Daikin RXN12NMVJU
Watch Video
Daikin RXN12NMVJU
Watch Video
Daikin RXN12NMVJU
Watch Video
View All
Product Discontinued
Sorry, this product is no longer available.
Try This Instead
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    60 Pounds Learn More
    60 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Outdoor Condenser
    Product Line
    15-Series
Recommended Accessories
View More
Installation Accessories
Diversitech ULTRALITE Condenser Mounting Pad 16x36x3
Model: UC1636-3
Qty
$44.00
In-Stock
Add To Cart
Diversitech - High Mini Split Stand - Supports up to 400 lbs - 24" High
Model: QSMS2401
Qty
$375.00
In-Stock
Add To Cart
Daikin Drain Pan Heater Small
$151.00
Ships in 8-12 Weeks
Model: KEH067A41E
Qty
$151.00
Ships in 8-12 Weeks
Add To Cart
Features
View More

Features

Overview for Daikin RXN12NMVJU

Please Note: Due to the limited availability of this model, these products will be sold in systems only. Should you have any questions please contact our sales center at 866-631-6389 option 1 for alternate options.

Specifications
View More

Specifications

General Information
Type
Outdoor Condenser
Product Line
15-Series
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Maximum Number of Zones
1
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
12000
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
49 dB
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating Learn More
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
5 F
Minimum Outdoor Temperature for Cooling
50 F
Electrical Data
Phase
1
Frequency
60 Hz
Recommended Breaker Size
15 Amps
Dimensions
Maximum Line Length
49 Feet
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
21 5/8 Inches
Product Width
26 9/16 Inches
Product Depth
11 1/8 Inches
Product Weight
60 Pounds
Shipping Weight
65 Pounds
Certifications
Country of Origin
Japan
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Show ACW Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
5 Years
