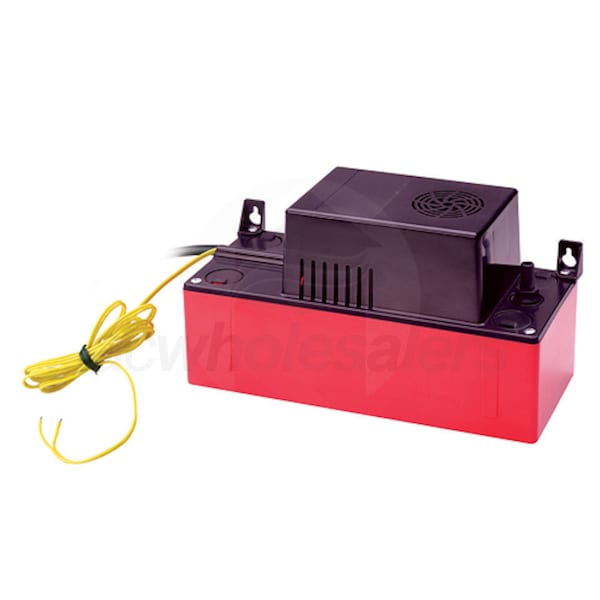

Diversitech Condensate Pump with 16 Foot Lift 115V

Model: CP-16 Item Number: 83693
Diversitech CP-16
PREVIOUS
NEXT
Diversitech CP-16
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Product Category
    Mini Split Accessories
    Weight
    3.8 Pounds
    UPC
    95247123988
Features
View More

Features

Overview for Diversitech CP-16

Overview for Diversitech CP-16Suitable for use with condensate from high efficiency condensing furnaces and boilers which produce acidic condensate. 22' of lift compared to the typical 20'. Features include vibration dampening feet and motor mounts, metal hang tabs, four inlet holes, a clear indicator display, a float switch and check valve, and pan pill dispenser. Integrating the CP-22 into your system is easy. 1/4 inch quick connect terminals provide easy connection to the built in overflow switch. 3 terminals are provided allowing flexibility to connect air-handler shut-down and optional alarm as needed. The new CP-22LP comes packed with all the same great features found in the CP-22, but now in a low profile package. This pump is only 4 3/8 tall so it's a good fit for those instances where space is at a premium. The shorter reservoir holds 1/3 gallon. Suitable for use with condensate up to 160 degrees F.
  • Check Valve - Removable check valve for easy cleaning.
  • Four Inlet Holes - Four inlets versus two or three on other pumps provide the greatest installation versatility. Inlet holes have a reinforced wall for increased durability.
  • 160 Degrees Fahrenheit maximum inlet temperature
  • Comes with float switch and overflow switch
  • Metal Hang Tabs - Shatterproof stainless steel hang tabs have hole-and-slot design for easy mounting. Tabs are located on convenient 8" centers.
  • Compact condensate pump for air conditioners
  • More compact than the CP-22, itâ™s designed to lift to a maximum of 16 feet.
  • Our SKU number(s): Diversitech CP-16
  • The manufacturer model number(s): Diversitech CP-16
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Mini Split Accessories
    Weight
    3.8 Pounds
    UPC
    95247123988
    Pump
    Gallons Per Minute
    1.2 Gallons
    Suction Head
    3.5 Feet
    Max Head
    16 Feet
    Motor
    Starting Amps
    1.9
    General Information
    Product Category
    Mini Split Accessories
    Electrical Data
    Voltage
    120 Volts
    Dimensions
    Product Height
    10 3/4 Inches
    Product Width
    4 1/2 Inches
    Product Length
    6 1/2 Inches
