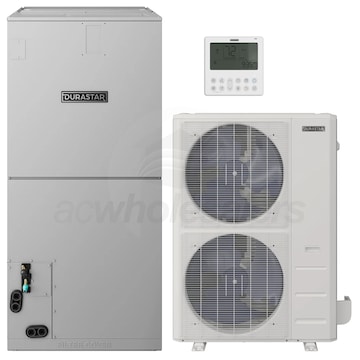

Durastar - 60k BTU Cooling + Heating - Multi-Position Air Handler Air Conditioning System - 14.9 SEER2

Model: DR1H60A60 Item Number: 153880
Durastar DR1H60A60
PREVIOUS
NEXT
Durastar DR1H60A60
Durastar DR1H60A60
Durastar DR1H60A60
Durastar DR1H60A60
Durastar DR1H60A60
Durastar DR1H60A60
Durastar DR1H60A60
Enlarge Image
Durastar DR1H60A60
Durastar DR1H60A60
Durastar DR1H60A60
Durastar DR1H60A60
Durastar DR1H60A60
Durastar DR1H60A60
Durastar DR1H60A60
View All
Our Price: $6,889.00
synchrony card icon
$87 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
In-Stock
Ships Wednesday, November 13th
Shipping to60601
Durastar - 60k BTU Cooling + Heating - Multi-Position Air Handler Air Conditioning System - 14.9 SEER2
Durastar - 60k BTU Cooling + Heating - Multi-Position Air Handler Air Conditioning System - 14.9 SEER2 Model: DR1H60A60 Item Number: 153880
$6,889.00
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    380 Pounds Learn More
    380 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Ducted Vertical Air Handler
    Product Category
    Mini Split Heat Pump System
Bundle Includes 2 items
  • product image
    (1) Durastar - 60k BTU - Outdoor Unit - Single Zone Only (DRA1U60S1A)
  • product image
    (1) Durastar - 60k BTU - Multi-Position Air Handler - Single Zone Only (DRAM60S1A)
System BTU/hr
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Durastar DR1H60A60

Engineered for comfort, Durastar is backed by resilient technology and will withstand the test of time and nature's elements. Providing energy efficient, value-friendly HVAC equipment for every space, Durastar creates a comfortable environment for any homeowner. Durastar air handlers are ideal for renovations, remodels and ducted heating and cooling needs. The DRAM Series air handlers from Durastar utilize variable-speed technology to optimize energy efficiency. By operating at the lowest possible power output, they not only conserve energy but also produce less noise and provide superior moisture management. These units when paired are designed to provide year-round comfort. The DRAM models are adaptable for various installation configurations, including upflow, downflow, and horizontal applications, and are designed for easy maintenance.
  • Flexible Installation
  • The Durastar air handler can be installed horizontally (right or left) or vertically (up or down).
  • Energy-Efficient Operation
  • These air handlers feature a high-efficiency, constant volume, variable speed motor that delivers added energy efficiency.
  • Durable Construction
  • Durastar air handlers are made with an all aluminum coils for long-lasting performance.
  • Anti-Corrosive Fin Coating
  • Durastar condensers and indoor units feature Golden Fin Coating, an anti-corrosive fin coating to ensure the longevity, reliability and prevent corrosion to improve its durability.
  • Enhanced Air Quality
  • Durastar air handlers have a built-in dehumidifier, humidifier and IAQ ports for improved indoor air quality.
  • Intelligent Airflow Technology
  • Durastar features advanced auto airflow tech, automatically adjusting operation to cool, fan, heat, or dry modes to maintain set temperature when using auto mode.

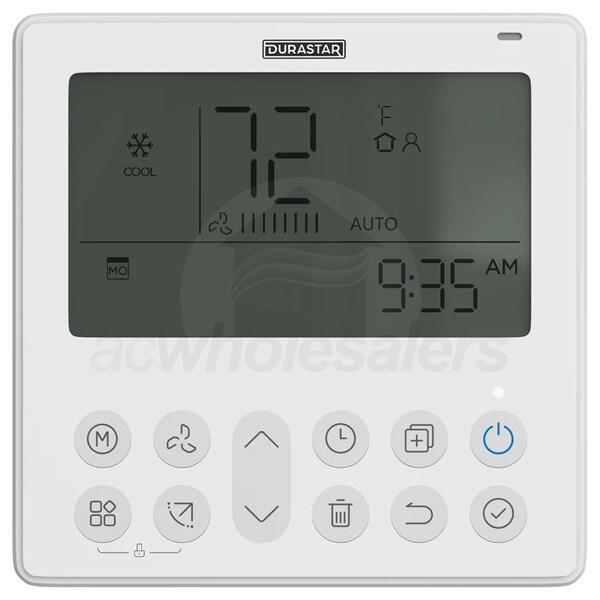

  • Compatible with 24 Volt Thermostats
  • Durastar air handlers can be controlled using third-party, Wi-Fi thermostats. They are designed to work with a range of 24 volt Wi-Fi thermostat brands including Nest, Ecobee, Honeywell and Proselect, enabling wireless control of the unit.
  • Additional Heating Option
  • Durastar multi-position air handlers offer an optional electric heater for added comfort. (Sold separately)
  • Variable Speed Inverter Compressor
  • Durastar's energy efficient inverter technology uses an electronic expansion valve and a variable speed compressor to regulate the refrigerant flow, reducing energy consumption and allowing consistent, accurate temperatures.
  • Low Ambient Operations
  • This outdoor unit supports cooling operations down to 5 degrees Fahrenheit and heating operations down to -13 degrees Fahrenheit.
  • Included Base Pan Heater
  • The outdoor unit features a defrost feature, which removes frost from the condenser coil in frigid conditions and performs reliably at lower temperatures.
  • Anti-Corrosive Fin Coating
  • Durastar condensers and indoor units feature Golden Fin Coating, an anti-corrosive fin coating to ensure the longevity, reliability and prevent corrosion to improve its durability.
  • Quiet Operation
  • Both the outdoor and indoor units provide reduced electrical and mechanical sound thanks to their brushless direct current fan motors.
  • Auto Changeover
  • Set it and forget it. With Durastar's Auto Changeover feature, you can set the temperature and it will automatically switch between heating and cooling to maintain your temperature.
  • 10 Year Warranty
  • Durastar stands behind their product with a hassle-free 10 year limited parts warranty.
  • Product Note
    Please note, installation manuals are not currently included with your mini split. Please see the Manuals tab for the Installation Manual. This product requires the following accessories for installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor unit.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor unit to drain locations of your choosing. We recommend locally purchased PVC hard pipe for the condensate drain on cassette and concealed duct units.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Cable - This durable, insulated cable provides power to your indoor unit from your outdoor condenser.
    • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system. All Mini Split Systems require one Primary Mini Split Installation Kit.
    Bundle Includes 2 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    General Information
    Type
    Ducted Vertical Air Handler
    Product Category
    Mini Split Heat Pump System
    Number of Zones Learn More
    Number of Zones
    A zone is a room or area within a building that has its own temperature control.
    1
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    60
    Outdoor Unit Size
    57000 BTU
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Line Set Size
    3/8" x 7/8"
    Performance
    Cooling BTU
    60000
    Cooling Capacity
    57000 BTU
    Heating Capacity
    60000 BTU
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -13 F
    Minimum Outdoor Temperature for Cooling
    5 F
    SEER2 Learn More
    SEER2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
    14.9
    EER2 Learn More
    EER2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. EER2 (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER2, the more efficient the system.
    8.8
    HSPF2 Learn More
    HSPF2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. HSPF2 (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF2, the more efficient the system.
    8.5
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Recommended Breaker Size
    60 Amps
    Dimensions
    Product Weight
    380 Pounds
    Shipping Weight
    441 Pounds
    Certifications
    Energy Star Listed
    Yes
    UL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    213350737
    General Information
    Type
    Outdoor Condenser
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Maximum Number of Zones
    1
    Multi-Zone Compatible
    No
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Outdoor Unit Size
    60000 BTU
    Performance
    Cooling BTU
    60000
    Cooling Capacity
    60200 BTU
    Heating BTU
    60000
    Heating Capacity
    63100 BTU
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    60 dB
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -13 F
    Minimum Outdoor Temperature for Cooling
    5 F
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    34 Amps
    Recommended Breaker Size
    60 Amps
    Dimensions
    Gas Connection Size
    7/8 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    52 1/2 Inches
    Product Width
    37 1/2 Inches
    Product Depth
    16 7/8 Inches
    Product Weight
    217 Pounds
    Shipping Weight
    248 Pounds
    Certifications
    UL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    10 Years

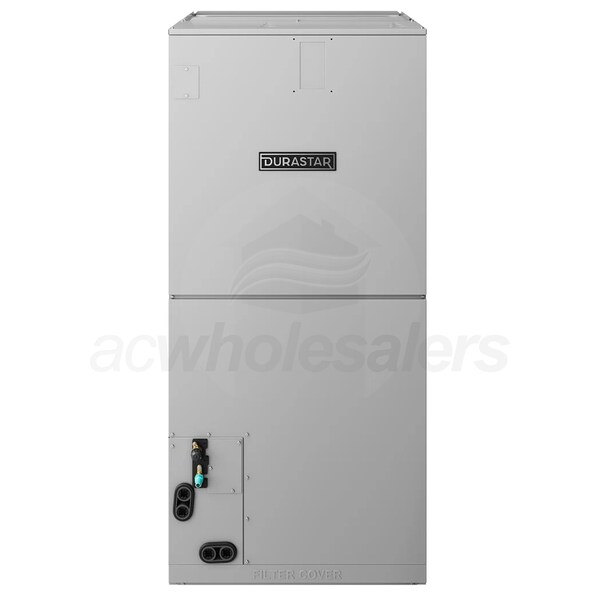

    General Information
    Type
    Ducted Vertical Air Handler
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    No
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    60
    Installation Location
    Indoor
    Remote Included
    Yes
    Performance
    Cooling BTU
    60000
    Cooling Capacity
    60200 BTU
    Heating BTU
    60000
    Heating Capacity
    63100 BTU
    Moisture Removal
    264 Pints/Hour
    Maximum Air Flow
    1806 CFM
    Minimum Air Flow
    1135 CFM
    Minimum Sound Level
    43.0 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    52.0 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Recommended Breaker Size
    15 Amps
    Dimensions
    Gas Connection Size
    7/8 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    53 Inches
    Product Width
    24 1/2 Inches
    Product Depth
    21 Inches
    Product Weight
    163 Pounds
    Shipping Weight
    193 Pounds
    Certifications
    UL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    10 Years
