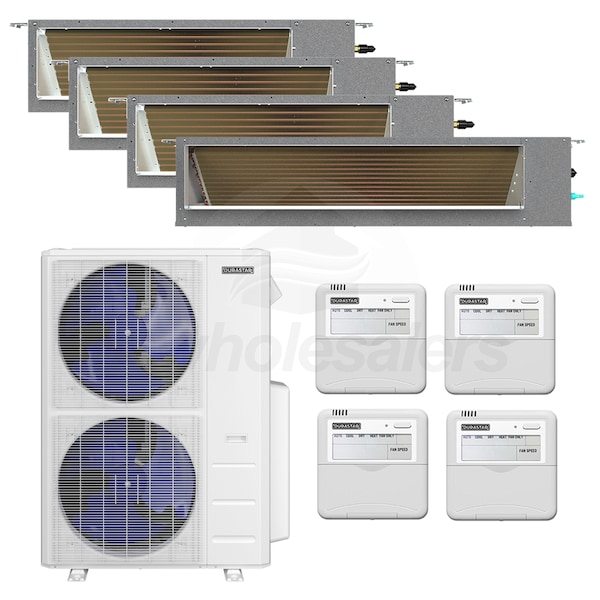

Durastar Concealed Duct 4-Zone System - 48,000 BTU Outdoor - 9k + 9k + 12k + 24k Indoor - 20.5 SEER2

Model: DR4H48D09091224 Item Number: 113352
Durastar DR4H48D09091224
PREVIOUS
NEXT
Durastar DR4H48D09091224
Durastar DR4H48D09091224
Durastar DR4H48D09091224
Durastar DR4H48D09091224
Durastar DR4H48D09091224
Durastar DR4H48D09091224
Durastar DR4H48D09091224
Enlarge Image
Durastar DR4H48D09091224
Durastar DR4H48D09091224
Durastar DR4H48D09091224
Durastar DR4H48D09091224
Durastar DR4H48D09091224
Durastar DR4H48D09091224
Durastar DR4H48D09091224
View All
Originally $9,273.78
Add to Cart for Lower Price
synchrony card icon
$99 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
In-Stock
Ships Monday, November 11th
Shipping to60601
Durastar Concealed Duct 4-Zone System - 48,000 BTU Outdoor - 9k + 9k + 12k + 24k Indoor - 20.5 SEER2
Durastar Concealed Duct 4-Zone System - 48,000 BTU Outdoor - 9k + 9k + 12k + 24k Indoor - 20.5 SEER2 Model: DR4H48D09091224 Item Number: 113352
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Product Category
    Mini Split Heat Pump System
Bundle Includes 5 items
  • product image
    (1) Durastar - 48k BTU - Outdoor Condenser - For 2-5 Zones (DRA5U48M1B)
  • product image
    (1) Durastar - 24k BTU - Concealed Duct - For Multi or Single Zone (DRAD24F1A)
  • product image
    (1) Durastar - 12k BTU - Concealed Duct - For Multi or Single Zone (DRAD12F1A)
Outdoor Unit BTU/h
Select Attribute
Indoor Unit Sizes
Learn More
Indoor Unit Sizes
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. For example (9k + 12k) means the system includes a 9k BTU unit and a 12k BTU unit.
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Durastar DR4H48D09091224

Engineered for comfort, Durastar is backed by resilient technology and will withstand the test of time and nature's elements. Providing energy efficient, value-friendly HVAC equipment for every space, Durastar creates a comfortable environment for any homeowner. Durastar mini-splits are ideal for renovations, remodels and zone-specific heating and cooling needs.
  • Wired Remote Control With "Follow Me" Technology
  • This function uses the temperature at the remote's location, instead of the indoor unit's location, to optimize the temperature around you and ensure maximum comfort.
  • Auto Restart
  • The indoor unit has an auto-restart module that allows the unit to restart automatically and, in the case of a sudden power failure, will restore those setting automatically after power returns.
  • 24-Hour Timer Feature
  • The timer function establishes the amount of time that will elapse before the unit will automatically turn on/off.
  • Variable Speed Inverter Compressor
  • Durastar's energy efficient inverter technology uses an electronic expansion valve and a variable speed compressor to regulate the refrigerant flow, reducing energy consumption and allowing consistent, accurate temperatures.
  • Low Ambient Operations
  • This outdoor unit supports cooling operations down to 5 degrees Fahrenheit and heating operations down to -13 degrees Fahrenheit.
  • Included Base Pan Heater
  • The outdoor unit features a defrost feature, which removes frost from the condenser coil in frigid conditions and perform reliably at lower temperatures.
  • Anti-Corrosive Fin Coating
  • Durastar condensers and indoor units feature Golden Fin Coating, an anti-corrosive fin coating to ensure the longevity, reliability and prevent corrosion this improves its durability.
  • Quiet Operation
  • Both the outdoor and indoor units enjoy reduced electrical and mechanical sound thanks to their brushless direct current fan motors.
  • Washable Filter
  • With a washable filter, the indoor unit features easy, low cost maintenance.
  • Auto Changeover
  • Set it and forget it. With Durastar's Auto Changeover feature, you can set the temperature and it will automatically switch between heating and cooling to maintain your temperature.
  • Eco/Gear Mode
  • With Eco/Gear Mode set in cooling mode, energy consumption of the indoor unit is reduced in three tiers ranging from 10-50%.
  • Timer Function
  • Set your unit based on your schedule with the Timer function.
  • Refrigerant Leak Detection
  • Durastar outdoor condensers protect themselves and the environment with it's Refrigerant Leak Detection feature.
  • Static Pressure Adjustment
  • The Durastar ducted units feature static pressure adjustment that fine tune the air flow to your home, delivering added comfort and temperature regulation.
  • 10 Year Warranty
  • Durastar stands behind their product with a hassle-free 10 year limited parts warranty.
  • Third-Party Thermostat Interface
  • The DR24VINT1 interface works with Durastar indoor units, enabling third-party Wi-Fi compatible thermostats to control them. It's compatible with various 24V Wi-Fi thermostat brands like Nest, Ecobee, Honeywell, and Proselect for wireless control.
  • Recommended line set sizes for indoor unit connectivity:
  • DRAD09F1A 1/4" x 3/8" Line Set (Qty 2)
  • DRAD12F1A 1/4" x 1/2" Line Set
  • DRAD24F1A 3/8" x 5/8" Line Set
  • Product Note
    Please note, installation manuals are not currently included with your mini split. Please see the Manuals tab for the Installation Manual. Each outdoor unit will include any port adapters necessary for multi-zone installation. This product requires the following accessories for installation:Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.Adding these accessories to your order will provide a complete, ready-to-install mini split system. All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
    Bundle Includes 5 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Overview
    Product Category
    Mini Split Heat Pump System
    General Information
    Type
    Concealed Duct
    Product Category
    Mini Split Heat Pump System
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Number of Zones Learn More
    Number of Zones
    A zone is a room or area within a building that has its own temperature control.
    4
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    9 + 9 + 12 + 24
    Base Pan Heater Included
    Yes
    Outdoor Unit Size
    48000 BTU
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Performance
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -13 F
    Minimum Outdoor Temperature for Cooling
    5 F
    SEER2 Learn More
    SEER2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
    20.5
    EER2 Learn More
    EER2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. EER2 (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER2, the more efficient the system.
    10.8
    HSPF2 Learn More
    HSPF2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. HSPF2 (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF2, the more efficient the system.
    9.7
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    207787181
    General Information
    Type
    Outdoor Condenser
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Maximum Number of Zones
    5
    Multi-Zone Compatible
    Yes
    Installation Location
    Outdoor
    Performance
    Cooling BTU
    48000
    Heating BTU
    48000
    Maximum Air Flow
    4500 CFM
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    64 dB
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -13 F
    Minimum Outdoor Temperature for Cooling
    5 F
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Recommended Breaker Size
    60 Amps
    Dimensions
    Line Set A Liquid Connection
    1/4 Inch
    Line Set A Gas Connection
    3/8 Inch
    Line Set B Liquid Connection
    1/4 Inch
    Line Set B Gas Connection
    3/8 Inch
    Line Set C Liquid Connection
    1/4 Inch
    Line Set C Gas Connection
    3/8 Inch
    Line Set D Liquid Connection
    1/4 Inch
    Line Set D Gas Connection
    1/2 Inch
    Line Set E Liquid Connection
    1/4 Inch
    Line Set E Gas Connection
    1/2 Inch
    Product Height
    52 1/2 Inches
    Product Width
    37 1/2 Inches
    Product Depth
    16 5/16 Inches
    Product Weight
    225.5 Pounds
    Certifications
    ETL Listed
    No
    Energy Star Listed
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    10 Years
    General Information
    Type
    Concealed Duct
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    24
    Installation Location
    Indoor
    Remote Included
    Yes
    Wired Thermostat
    Included
    Performance
    Cooling BTU
    24000
    Heating BTU
    24400
    Maximum Air Flow
    776 CFM
    Minimum Air Flow
    435 CFM
    Minimum Sound Level
    38 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    44 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    5/8 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    9 13/16 Inches
    Product Width
    43 5/16 Inches
    Product Depth
    30 1/2 Inches
    Product Weight
    90.4 Pounds
    Certifications
    ETL Listed
    Yes
    Energy Star Listed
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    10 Years
    Overview
    Product Category
    Mini Split System Components
    General Information
    Type
    Concealed Duct
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    12
    Installation Location
    Indoor
    Remote Included
    Yes
    Wired Thermostat
    Included
    Performance
    Cooling BTU
    12000
    Heating BTU
    12000
    Maximum Air Flow
    353 CFM
    Minimum Air Flow
    177 CFM
    Minimum Sound Level
    33.5 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    38 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    1/2 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    7 7/8 Inches
    Product Width
    27 9/16 Inches
    Product Depth
    19 15/16 Inches
    Product Weight
    39.2 Pounds
    Certifications
    ETL Listed
    Yes
    Energy Star Listed
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    10 Years
    Overview
    Product Category
    Mini Split System Components
    General Information
    Type
    Concealed Duct
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    9
    Installation Location
    Indoor
    Remote Included
    Yes
    Wired Thermostat
    Included
    Performance
    Cooling BTU
    9000
    Heating BTU
    10000
    Maximum Air Flow
    353 CFM
    Minimum Air Flow
    177 CFM
    Minimum Sound Level
    32 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    38 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    7 7/8 Inches
    Product Width
    27 9/16 Inches
    Product Depth
    19 15/16 Inches
    Product Weight
    39 Pounds
    Certifications
    ETL Listed
    Yes
    Energy Star Listed
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    10 Years
    Overview
    Product Category
    Mini Split System Components
    Reviews
    View More

    Reviews

    Do You Own This Product?

    Give us your opinion on this product and help any future buyer's make an informed decision.

    Product Q&A
    View More

    Product Q&A

    Be the first to ask a question.

    Whether it's a general or technical question ACWholesalers can help. Our customer service team is backed by years of experience so you can have confidence knowing that you'll be getting an insightful response.

    Manuals
    View More
    Share
    ×
    Durastar Concealed Duct 4-Zone System - 48,000 BTU Outdoor - 9k + 9k + 12k + 24k Indoor - 20.5 SEER2
    Durastar DR4H48D09091224
    Loading
    Durastar DR4H48D09091224
    Durastar DR4H48D09091224
    Durastar DR4H48D09091224
    Durastar DR4H48D09091224
    Durastar DR4H48D09091224
    Durastar DR4H48D09091224
    Durastar DR4H48D09091224
    ×
    Customer Review Images
    Loading
    Scroll Up ArrowTo Top
