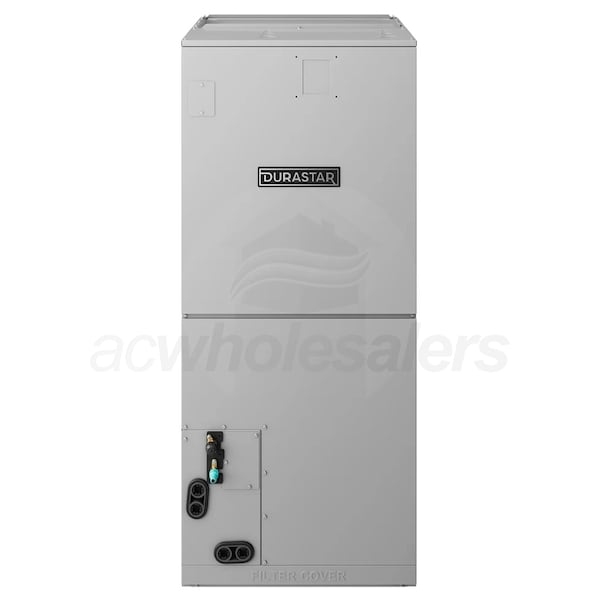

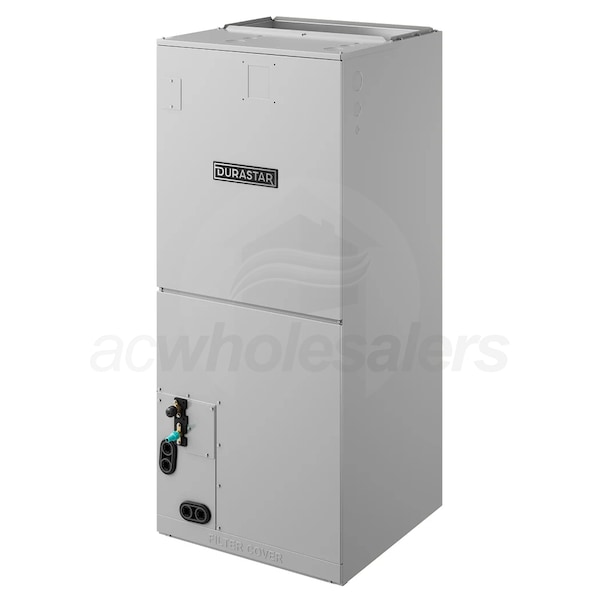

Durastar Multi-Position Air Handler - Single-Zone - 36k BTU - R-454B

Model: DRUM3036S2A Item Number: 166395
Durastar DRUM3036S2A
PREVIOUS
NEXT
Durastar DRUM3036S2A
Durastar DRUM3036S2A
Enlarge Image
Durastar DRUM3036S2A
Durastar DRUM3036S2A
View All
Our Price: $2,630.98
synchrony card icon
$47 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
In-Stock
Ships Today, April 8th
Shipping to60601
Durastar Multi-Position Air Handler - Single-Zone - 36k BTU - R-454B
Durastar Multi-Position Air Handler - Single-Zone - 36k BTU - R-454B Model: DRUM3036S2A Item Number: 166395
$2,630.98
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    128.97 Pounds Learn More
    128.97 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Ducted Vertical Air Handler
    Product Category
    Mini Split System Components
Recommended Accessories
View More
Installation Accessories
Mini Split Connecting Cable - 14 GA - 4 Conductors - Stranded - 25' Length
Model: MSCABLE144-25
Length (ft)
Qty
$45.00
In-Stock
Add To Cart
Mini Split 15' Length 5/8" ID PVC Braided Drain Tubing
Model: DRAINTUBING-15
Length (ft)
Qty
$18.00
Ships in 2-5 Business Days
Add To Cart
Mueller - 3/8" x 3/4" Insulated Mini Split Line Set - 35' Length - Factory Flared
Model: MLS383412-35
Length (ft)
Qty
$382.00
In-Stock
Add To Cart
Aspen Mini White - Mini Split Condensate Pump Kit - Universal Voltage - Up to 54,000 BTU/hr
Model: ASP-MW-UNI
Qty
$296.32
In-Stock
Add To Cart
Durastar - Third-Party Thermostat Interface
$265.07
Ships in 2-5 Business Days
Model: DR24VINT2
Qty
$265.07
Ships in 2-5 Business Days
Add To Cart
Features
View More

Features

Overview for Durastar DRUM3036S2A

Engineered for comfort, Durastar is backed by resilient technology and will withstand the test of time and nature's elements. Providing energy efficient, value-friendly HVAC equipment for every space, Durastar creates a comfortable environment for any homeowner. Durastar air handlers are ideal for renovations, remodels and ducted heating and cooling needs. This air handler indoor unit is for use in single zone systems.
  • Flexible Installation
  • The Durastar air handler can be installed horizontally (right or left) or vertically (up or down).
  • Energy Efficient Operation
  • These air handlers feature a high-efficiency, constant volume, variable speed motor that delivers added energy efficiency.
  • Durable Construction
  • Durastar air handlers are made with an all aluminum coils for long-lasting performance.
  • Corrosion Protection
  • Durastar air handlers feature Golden Fin Coating, an anti-corrosive fin coating to ensure the longevity, reliability and prevent corrosion to improve its durability.
  • Enhanced Air Quality
  • Durastar air handlers have a built-in dehumidifier, humidifier and IAQ ports for improved indoor air quality.
  • Intelligent Airflow Technology
  • Durastar features advanced auto airflow tech, automatically adjusting operation to cool, fan, heat, or dry modes to maintain set temperature when using auto mode.
  • Compatible with 24 Volt Thermostats
  • Durastar air handlers can be controlled using third-party, Wi-Fi thermostats. They are designed to work with a range of 24 volt Wi-Fi thermostat brands including Nest, Ecobee, Honeywell and Proselect, enabling wireless control of the unit.
  • Additional Heating Option
  • Durastar multi-position air handlers offer an optional electric heater for added comfort. (Sold separately)
  • Product Includes
  • (1) DRSTAT100 Programmable Wired Thermostat
  • (1) Wireless Remote Control
  • (2) Batteries
  • (2) Cable Ties
  • (4) Foam
  • (2) Flare Nuts
  • (3) Manuals
  • Product Note
    Includes DRSTAT101 Remote Controller. This product requires a compatible Durastar mini split outdoor condenser and the following accessories for indoor unit installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    Durastar products include a 10-year parts warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at www.durastar.com/warranty-registration Registration is not needed in California, Texas, and Florida, the full 10-year parts warranty will be provided regardless of registration.
    Specifications
    View More

    Specifications

    General Information
    Type
    Ducted Vertical Air Handler
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    No
    Refrigerant Type
    R-454B
    Remote Control
    Included
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    36
    Installation Location
    Indoor
    Remote Included
    Yes
    Wired Thermostat
    Included
    UPC
    781889999257
    Performance
    Cooling BTU
    36000
    Cooling Capacity
    36000 BTU
    Heating BTU
    36000
    Heating Capacity
    37000 BTU
    Moisture Removal
    3.4 Pints/Hour
    Maximum Air Flow
    1189 CFM
    Minimum Air Flow
    712 CFM
    Minimum Sound Level
    25.5 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    49 dB
    Electrical Data
    Voltage
    115/208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    6 Amps
    Recommended Breaker Size
    15 Amps
    Dimensions
    Gas Connection Size
    3/4 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    49 Inches
    Product Width
    21 Inches
    Product Depth
    19 1/8 Inches
    Product Weight
    128.97 Pounds
    Shipping Weight
    153.44 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    10 Years
