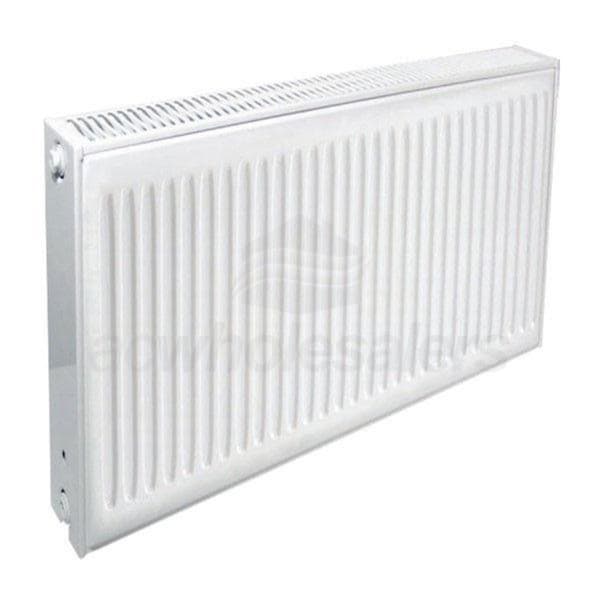

Ecostyle - 9,137 BTU - Hot Water Panel Radiator - 20"H x 56"W - White

Model: ECS205622CV Item Number: 24156
Ecostyle ECS205622CV
PREVIOUS
NEXT
Ecostyle ECS205622CV
Ecostyle ECS205622CV
Ecostyle ECS205622CV
Ecostyle ECS205622CV
Ecostyle ECS205622CV
Ecostyle ECS205622CV
Enlarge Image
Ecostyle ECS205622CV
Ecostyle ECS205622CV
Ecostyle ECS205622CV
Ecostyle ECS205622CV
Ecostyle ECS205622CV
Ecostyle ECS205622CV
View All
Our Price: $624.00
synchrony card icon
$104 / Month
Suggested monthly payments with 6 month financing.
Factory-Direct
Ships in 7-14 Business Days
Ecostyle - 9,137 BTU - Hot Water Panel Radiator - 20
Ecostyle - 9,137 BTU - Hot Water Panel Radiator - 20"H x 56"W - White Model: ECS205622CV Item Number: 24156
$624.00
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    86 Pounds Learn More
    86 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Radiators
    UPC
    5907814714398
Height
Select Attribute
Width
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Ecostyle ECS205622CV

The Ecostyle line features a wide array of sizes and heat outputs to meet whatever heating needs you may have. This radiator, the B-20.56 ECO, measures 20" tall by 56" wide, features a beautiful Italian design, and provides both radiant and convective heat for maximum efficiency and minimal cold spots. The Ecostyle B-20.56 ECO has an enamel finish over steel to ensure that it will stay beautiful for years. Not only is it easy to install and sub-zone, but its flow-regulating valve allows for individual radiator control.
  • Perfect For Any System
  • You'll find that the B-20.56 ECO is an excellent addition to any system. Ecostyle radiators are compatible with low and high water temperature systems and feature a flow-regulating valve which affords you individual control over each unit.
  • Efficient Heating
  • The Ecostyle B-20.56 ECO contains less water than traditional cast iron radiators. This allows the B-20.56 ECO to begin delivering heat more quickly. The large convector plates make sure this heat is radiated in an efficient manner.
  • Radiant Heat
  • With a heating capacity of 9,137 BTU, the B-20.56 ECO produces both convective heat and radiant heat. Radiant heat makes your room comfortable more quickly by heating people and objects in the room, not just the air.
  • Simple Installation
  • The Ecostyle B-20.56 ECO utilizes clamp mounting brackets, which are included with the product. This means that you can install and remove it easily.
  • Attractive and Durable
  • The B-20.56 ECO is an attractive addition to your home. It has a minimal profile and an enamel finish to discourage scratches and corrosion.
  • Flexible Connection Options
  • With several connection options, Ecostyle Plus radiators are able to adapted for a variety of installation requirements.
  • Product Includes
  • (2) Clamp Brackets
  • (1) Flow Regulating Valve Insert
  • (1) Air Vent
  • (2) Installed Blind Plugs
  • Product Note
    Please see the Installation Manual under the Manuals tab for applicable piping options. Ecostyle radiators do not come with the fittings necessary for installation. These fittings are sold separately and differ depending on the installation requirements. See our Ecostyle Radiator Buying Guide under the How-To Articles tab for details on available fittings for your application.
    Specifications
    View More

    Specifications

    Overview
    Product Category
    Radiators
    UPC
    5907814714398
    General Information
    Type
    Panel
    Product Line
    Ecostyle
    Product Category
    Radiators
    Medium Learn More
    Medium
    Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
    Hot Water
    Connection Type
    BSP
    Material
    Steel
    Performance
    Heating BTU
    9000
    Heating Capacity
    9137 BTU
    Dimensions
    Supply Connection
    1/2 Inch
    Return Connection
    1/2 Inch
    Product Height
    20 Inches
    Product Width
    56 Inches
    Product Depth
    4 Inches
    Product Weight
    86 Pounds
    Shipping Weight
    96 Pounds
    Certifications
    ISO Certified
    Yes
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    10 Years
    Reviews
    View More

    Reviews

    Do You Own This Product?

    Give us your opinion on this product and help any future buyer's make an informed decision.

    Product Q&A
    View More

    Product Q&A

    Be the first to ask a question.

    Whether it's a general or technical question ACWholesalers can help. Our customer service team is backed by years of experience so you can have confidence knowing that you'll be getting an insightful response.
