Electro Industries 92K BTU Electric Hot Water Boiler 27 kW 208V 3 Ph
New NewThis product is new and has never been used. It's in its original packaging, which has not been opened.
Weight
155 Pounds 155 PoundsTotal weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
Product Category
Boiler
UPC
EDB-T1-28-208-3
View More
Voltage
Phase
DOE Heating Capacity (BTU/Hr)
+Share This Product
Recommended Accessories
Required AccessoriesAdd All Required
Installation Accessories
Features
Features

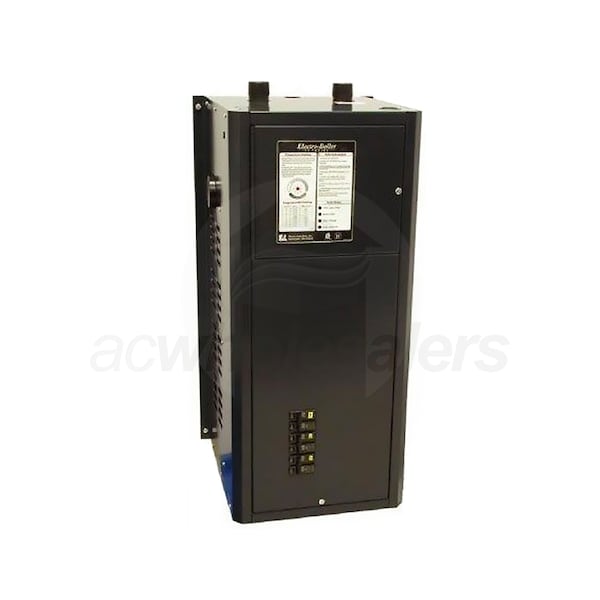

Overview for Electro Industries EDB-T1-28-208-3
Our most deluxe model is designed for multiple temperature and zoning applications. This model has the ability to sense water temperature and maintain an accurate boiler temperature output by only energizing the electric elements for needed output (not full capacity). This model eliminates extra costs associated with relays, extra temperature controls, zone boxes, etc. More experienced installers use this boiler to avoid the extra cost of the above.Outdoor sensing with outdoor reset capability. The target supply temperature ramps up as it is colder outside. As part of the EB-WX WarmFlo Electric Boiler Series, the TS Series electric boiler offers complete application flexibility. Features - 185 F hi-limit, compact, easy to install, ASME "H" Stamp, and parcel post shippable. The focus of this new design is to provide the installer with an easy access control board, a smaller, more compact design, and built-in temperature control. All of these features add up to a electric radiant heating boiler that is easier to use and install, which in turn saves you money. TS Series EB-WX WarmFlo Electro Boiler is Modulates at a tighter temperature control-Modulating.WarmFlo represents the controlling mechanism within your heating system to "smooth out" the energy capacity within the furnace or boiler to make sure it adjusts to the load capacity requirement at each thermostat call for heat. WarmFlo is the 21st century controller for your heating system. It applies to any electric or dual heat system, new or retrofit. This article presents only two applications - electric boiler and heat pump - do not overlook other applications and the many WarmFlo benefits.
Electro Industries EB-WX-27-2 Features
Controls and control wiring terminals.
LED indicator lights.
DC Power Relays
Circulator switching relay - 10-amp maximum
Thermostat or end switch connection (R and W)
Load management control provisions
Heavy duty sheet metal enclosure
Supply pressure/temperature gauge
Safety relief valve (30 PSI)
Heating elements (20-year warranty)
2-year parts warranty
Supply water sensing
Temperature range 90 F to 185 F
ASME/CSA listings
Made in the USA
Factory tested.
Specifications
Specifications
Overview
Product Category
Boiler
UPC
EDB-T1-28-208-3
General Information
Product Line
EB-WX
Product Category
Boiler
Medium MediumMedium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type Fuel TypeTo create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
Modulating/Staging Modulating/StagingStages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
Modulating
Mount Type
Wall
Includes Pump
No
Assembly Type
Packaged
Performance
Heating Capacity
92151 BTU
Heating Capacity (kW)
27 kW
Ultra Low NOx Emissions Ultra Low NOx EmissionsNOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx.
Yes
Electrical Data
Voltage
208 Volts
Phase
3
Frequency
60 Hz
Current Draw
75 Amps
Dimensions
Supply Connection
1 1/4 Inches
Return Connection
1 1/4 Inches
Product Height
37 5/16 Inches
Product Width
17 Inches
Product Depth
17 1/16 Inches
Product Weight
155 Pounds
Shipping Weight
155 Pounds
Warranty Information
Parts Warranty Parts WarrantyA warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Heating Element Warranty
20 Years
Vessel Warranty
20 Years
