Electro Industries 4.5 kW 15K BTU Hot Water Electric Boiler 240V 1 Ph

Model: EMB-H-5 Item Number: 18308

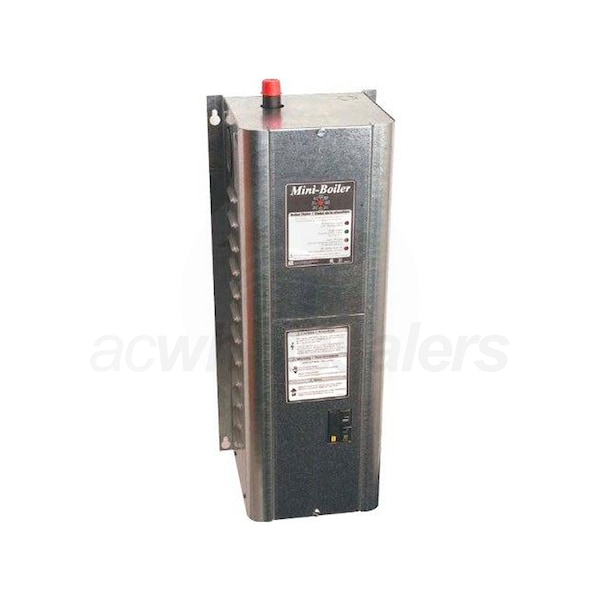

Electro Industries EMB-H-5
PREVIOUS
NEXT
Electro Industries EMB-H-5
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    53 Pounds Learn More
    53 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Boiler
Recommended Accessories
View More
Installation Accessories
Caleffi  Auto Fill Combo Automatic Boiler Fill Valve with Backflow Preventer, 1/2" FNPT Inlet x 1/2" FNPT Outlet
Model: 573002A
Inlet Type
Qty
$159.00
Only 3 In-Stock
Add To Cart
Weil-McLain Aqua Plus 45 - 45 Gallon Capacity- Residential Indirect Water Heater
Model: 633600001
Tank Size
Qty
$1,733.00
In-Stock
Add To Cart
Triangle Tube Smart 80 - 70 Gallon - Residential Indirect Water Heater
Model: SMART 80
Qty
$2,055.00
Only 1 In-Stock
Add To Cart
Hydrolevel Safgard 170 Heavy Duty Hot Water Boiler Low Water Cut-Off, 120 VAC, EL1214-SV  3/4" NPT Probe
Model: 170SV
Voltage
Qty
$138.00
Ships in 4-7 Business Days
Add To Cart
Burnham AL35SL - 35 Gallon - Indirect Water Heater
Model: AL35SL
Tank Size
Qty
$1,826.00
Only 4 In-Stock
Add To Cart
Electro Industries Quad Zone Controller for Electric Boilers
Model: EB-ZTS-1
Qty
$355.50
Ships in 2-3 Weeks
Add To Cart
Tekmar 518 - Thermostat - Non-Programmable - One Stage Heat
Model: 518
Qty
$101.00
Ships in 4-7 Business Days
Add To Cart
tekmar  521 - Thermostat - Programmable - 2H or 1H/1C - Buttons
Model: 521
Qty
$159.00
Ships in 2-5 Business Days
Add To Cart
Amtrol Extrol - 2 Gallon - In-Line Boiler System Expansion Tank
Model: EX-15
Qty
$48.59
In-Stock
Add To Cart
Features
View More

Features

Overview for Electro Industries EMB-H-5

This model is designed for multiple temperature and zoning applications. It the ability to sense water temperature and maintain an accurate boiler temperature output by only energizing the electric elements for needed output (not full capacity). Electro Industries Boiler models eliminates extra costs associated with relays, extra temperature controls, zone boxes, etc. WarmFlo controller is the 21st century device for your Electro Industries EMB-H-5. It applies to any electric or dual heat system.
  • Product Features
  • LED Indicator Lights
  • DC Power Relays
  • Load Management Control Provisions
  • Heavy Duty Sheet Metal Enclosure
  • Safety Relief Valve
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Boiler
    General Information
    Product Line
    EMB-H
    Product Category
    Boiler
    Medium Learn More
    Medium
    Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
    Hot Water
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Electric
    Modulating/Staging Learn More
    Modulating/Staging
    Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
    Modulating
    Mount Type
    Wall
    Assembly Type
    Packaged
    Includes Pump
    No
    Performance
    Heating Capacity
    15000 BTU
    Heating Capacity (kW)
    4.5 kW
    Ultra Low NOx Emissions Learn More
    Ultra Low NOx Emissions
    NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx.
    Yes
    Electrical Data
    Voltage
    240 Volts
    Phase
    1
    Frequency
    60 Hz
    Current Draw
    19 Amps
    Dimensions
    Supply Connection
    3/4 Inch
    Return Connection
    3/4 Inch
    Product Height
    25 Inches
    Product Width
    11 Inches
    Product Depth
    9 Inches
    Product Weight
    53 Pounds
    Shipping Weight
    63 Pounds
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    2 Years
    Heating Element Warranty
    20 Years
    Vessel Warranty
    20 Years
