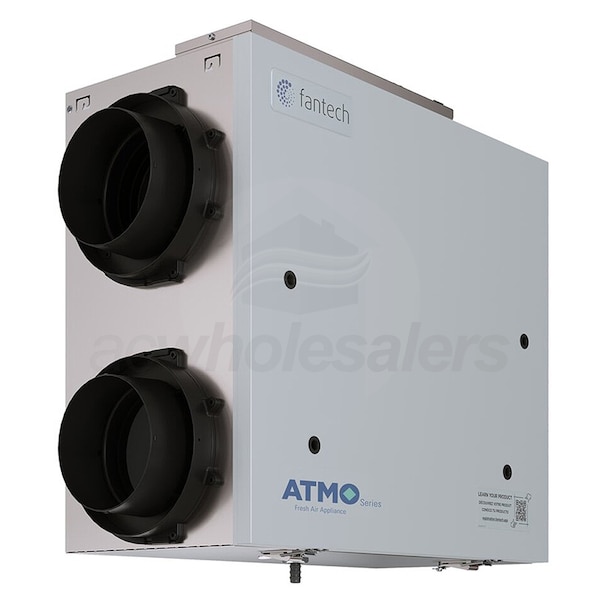

Fantech ATMO - 161 CFM - Energy Recovery Ventilator (ERV) - Side Ports - 6" Duct

Model: ATMO 150E Item Number: 123285
Fantech ATMO 150E
PREVIOUS
NEXT
Fantech ATMO 150E
Fantech ATMO 150E
Fantech ATMO 150E
Fantech ATMO 150E
Fantech ATMO 150E
Enlarge Image
Fantech ATMO 150E
Fantech ATMO 150E
Fantech ATMO 150E
Fantech ATMO 150E
Fantech ATMO 150E
View All
Our Price: $940.00
synchrony card icon
$157 / Month
Suggested monthly payments with 6 month financing.
In-Stock
Ships Monday, December 23rd
Shipping to60601
Fantech ATMO - 161 CFM - Energy Recovery Ventilator (ERV) - Side Ports - 6
Fantech ATMO - 161 CFM - Energy Recovery Ventilator (ERV) - Side Ports - 6" Duct Model: ATMO 150E Item Number: 123285
$940.00
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    48 Pounds Learn More
    48 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Energy Recovery Ventilators (ERVs)
    UPC
    650737638900
Max Air Flow (CFM)
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Fantech ATMO 150E

The Fantech ATMO 150E Energy Recovery Ventilator (ERV) is a 150 CFM energy recovery ventilator with side ports and polypropylene heat recovery core. The ATMO 150E is a 120-volt unit designed with 4 ports with 6" ducts. ERVs make your heating and cooling systems more efficient by transferring heat and humidity between fresh and stale air during ventilation. Its compact size and optional wall bracket make this ERV easy to mount. The ATMO 150E Energy Recovery Ventilator (ERV) features a crossflow core and washable electrostatic filters.
  • Exceptional Efficiency
  • The Fantech ATMO is capable of extracting up to 75% of the heat in the extract air is recovered by the heat exchanger and used to temper the fresh air coming from outside.
  • Healthier Home
  • Without proper ventilation, you are subject to indoor air pollutants like chemical products, pet dander or building materials. With an HRV, your home will be ventilated up to 20 times per day, making for a healthier home.
  • Defrost Cycle
  • The Fantech ATMO is equipped with an automatic defrost mechanism that is activated when outdoor air temperature drops to 14F (-10C) or lower.
  • Integrated Merv-3 Filter
  • The Fantech ATMO uses MERV3 a filter for unobstructed airflow and reducing textile fibers, pollen and dust mites.
  • Crossflow Core
  • The Fantech ATMO features provides an efficient crossflow heat exchanger with SRE up to 75% of energy transfer.
  • Insulated One-Piece Foam Cabinet
  • The Fantech ATMO is UL rated with improved aerodynamics, insulation and sound proofing.
  • External Electrical Box
  • The Fantech ATMO has external access to the electrical box with easy connectors.
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Energy Recovery Ventilators (ERVs)
    UPC
    650737638900
    General Information
    Type
    ERV
    Product Line
    ATMO
    Product Category
    Energy Recovery Ventilators (ERVs)
    Defrost Type Learn More
    Defrost Type
    ERV and HRV units may periodically suffer from frost formation on the heat exchanger. Units have different methods of eliminating this frost.
    Fan Shutdown
    Ports Quantity
    4
    Port Location
    Side
    Performance
    Maximum Air Flow
    161 CFM
    Apparent Sensible Effectiveness
    84 %
    Minimum Air Flow
    78 CFM
    Total Recovery Efficiency
    60 %
    Electrical Data
    Voltage
    120 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Duct Connection
    6 Inches
    Product Height
    22 Inches
    Product Width
    29 Inches
    Product Depth
    29 Inches
    Product Weight
    48 Pounds
    Shipping Width
    29 Inches
    Shipping Height
    22 Inches
    Shipping Length
    29 Inches
    Shipping Weight
    51 Pounds
    Certifications
    CSA Listed
    Yes
    Energy Star Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
    Motor Warranty
    7 Years
