Fantech 462 CFM Centrifugal Inline Fan with 8 inch Duct Opening

Model: FG8 Item Number: 31151
Fantech FG8
PREVIOUS
NEXT
Fantech FG8
Enlarge Image
Our Price: $266.00
synchrony card icon
$45 / Month
Suggested monthly payments with 6 month financing.
In-Stock
Ships Tuesday, December 24th
Shipping to60601
Fantech 462 CFM Centrifugal Inline Fan with 8 inch Duct Opening
Fantech 462 CFM Centrifugal Inline Fan with 8 inch Duct Opening Model: FG8 Item Number: 31151
$266.00
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Product Category
    Fans
    UPC
    650737480806
Efficiency
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Fantech FG8

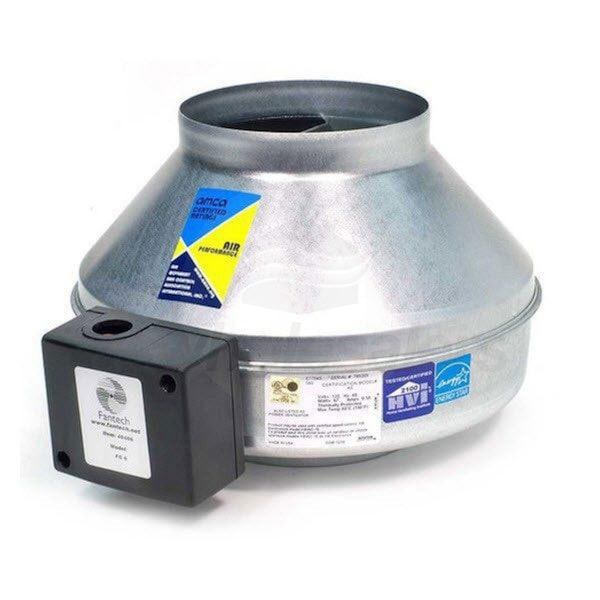

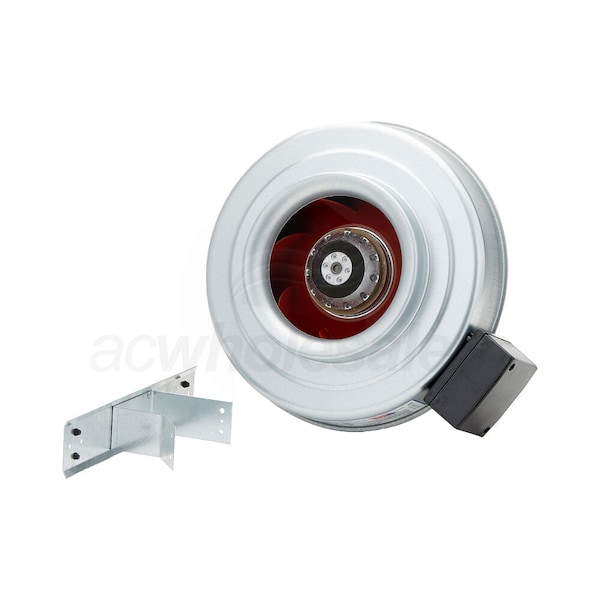

Featuring a galvanized steel housing, the Fantech FG 8 Centrifugal Inline Duct Fan is virtually airtight to allow peak performance in any inline application. Inline fans are installed directly in your duct work to provide powerful ventilation. This 120 volt model can produce a maximum airflow of up to 461 CFM. This inline duct fan is constructed with a 8" round duct. The FG 8 duct fan is rated for air temperatures of up to 140 degrees Fahrenheit and feature a backward curved impeller for improved air flow. Fans include a bracket for mounting to a ceiling or wall. FG Series Inline Fans are rated for outdoor use.
  • Thermal Overload Protection
  • Thermal overload protection automatically resets the fan when temperatures get too high, avoiding potential damage to the unit due to overheating.
  • Backward Curved Impeller
  • Backward curved impeller blades allow particles to easily pass through the fan blades, preventing a build-up.
  • Permanently Lubricated Sealed Ball Bearings
  • Permanently lubricated sealed ball bearings extend the service life of your fan.
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Fans
    UPC
    650737480806
    General Information
    Type
    Duct Fan
    Product Line
    FG
    Product Category
    Fans
    Mount Type
    Inline
    Housing Material
    Galvanized Steel
    Performance
    Maximum Air Flow
    461 CFM
    Electrical Data
    Voltage
    120 Volts
    Phase
    1
    Frequency
    60 Hz
    Current Draw
    1.14 Amps
    Dimensions
    Duct Connection
    8 Inches
    Product Diameter
    13 3/8 Inches
    Shipping Width
    17 Inches
    Shipping Height
    12 Inches
    Shipping Length
    17 Inches
    Shipping Weight
    12 Pounds
    Certifications
    UL Listed
    Yes
    CSA Listed
    Yes
    Energy Star Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
