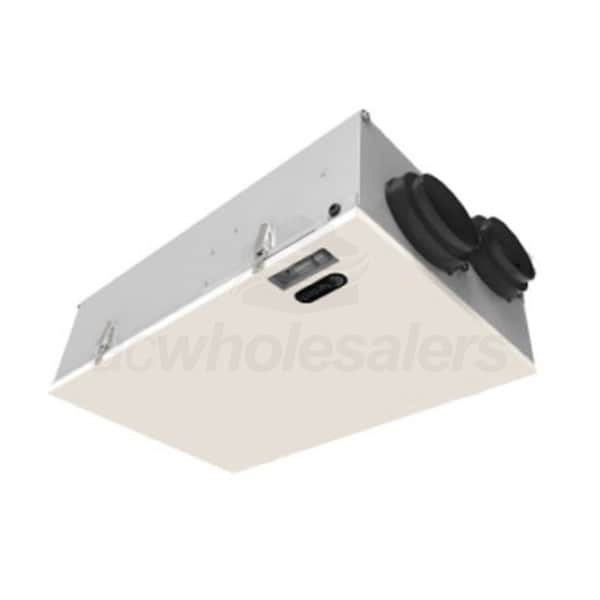

Fantech Fit 106 CFM Low Profile ERV Side Ports 5" Duct Exhaust

Model: FIT120E Item Number: 82057
Fantech FIT120E
Fantech FIT120E
Enlarge Image
Our Price: $810.00
synchrony card icon
$135 / Month
Suggested monthly payments with 6 month financing.
Factory-Direct
Ships in 4-7 Business Days
Fantech Fit 106 CFM Low Profile ERV Side Ports 5
Fantech Fit 106 CFM Low Profile ERV Side Ports 5" Duct Exhaust Model: FIT120E Item Number: 82057
$810.00
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    42 Pounds Learn More
    42 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Energy Recovery Ventilators (ERVs)
    UPC
    650737449407
Recommended Accessories
View More
Installation Accessories
Fantech 20 Minute Push Button Timer LED
$18.98
Ships in 7-14 Business Days
Model: RTS2
Qty
$18.98
Ships in 7-14 Business Days
Add To Cart
Fantech Electronic 20/40/60 timer Use with Flex100H VHR70R VHR150R
Model: RTS5
Qty
$35.00
Ships in 7-14 Business Days
Add To Cart
Fantech Indoor Air Quality Control - Programmable - Wall Mounted - Touchscreen
Model: ECO-TOUCH IAQ
Qty
$137.80
In-Stock
Add To Cart
Fantech 2 Wire Mechanical Low Voltage Dehumidistat
Model: MDEH1
Qty
$26.00
In-Stock
Add To Cart
Fantech Mounting Metal Clamps for Round Duct 10 inch Duct
Model: FC10
Qty
$34.00
Ships in 7-14 Business Days
Add To Cart
Features
View More

Features

Overview for Fantech FIT120E

The Fantech Fit® 120E Fresh Air Appliance is an Energy Recovery Ventilator (ERV) that provides a continuous supply of fresh air while exhausting stale air from your home. ERVs make your heating and cooling systems more efficient by transferring heat and humidity between fresh and stale air during ventilation. With a profile only 8.75" high, the Fit® 120E is ideal for applications with little mechanical room or where it must be located over a false ceiling.
  • Slim Profile
  • The compact design of the Fit® 120E, at only 8.75 tall
  • Easy Maintenance
  • You have easy access to the internal components by unlatching the 4 latches and removing the housing. Each serviceable internal component is easily accessible and can be fully removed.
  • No Drain Required
  • A drain is not required with the Fit® 120E. Moisture in the incoming air is simply transferred to the outgoing air during the circulation process.
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Energy Recovery Ventilators (ERVs)
    UPC
    650737449407
    General Information
    Type
    ERV
    Product Line
    Fit
    Product Category
    Energy Recovery Ventilators (ERVs)
    Defrost Type Learn More
    Defrost Type
    ERV and HRV units may periodically suffer from frost formation on the heat exchanger. Units have different methods of eliminating this frost.
    Exhaust
    Port Location
    Side
    Housing Material
    Galvanized Steel
    Performance
    Maximum Air Flow
    106 CFM
    Electrical Data
    Power Consumption
    170 Watts
    Phase
    1
    Frequency
    60 Hz
    Current Draw
    1.4 Amps
    Dimensions
    Duct Connection
    5 Inches
    Product Height
    8 3/4 Inches
    Product Width
    30 1/2 Inches
    Product Depth
    19 Inches
    Product Weight
    42 Pounds
    Shipping Weight
    52 Pounds
    Certifications
    CSA Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
    Reviews
    5.0 out of 5 stars5.0 out of 5 stars
    (1)
    View More

    Reviews

    Overall Rating from 1 Reviews
    icons-ratings-full
    5.00 / 5
    5 Stars
    (1)
    4 Stars
    (0)
    3 Stars
    (0)
    2 Stars
    (0)
    1 Star
    (0)
    100%of Customers Recommend This Product
    Features
    5.0/5
    Quality
    5.0/5
    Performance
    5.0/5
    Value
    5.0/5
    Sort By:
    5
    Rated Out Of 5
    5.0 out of 5 stars5.0 out of 5 stars
    FIT120E Is A Fit Choice For Condo Ventilation
    By David B
    Check Mark
    Verified Buyers
    Check Mark
    David B Recommends This
    Purchased
    Review Posted 01/24/2023
    fantastic unit - easy to handle and work with for installation. Instructions are clear. Fantech products are reliable and the company provides good support. Shipping from ACWholesalers was easy and trackable.
