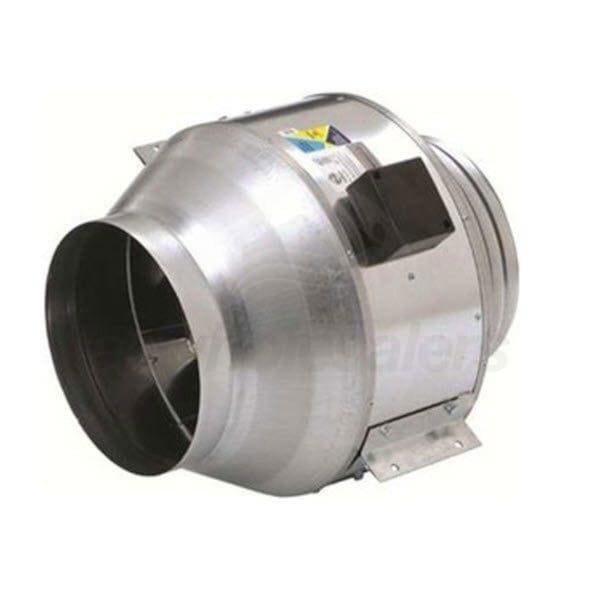

Fantech FKD - 2,156 CFM - Inline Duct Fan - 14" Duct - 115V

Model: FKD14 Item Number: 31187
Fantech FKD14
PREVIOUS
NEXT
Fantech FKD14
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Product Category
    Fans
    UPC
    650737091408
Features
View More

Features

Overview for Fantech FKD14

Featuring a galvanized steel housing, the Fantech FKD 14 Mixed Flow Inline Duct Fan is a direct drive, mixed flow centrifugal duct fan designed especially for supply and exhaust applications where quiet performance and easy installation are important. Inline fans are installed directly in your duct work to provide powerful ventilation. This 115 volt model can produce a maximum airflow of up to 2,156 CFM. The FKD 14 is constructed with a 14" round duct. Fan motors come with permanently lubricated sealed ball bearings. FKD Series Inline Fans are suitable for airstreams up to 140 degrees Fahrenheit.
  • Mixed Flow Centrifugal Fan
  • Mixed flow centrifugal fans combine the high air flows of axial fans with the high pressure, non-overloading characteristics of backward curved impellers.
  • Prewired Fan
  • For your convenience, this fan is prewired and ready to install out of the box.
  • 100% Speed Controllable
  • On-demand ventilation and precision balancing of systems is controllable through voltage reduction.
  • External Rotor Motor
  • An external rotor motor allows the fan to operate in high-moisture or dust-laden areas.
  • Thermal Overload Protection
  • Thermal overload protection automatically resets the fan when temperatures get too high, avoiding potential damage to the unit due to overheating.
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Fans
    UPC
    650737091408
    General Information
    Type
    Duct Fan
    Product Line
    FKD
    Product Category
    Fans
    Mount Type
    Inline
    Housing Material
    Galvanized Steel
    Performance
    Maximum Air Flow
    2156 CFM
    Maximum Sound Level Learn More
    Maximum Sound Level
    The sone is a unit of loudness, or how loud a sound is perceived. For reference, the loudness of rustiling leaves is around 0.02 sones, a quiet running refrigerator is around 2 sones, and a running car is around 4-16 sones.
    18.4 Sones
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Current Draw
    4.76 Amps
    Dimensions
    Duct Connection
    14 Inches
    Product Diameter
    17 7/8 Inches
    Product Height
    17 1/4 Inches
    Shipping Height
    24 Inches
    Shipping Width
    20 Inches
    Shipping Length
    20 Inches
    Certifications
    UL Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    3 Years
