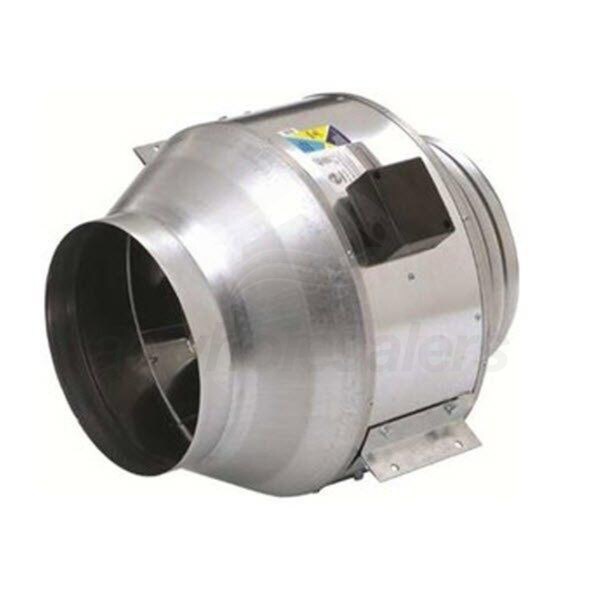

Fantech FKD 4,274 CFM Inline Duct Fan 16" Duct 230V

Model: FKD16XL-230 Item Number: 31459
Fantech FKD16XL-230
PREVIOUS
NEXT
Fantech FKD16XL-230
Enlarge Image
Our Price: $2,253.00
synchrony card icon
$376 / Month
Suggested monthly payments with 6 month financing.
Factory-Direct
Ships in 4-7 Business Days
Fantech FKD 4,274 CFM Inline Duct Fan 16
Fantech FKD 4,274 CFM Inline Duct Fan 16" Duct 230V Model: FKD16XL-230 Item Number: 31459
$2,253.00
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    84 Pounds Learn More
    84 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Fans
    UPC
    65073745302
Recommended Accessories
View More
Installation Accessories
Fantech Speed Control w/ On and Off Switch 120V 5 Amp
Model: WC15
Qty
$27.00
Only 2 In-Stock
Add To Cart
Features
View More

Features

Overview for Fantech FKD16XL-230

Featuring a galvanized steel housing, the Fantech FKD 16XL-230 Mixed Flow Inline Duct Fan is a direct drive, mixed flow centrifugal duct fan designed especially for supply and exhaust applications where quiet performance and easy installation are important. Inline fans are installed directly in your duct work to provide powerful ventilation. This 230 volt model can produce a maximum airflow of up to 4,274 CFM. The FKD 16XL-230 is constructed with a 16" round duct. Fan motors come with permanently lubricated sealed ball bearings. FKD Series Inline Fans are suitable for airstreams up to 140 degrees Fahrenheit.
  • Mixed Flow Centrifugal Fan
  • Mixed flow centrifugal fans combine the high air flows of axial fans with the high pressure, non-overloading characteristics of backward curved impellers.
  • Prewired Fan
  • For your convenience, this fan is prewired and ready to install out of the box.
  • 100% Speed Controllable
  • On-demand ventilation and precision balancing of systems is controllable through voltage reduction.
  • External Rotor Motor
  • An external rotor motor allows the fan to operate in high-moisture or dust-laden areas.
  • Thermal Overload Protection
  • Thermal overload protection automatically resets the fan when temperatures get too high, avoiding potential damage to the unit due to overheating.
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Fans
    UPC
    65073745302
    General Information
    Type
    Duct Fan
    Product Line
    FKD
    Product Category
    Fans
    Mount Type
    Inline
    Housing Material
    Galvanized Steel
    Performance
    Maximum Air Flow
    4274 CFM
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Duct Connection
    16 Inches
    Product Diameter
    22 1/8 Inches
    Product Height
    23 1/4 Inches
    Product Weight
    84 Pounds
    Shipping Height
    28 Inches
    Shipping Width
    24 Inches
    Shipping Length
    24 Inches
    Shipping Weight
    94 Pounds
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    3 Years
