Fantech FKD 5,136 CFM Inline Duct Fan 16" Duct 460V

Model: FKD16XLEC Item Number: 62612
Fantech FKD16XLEC
PREVIOUS
NEXT
Fantech FKD16XLEC
Enlarge Image
Our Price: $3,124.00
synchrony card icon
$55 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Factory-Direct
Ships in 4-7 Business Days
Fantech FKD 5,136 CFM Inline Duct Fan 16
Fantech FKD 5,136 CFM Inline Duct Fan 16" Duct 460V Model: FKD16XLEC Item Number: 62612
$3,124.00
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    75 Pounds Learn More
    75 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Fans
    UPC
    650737449565
Duct Diameter
Select Attribute
Power Supply
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

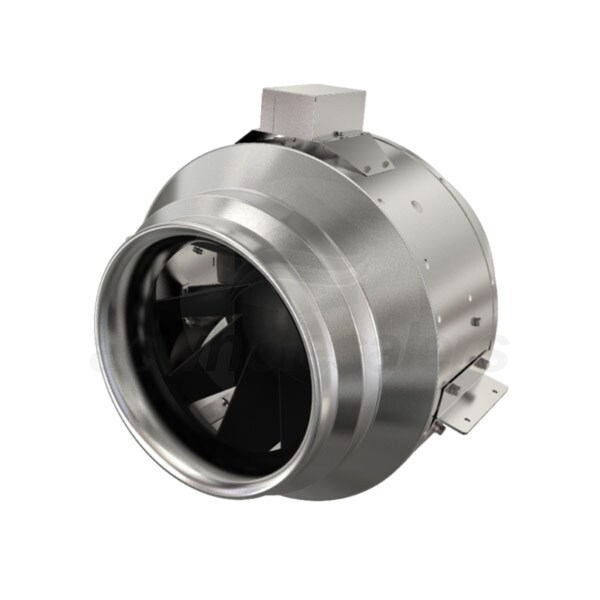

Overview for Fantech FKD16XLEC

Featuring a galvanized steel housing, the Fantech FKD16XLEC Mixed Flow Inline Duct Fan is a direct drive, mixed flow centrifugal duct fan designed especially for supply and exhaust applications where quiet performance and easy installation are important. Inline fans are installed directly in your duct work to provide powerful ventilation. This 460 volt model can produce a maximum airflow of up to 5,136 CFM. The FKD16XLEC is constructed with a 16" round duct. Fan motors come with permanently lubricated sealed ball bearings. FKD Series Inline Fans are suitable for airstreams up to 140 degrees Fahrenheit.
  • Mixed Flow Centrifugal Fan
  • Mixed flow centrifugal fans combine the high air flows of axial fans with the high pressure, non-overloading characteristics of backward curved impellers.
  • Prewired Fan
  • For your convenience, this fan is prewired and ready to install out of the box.
  • 100% Speed Controllable
  • On-demand ventilation and precision balancing of systems is controllable through voltage reduction. The EC fans are controlled with a 0-10VDc signal.
  • Efficient EC Motor
  • High Efficient EC motor allows for less power consumption and reduced cost all around.
  • Thermal Overload Protection
  • Thermal overload protection automatically resets the fan when temperatures get too high, avoiding potential damage to the unit due to overheating.
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Fans
    UPC
    650737449565
    General Information
    Type
    Duct Fan
    Product Line
    FKD
    Product Category
    Fans
    Mount Type
    Inline
    Housing Material
    Galvanized Steel
    Performance
    Maximum Air Flow
    5196 CFM
    Electrical Data
    Voltage
    460 Volts
    Power Consumption
    1965 Watts
    Phase
    3
    Frequency
    60 Hz
    Dimensions
    Duct Connection
    16 Inches
    Product Height
    22 1/8 Inches
    Product Width
    23 3/4 Inches
    Product Weight
    75 Pounds
    Shipping Height
    28 Inches
    Shipping Width
    23 Inches
    Shipping Depth
    23 Inches
    Shipping Weight
    85 Pounds
    Certifications
    UL Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    3 Years
