Fantech FKD - 6,062 CFM - Inline Duct Fan - 20" Duct - 460V

Model: FKD20EC Item Number: 62614

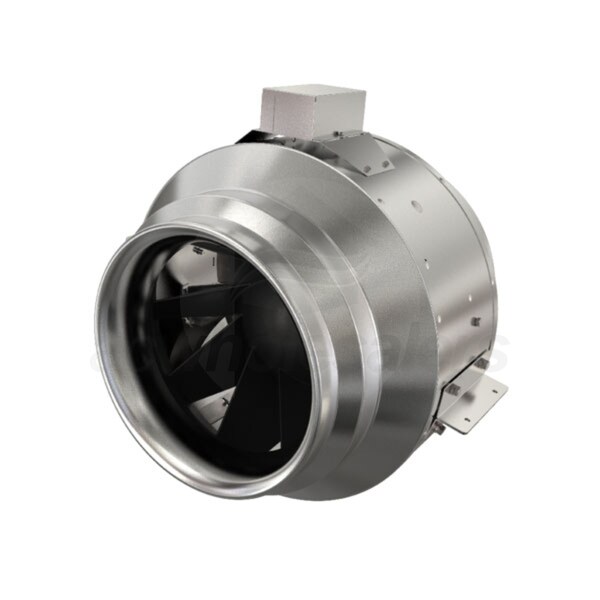

Fantech FKD20EC
PREVIOUS
NEXT

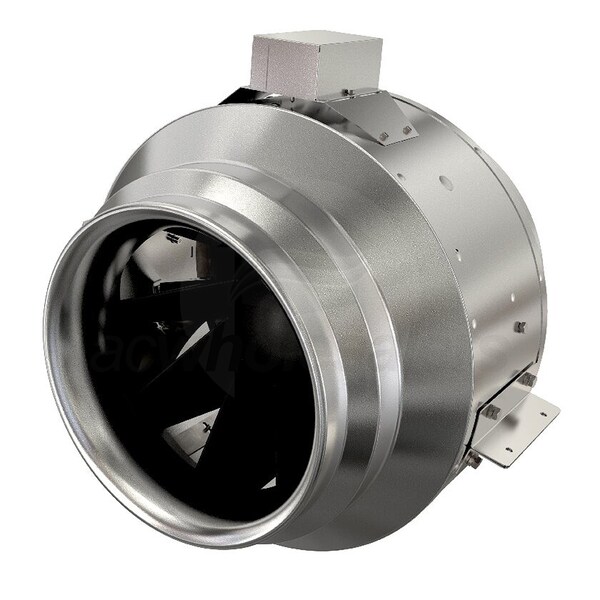

Fantech FKD20EC
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    99.2 Pounds Learn More
    99.2 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Fans
    UPC
    650737449582
Features
View More

Features

Overview for Fantech FKD20EC

Featuring a galvanized steel housing, the Fantech FKD20EC Mixed Flow Inline Duct Fan is a direct drive, mixed flow centrifugal duct fan designed especially for supply and exhaust applications where quiet performance and easy installation are important. Inline fans are installed directly in your duct work to provide powerful ventilation. This 460 volt model can produce a maximum airflow of up to 6,062 CFM. The FKD20EC is constructed with a 20" round duct. Fan motors come with permanently lubricated sealed ball bearings. FKD Series Inline Fans are suitable for airstreams up to 140 degrees Fahrenheit.

Product Features

Mixed Flow Centrifugal Fan
Mixed flow centrifugal fans combine the high air flows of axial fans with the high pressure, non-overloading characteristics of backward curved impellers.

Prewired Fan
For your convenience, this fan is prewired and ready to install out of the box.

100% Speed Controllable
On-demand ventilation and precision balancing of systems is controllable through voltage reduction. The EC fans are controlled with a 0-10VDc signal.

Efficient EC Motor
This product is equipped with a highly efficient EC motor which uses significantly less power.

Thermal Overload Protection
Thermal overload protection automatically resets the fan when temperatures get too high, avoiding potential damage to the unit due to overheating.

Specifications
View More

Specifications

Overview
Product Category
Fans
UPC
650737449582
General Information
Product Line
FKD EC
Product Category
Fans
Housing Material
Galvanized Steel
Performance
Maximum Air Flow
6062 CFM
Electrical Data
Voltage
460 Volts
Power Consumption
2002 Watts
Phase
3
Frequency
60 Hz
Dimensions
Duct Connection
20 Inches
Product Height
26 5/48 Inches
Product Width
27 5/24 Inches
Product Weight
99.2 Pounds
Shipping Height
30 Inches
Shipping Width
30 Inches
Shipping Depth
30 Inches
Shipping Weight
109 Pounds
Certifications
UL Listed
Yes
Warranty Information
Parts Warranty Show ACW Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
