Fantech 560 CFM 16" x 8" Rectangle Centrifugal Mixed Flow Inline Fan

Model: FRD16-8 Item Number: 31199
Fantech FRD16-8
PREVIOUS
NEXT
Fantech FRD16-8
Enlarge Image
Our Price: $470.00
synchrony card icon
$79 / Month
Suggested monthly payments with 6 month financing.
Factory-Direct
Ships in 7-14 Business Days
Fantech 560 CFM 16
Fantech 560 CFM 16" x 8" Rectangle Centrifugal Mixed Flow Inline Fan Model: FRD16-8 Item Number: 31199
$470.00
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Product Category
    Fans
    UPC
    650737391683
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Fantech FRD16-8

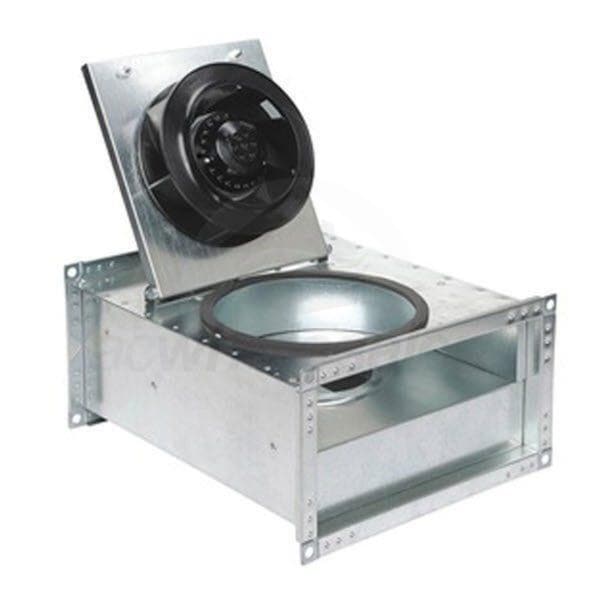

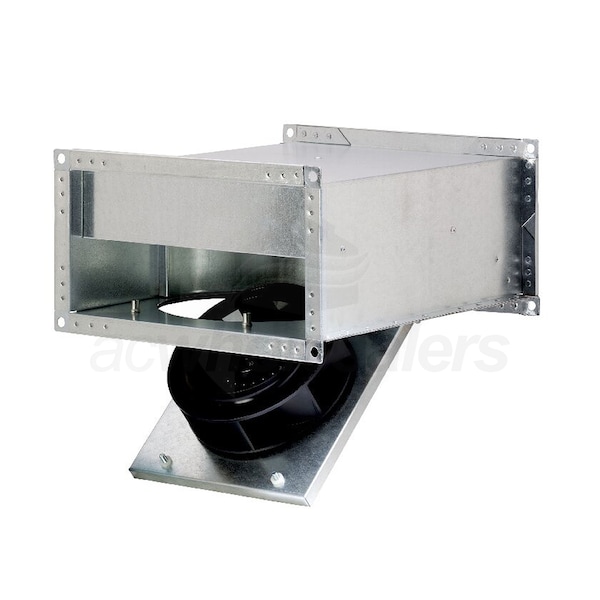

The Fantech FRD 16-8 Rectangular Inline Duct Fan is a 560 CFM centrifugal supply and exhaust fan designed for large ventilation in areas of limited space. It is constructed for 16 x 8 inch venting. FRD Series Duct Fans can install directly within equally sized rectangular ductwork without the need for transitions. The motor is mounted on a hinged door for easy access. This unit is wired for 115 volts.
  • Duct-to-Duct Installation
  • A compact rectangular design allows for installation directly within rectangular ductwork without the need for large elbows or transitions.
  • Easy Maintenance
  • All serviceable components are easily accessible in under 5 minutes.
  • Backward Curved Impeller
  • Backward curved impeller blades allow particles to easily pass through the fan blades, preventing a build-up.
  • 100% Speed Controllable
  • On-demand ventilation and precision balancing of systems is controllable through voltage reduction.
  • Permanently Lubricated Motor
  • Permanently lubricated sealed ball bearings keep your fan working maintenance-free.
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Fans
    UPC
    650737391683
    General Information
    Type
    Duct Fan
    Product Line
    FRD
    Product Category
    Fans
    Mount Type
    Inline
    Housing Material
    Galvanized Steel
    Performance
    Maximum Air Flow
    560 CFM
    Maximum Sound Level Learn More
    Maximum Sound Level
    The sone is a unit of loudness, or how loud a sound is perceived. For reference, the loudness of rustiling leaves is around 0.02 sones, a quiet running refrigerator is around 2 sones, and a running car is around 4-16 sones.
    13 Sones
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Current Draw
    1.3 Amps
    Dimensions
    Duct Connection
    16 Inches
    Product Height
    7 3/4 Inches
    Product Width
    15 3/4 Inches
    Product Length
    19 3/4 Inches
    Shipping Height
    13 Inches
    Shipping Width
    21 Inches
    Shipping Length
    21 Inches
    Shipping Weight
    30 Pounds
    Certifications
    UL Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    3 Years
