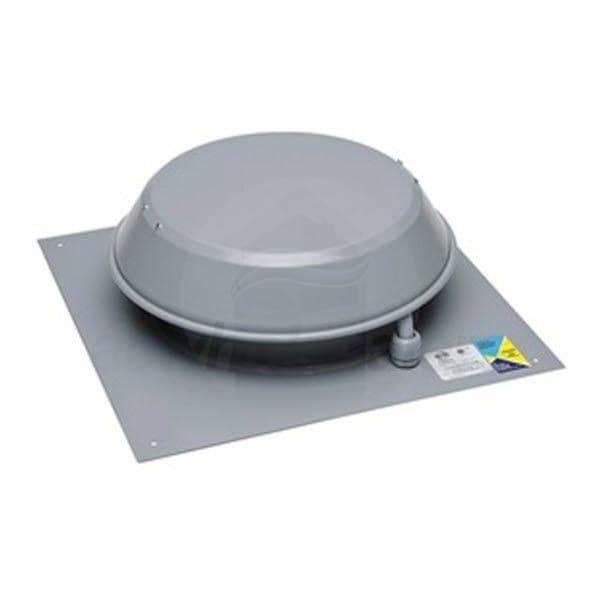

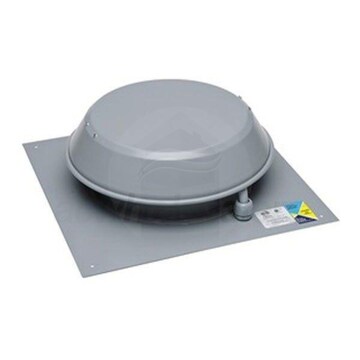

Fantech Roof Mount 4 inch or 5 inch Centrifugal Duct Fan 116 CFM

Model: RE54 Item Number: 31250

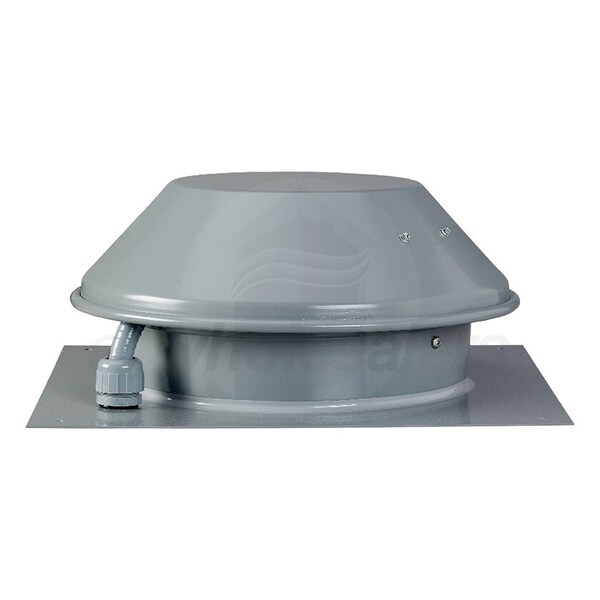

Fantech RE54
PREVIOUS
NEXT
Fantech RE54
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    11 Pounds Learn More
    11 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Fans
    UPC
    650737420406
Recommended Accessories
View More
Installation Accessories
Fantech Adjustable Metal Exhaust Grille with collar for 4 inch duct
Model: MGE4
Qty
$18.80
Only 4 In-Stock
Add To Cart
Fantech Speed Control w/ On and Off Switch 120V 5 Amp
Model: WC15
Qty
$27.00
Only 2 In-Stock
Add To Cart
Fantech Silencer for Round Ducting 5 inch Duct
Model: LD5
Qty
$110.00
Only 2 In-Stock
Add To Cart
Fantech Adjustable Supply and Exhaust Grille for 4 inch Duct
Model: CG4
Qty
$16.00
Only 1 In-Stock
Add To Cart
Fantech Metal Supply Grille with collar for 4 inch duct
Model: MGS4
Qty
$20.00
Only 1 In-Stock
Add To Cart
Features
View More

Features

Overview for Fantech RE54

Overview for Fantech RE54

Fantech RE54 Roof Mount 4 or 5 in Centrifugal Duct Fan 116 CFM
  • Permanently Lubricated Sealed Ball Bearings
  • Permanently lubricated sealed ball bearings extend the service life of your fan.
  • Thermal Overload Protection
  • Thermal overload protection automatically resets the fan when temperatures get too high, avoiding potential damage to the unit due to overheating.
  • 100% Speed Controllable
  • On-demand ventilation and precision balancing of systems is controllable through voltage reduction.
  • External Rotor Motor
  • An external rotor motor allows the fan to operate in high-moisture or dust-laden areas.
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Fans
    UPC
    650737420406
    General Information
    Type
    Exterior Duct Fan
    Product Line
    RE
    Product Category
    Fans
    Mount Type
    Roof
    Housing Material
    Galvanized Steel
    Performance
    Maximum Air Flow
    116 CFM
    Maximum Sound Level Learn More
    Maximum Sound Level
    The sone is a unit of loudness, or how loud a sound is perceived. For reference, the loudness of rustiling leaves is around 0.02 sones, a quiet running refrigerator is around 2 sones, and a running car is around 4-16 sones.
    3.5 Sones
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Current Draw
    0.18 Amps
    Dimensions
    Duct Connection
    4 Inches
    Product Height
    6 Inches
    Product Width
    15 1/2 Inches
    Product Length
    15 1/2 Inches
    Product Weight
    11 Pounds
    Shipping Height
    14 Inches
    Shipping Width
    20 Inches
    Shipping Length
    20 Inches
    Shipping Weight
    11 Pounds
    Certifications
    CSA Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
