Fantech Wall Mount 4 inch Centrifugal Duct Fan 124 CFM

Model: RVF4 Item Number: 31293
Fantech RVF4
PREVIOUS
NEXT
Fantech RVF4
Enlarge Image
Our Price: $211.00
synchrony card icon
$36 / Month
Suggested monthly payments with 6 month financing.
Only 1 In-Stock
Ships Today, April 22nd
Shipping to60601
Fantech Wall Mount 4 inch Centrifugal Duct Fan 124 CFM
Fantech Wall Mount 4 inch Centrifugal Duct Fan 124 CFM Model: RVF4 Item Number: 31293
$211.00
Only 1 In-Stock
-
+
Accessories
Features
Specifications
Reviews
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Product Category
    Fans
    UPC
    650737230401
Recommended Accessories
View More
Installation Accessories
Fantech Adjustable Metal Exhaust Grille with collar for 4 inch duct
Model: MGE4
Qty
$18.80
Only 4 In-Stock
Add To Cart
Fantech Adjustable Supply and Exhaust Grille for 4 inch Duct
Model: CG4
Qty
$16.00
Only 1 In-Stock
Add To Cart
Fantech Metal Supply Grille with collar for 4 inch duct
Model: MGS4
Qty
$20.00
Only 1 In-Stock
Add To Cart
Features
View More

Features

Overview for Fantech RVF4

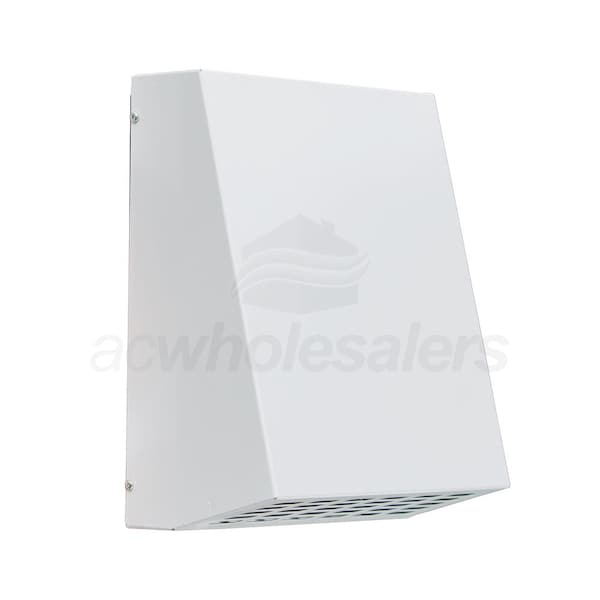

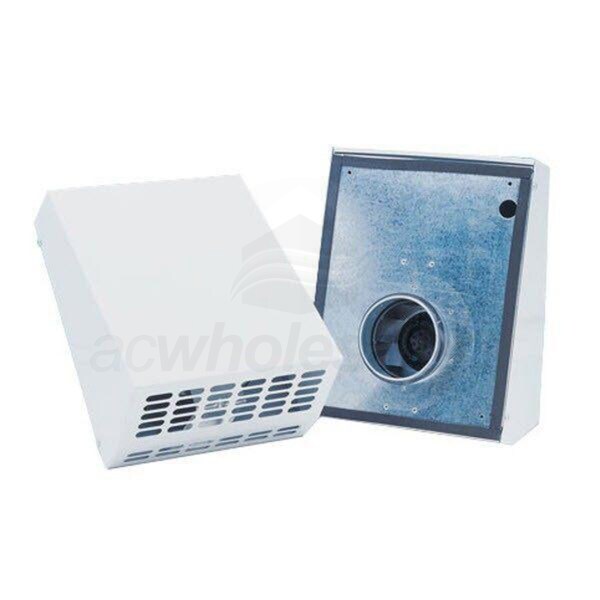

Featuring a galvanized steel housing, the Fantech RVF 4 Centrifugal Exterior Duct Fan is the perfect solution for direct through-wall ventilation where quiet operation is required in residential or commercial applications. RVF fan motors mount to the outside wall of the building limiting noise from operation. This 115 volt model can produce a maximum airflow of up to 124 CFM. The RVF 4 is constructed with a 4" round duct.
  • Permanently Lubricated Sealed Ball Bearings
  • Permanently lubricated sealed ball bearings extend the service life of your fan.
  • External Rotor Motor
  • An external rotor motor allows the fan to operate in high-moisture or dust-laden areas.
  • 100% Speed Controllable
  • On-demand ventilation and precision balancing of systems is controllable through voltage reduction.
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Fans
    UPC
    650737230401
    General Information
    Type
    Exterior Duct Fan
    Product Line
    RVF
    Product Category
    Fans
    Mount Type
    Wall
    Housing Material
    Galvanized Steel
    Performance
    Maximum Air Flow
    124 CFM
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Current Draw
    0.17 Amps
    Dimensions
    Duct Connection
    4 Inches
    Product Height
    13 Inches
    Product Width
    10 1/4 Inches
    Product Length
    6 Inches
    Shipping Width
    11 Inches
    Shipping Height
    8 Inches
    Shipping Length
    14 Inches
    Shipping Weight
    8 Pounds
    Certifications
    UL Listed
    Yes
    CSA Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
