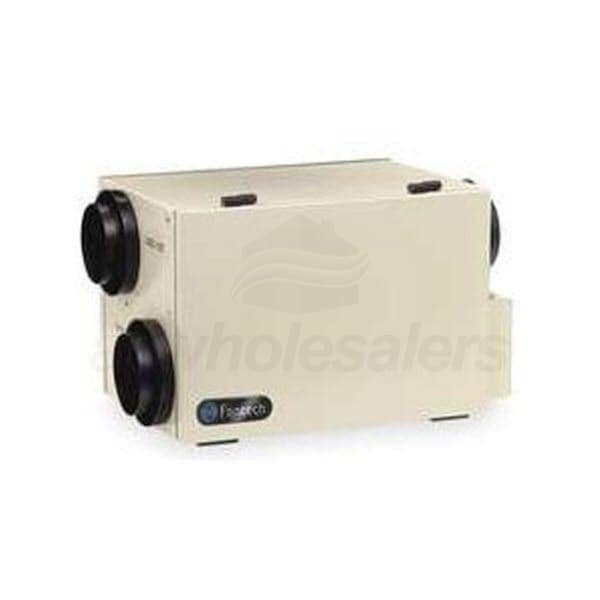

Fantech SER 145 CFM Energy Recovery Ventilator ERV Side Ports 6" Duct

Model: SER150 Item Number: 80302
Fantech SER150
PREVIOUS
NEXT
Fantech SER150
Enlarge Image
Not For Individual Sale
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    46 Pounds Learn More
    46 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Energy Recovery Ventilators (ERVs)
    UPC
    650737992095
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Fantech SER150

The Fantech SER 150 Energy Recovery Ventilator (ERV) is a 145 CFM energy recovery ventilator with side ports and exhaust defrost capabilities. The SER 150 is a 120 volt unit designed with 4 ports with 6" ducts. ERVs make your heating and cooling systems more efficient by transferring heat and humidity between fresh and stale air during ventilation. Its compact size and wall bracket make this ERV easy to mount. The SER 150 Energy Recovery Ventilator (ERV) features an enthalpy core, washable electrostatic filters, and electronic control board.
  • Heat Recovery Core
  • An aluminum heat recovery core provides improved heat transfer capacity while taking up less space than traditional cores.
  • Winter Guard
  • A built-in exhaust defrost system allows for consistent, reliable operation during the winter months.
  • Electronic Control Board
  • Microprocessor technology efficiently controls operation of the unit making it easy to connect HVAC equipment and wall controls.
  • Washable Electrostatic Filters
  • Electrostatic filters capture airborne particles traveling through the ventilator. Easily washable, these filters can be repeatedly reused before replacement.
  • Product Includes
  • (1) SER 150 Energy Recovery Ventilator (ERV)
  • (1) Mounting Chains
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Energy Recovery Ventilators (ERVs)
    UPC
    650737992095
    General Information
    Type
    ERV
    Product Line
    SER
    Product Category
    Energy Recovery Ventilators (ERVs)
    Defrost Type Learn More
    Defrost Type
    ERV and HRV units may periodically suffer from frost formation on the heat exchanger. Units have different methods of eliminating this frost.
    Exhaust
    Ports Quantity
    4
    Port Location
    Side
    Performance
    Maximum Air Flow
    170 CFM
    Apparent Sensible Effectiveness
    76 %
    Minimum Air Flow
    85 CFM
    Total Recovery Efficiency
    45 %
    Electrical Data
    Voltage
    120 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Duct Connection
    6 Inches
    Product Height
    16 Inches
    Product Width
    23 Inches
    Product Depth
    17 Inches
    Product Weight
    46 Pounds
    Shipping Height
    22 Inches
    Shipping Width
    18 Inches
    Shipping Length
    30 Inches
    Shipping Weight
    49 Pounds
    Certifications
    CSA Listed
    Yes
    Energy Star Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
    Motor Warranty
    7 Years
