Fantech SHR 690 CFM Heat Recovery Ventilator HRV Side Ports 14 x 8"

Model: SHR700 Item Number: 94222
Fantech SHR700
PREVIOUS
NEXT
Fantech SHR700
Enlarge Image
Our Price: $2,344.00
synchrony card icon
$391 / Month
Suggested monthly payments with 6 month financing.
Factory-Direct
Ships in 12-16 Weeks
Fantech SHR 690 CFM Heat Recovery Ventilator HRV Side Ports 14 x 8
Fantech SHR 690 CFM Heat Recovery Ventilator HRV Side Ports 14 x 8" Model: SHR700 Item Number: 94222
$2,344.00
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    185 Pounds Learn More
    185 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Heat Recovery Ventilators (HRVs)
    UPC
    650737992682
Max Air Flow (CFM)
Select Attribute
Defrost Type
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

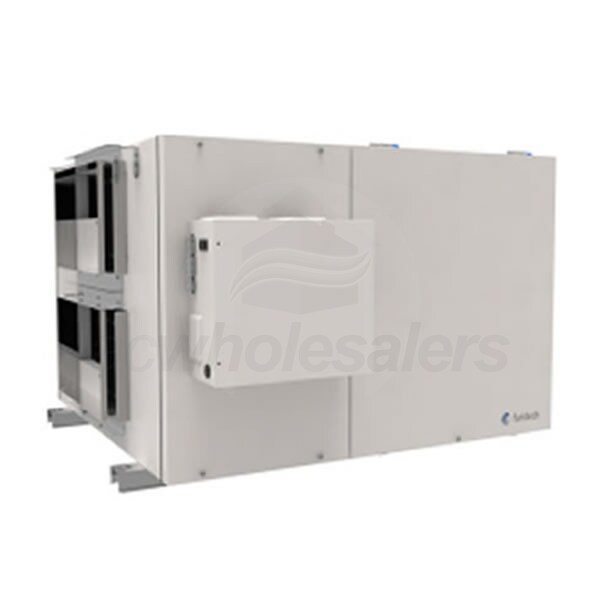

Overview for Fantech SHR700

Every building needs proper ventilation to maintain the quality of the indoor air. The Fantech SHR 700 Heat Recovery Ventilator (HRV) is specifically designed for commercial applications to efficiently exchange stale indoor air for fresh outdoor air. By transferring heat between the fresh and stale air, this HRV will lead to tremendous savings on your heating and cooling bills. The SHR 700 HRV maximizes your savings with highly efficient aluminum heat exchange and washable filters.
  • Heat Recovery Core
  • An aluminum heat recovery core provides improved heat transfer capacity while taking up less space than traditional cores.
  • Winter Guard
  • A built-in exhaust defrost system allows for consistent, reliable operation during the winter months.
  • Washable Electrostatic Filters
  • Electrostatic filters capture airborne particles traveling through the ventilator. Easily washable, these filters can be repeatedly reused before replacement.
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Heat Recovery Ventilators (HRVs)
    UPC
    650737992682
    General Information
    Type
    HRV
    Product Line
    SHR
    Product Category
    Heat Recovery Ventilators (HRVs)
    Defrost Type Learn More
    Defrost Type
    ERV and HRV units may periodically suffer from frost formation on the heat exchanger. Units have different methods of eliminating this frost.
    Exhaust
    Ports Quantity
    4
    Port Location
    Side
    Performance
    Maximum Air Flow
    753 CFM
    Minimum Air Flow
    118 CFM
    Electrical Data
    Voltage
    120 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Product Height
    22 Inches
    Product Width
    36 1/2 Inches
    Product Depth
    36 1/4 Inches
    Product Weight
    185 Pounds
    Shipping Weight
    205 Pounds
    Certifications
    CSA Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    3 Years
