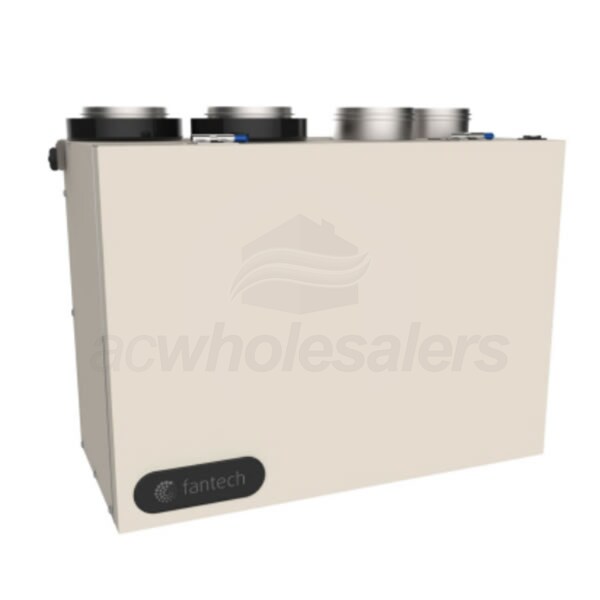

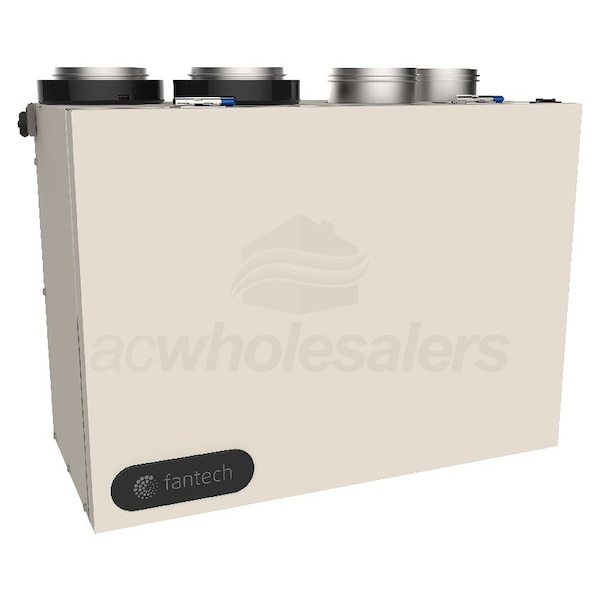

Fantech VHR 56 CFM Heat Recovery Ventilator HRV Top Ports 4" Duct

Model: VHR70 Item Number: 80566
Fantech VHR70
PREVIOUS
NEXT
Fantech VHR70
Enlarge Image
Our Price: $714.00
synchrony card icon
$119 / Month
Suggested monthly payments with 6 month financing.
Factory-Direct
Ships in 7-14 Business Days
Fantech VHR 56 CFM Heat Recovery Ventilator HRV Top Ports 4
Fantech VHR 56 CFM Heat Recovery Ventilator HRV Top Ports 4" Duct Model: VHR70 Item Number: 80566
$714.00
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    26 Pounds Learn More
    26 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Heat Recovery Ventilators (HRVs)
    UPC
    650737632649
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Fantech VHR70

The Fantech VHR70 Heat Recovery Ventilator (HRV) is a 56 CFM heat recovery ventilator with top ports and exhaust defrost capabilities. The VHR70 is a 115 volt unit designed with 4 ports with 4" ducts. HRVs make your heating and cooling systems more efficient by transferring heat between fresh and stale air during ventilation. Its compact size and wall bracket make this HRV easy to mount. The VHR70 Heat Recovery Ventilator (HRV) features an aluminum core and washable electrostatic filters.
  • Heat Recovery Core
  • An aluminum heat recovery core provides improved heat transfer capacity while taking up less space than traditional cores.
  • Winter Guard
  • A built-in exhaust defrost system allows for consistent, reliable operation during the winter months.
  • Controls
  • An External rocker switch featuring three positions (Low/Stand By/Medium) that allows for simple control of air flow.
  • Washable Electrostatic Filters
  • Electrostatic filters capture airborne particles traveling through the ventilator. Easily washable, these filters can be repeatedly reused before replacement.
  • Product Includes
  • VHR70 Heat Recovery Ventilator (HRV)
  • Mounting Bracket
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Heat Recovery Ventilators (HRVs)
    UPC
    650737632649
    General Information
    Type
    HRV
    Product Line
    VHR
    Product Category
    Heat Recovery Ventilators (HRVs)
    Defrost Type Learn More
    Defrost Type
    ERV and HRV units may periodically suffer from frost formation on the heat exchanger. Units have different methods of eliminating this frost.
    Exhaust
    Ports Quantity
    4
    Port Location
    Top
    Performance
    Maximum Air Flow
    81 CFM
    Apparent Sensible Effectiveness
    69 %
    Minimum Air Flow
    42 CFM
    Sensible Recovery Efficiency
    60 %
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Condensate Drain Size
    1/2 Inch
    Duct Connection
    4 Inches
    Product Height
    17 5/24 Inches
    Product Width
    22 1/2 Inches
    Product Depth
    10 5/24 Inches
    Product Weight
    26 Pounds
    Shipping Width
    13 Inches
    Shipping Height
    21 Inches
    Shipping Length
    24 Inches
    Shipping Weight
    26 Pounds
    Certifications
    CSA Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
    Motor Warranty
    7 Years
