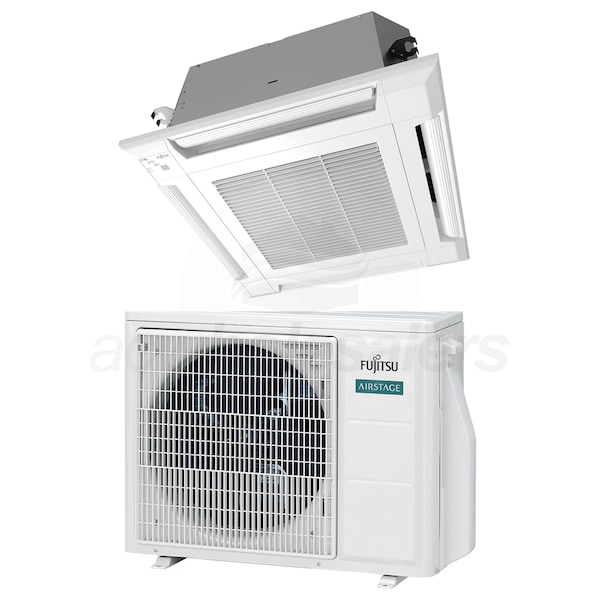

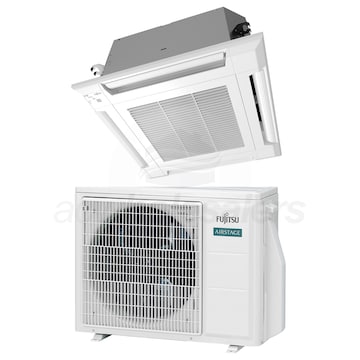

Fujitsu - 12k BTU Cooling + Heating - Compact Ceiling Cassette Air Conditioning System - 23.0 SEER2

Model: 12LUAS1C Item Number: 123385
Fujitsu 12LUAS1C
Fujitsu 12LUAS1C
Fujitsu 12LUAS1C
Fujitsu 12LUAS1C
Fujitsu 12LUAS1C
Enlarge Image
Fujitsu 12LUAS1C
Fujitsu 12LUAS1C
Fujitsu 12LUAS1C
Fujitsu 12LUAS1C
View All
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    33 Pounds Learn More
    33 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Ceiling Cassette
    Operating Mode
    Heating and Cooling
Bundle Includes 3 items
  • product image
    (1) Fujitsu 12k BTU Outdoor Condenser - Single Zone Only (AOUH12LUAS1)
  • product image
    (1) Fujitsu - 12k BTU - Compact Ceiling Cassette - For Multi or Single-Zone - Grille Sold Separately (ACUH12LUAS1-NG)
  • product image
    (1) Fujitsu - Compact Ceiling Cassette Grille (UTG-CCGFGA)
Recommended Accessories
View More
Required Accessories Add All Required
Diversitech ULTRALITE Condenser Mounting Pad 16x36x3
Model: UC1636-3
Qty
$44.00
In-Stock
Add To Cart
Primary Mini Split Installation Starter Kit for Cassettes and Concealed Duct Units - 25' Long - 1/4" x 3/8" Line Set - One Required
Model: MSPLTKITCD-143825
Length (ft)
Qty
$367.00
In-Stock
Add To Cart
RectorSeal WBB300 Outdoor Condenser Wall Bracket, supports up to 300 lbs.
Model: WBB300
Qty
$105.62
In-Stock
Add To Cart
Installation Accessories
Fortress Line Set Cover 3-1/2" Straight Ducting White
Model: LD92W
Color
Qty
$46.70
In-Stock
Add To Cart
Mueller - 1/4" x 3/8" Insulated Mini Split Line Set - 15' Length - Factory Flared
Model: MLS143812-15
Length (ft)
Qty
$150.00
In-Stock
Add To Cart
Mini Split Connecting Cable - 14 GA - 4 Conductors - Stranded - 25' Length
Model: MSCABLE144-25
Length (ft)
Qty
$45.00
In-Stock
Add To Cart
Fortress Line Set Cover Wall Duct Kit - 12 Foot - White 3-1/2"
Model: LDK92W
Color
Qty
$137.43
In-Stock
Add To Cart
Fujitsu - Airstage Mobile Wi-Fi Module - For Non-Wall Mount Indoor Unit
Model: UTY-TFSXJ4
Qty
$128.00
Only 2 In-Stock
Add To Cart
Aspen Mini White - Mini Split Condensate Pump Kit - Universal Voltage - Up to 54,000 BTU/hr
Model: ASP-MW-UNI
Qty
$296.32
In-Stock
Add To Cart
Fortress Twistlock Line Set Duct Clip - 12 Pack
Model: 84099
Qty
$5.30
In-Stock
Add To Cart
Mitsubishi Line-Hide 3" Line Set Cover Starter Kit Ivory
Model: 2-CD-75 NE-75 NR-75 2-NS-75 NW-75
Qty
$86.49
In-Stock
Add To Cart
Features & Bundle Details
View More

Features & Bundle Details

Overview for Fujitsu 12LUAS1C

Fujitsu has been providing efficient and responsible heating and air conditioning solutions for decades. Their experience and dedication can be seen in the ACUH18LUAS1 ceiling cassette mini split indoor unit. The ACUH18LUAS1 is capable of cooling, drying, and heating operations, none of which will disrupt your home thanks to the low operating sound levels. Between the advanced filtration technology and the additional operating modes, the ACUH18LUAS1 is a choice that promotes health and comfort year round.
  • Inverter Technology
  • The AOUH12LUAS1 outdoor condenser uses an inverter to drive the compressor, allowing it to match its output to the amount of heating or cooling required by a space, even as conditions change.
  • Low Ambient Heating
  • Fujitsu's low temperature heating technology allows this condenser to safely maintain its rated capacity in outdoor temperatures as low as 14 degrees Fahrenheit. The ACUH12LUAS1 can operate in heating mode in conditions as low as -5 degrees Fahrenheit.
  • Timer Function
  • This system offers seven day programmability with two unique on/off events on each individual day. This allows you to customize heating and cooling operations to suit your personal schedule, improving energy efficiency without compromising your home.
  • Bundle Includes 3 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    General Information
    Type
    Ceiling Cassette
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Number of Zones Learn More
    Number of Zones
    A zone is a room or area within a building that has its own temperature control.
    1
    Multi-Zone Compatible
    No
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    12
    Installation Location
    Indoor
    Outdoor Unit Size
    12000 BTU
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Line Set Size
    1/4" x 3/8"
    Performance
    Cooling BTU
    12000
    Cooling Capacity
    12000 BTU
    Heating Capacity
    16000 BTU
    Maximum Air Flow
    359 CFM
    Minimum Air Flow
    241 CFM
    Minimum Operating Temperature
    -5 F
    Maximum Operating Temperature
    14 F
    Minimum Sound Level
    28 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    37 dB
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -5 F
    Minimum Outdoor Temperature for Cooling
    14 F
    SEER2 Learn More
    SEER2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
    23.0
    EER2 Learn More
    EER2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. EER2 (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER2, the more efficient the system.
    12.8
    HSPF2 Learn More
    HSPF2
    The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. HSPF2 (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF2, the more efficient the system.
    11.3
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    11.3 Amps
    Recommended Breaker Size
    15 Amps
    Dimensions
    Gas Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    9 5/8 Inches
    Product Width
    22 7/16 Inches
    Product Depth
    22 7/16 Inches
    Product Weight
    33 Pounds
    Shipping Weight
    135 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    206579744
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
    Compressor Warranty
    7 Years
    General Information
    Type
    Outdoor Condenser
    Product Line
    Airstage LUAS
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    No
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Outdoor Unit Size
    12000 BTU
    Performance
    Cooling BTU
    12000
    Cooling Capacity
    12000 BTU
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    49 dB
    Low Ambient Heating
    Yes
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Maximum Line Length
    66 Feet
    Gas Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    24 7/8 Inches
    Product Width
    31 7/16 Inches
    Product Depth
    11 7/16 Inches
    Product Weight
    84 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Compressor Warranty
    7 Years
    General Information
    Type
    Ceiling Cassette
    Product Line
    Airstage LUAS
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Remote Control
    Wired
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    12000
    Installation Location
    Indoor
    Performance
    Cooling BTU
    12000
    Cooling Capacity
    12000 BTU
    Maximum Air Flow
    359 CFM
    Minimum Air Flow
    241 CFM
    Minimum Sound Level
    28 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    37 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    9 3/8 Inches
    Product Width
    22 7/16 Inches
    Product Depth
    22 7/16 Inches
    Product Weight
    33 Pounds
    Shipping Width
    28 3/4 Inches
    Shipping Height
    10 7/16 Inches
    Shipping Depth
    24 5/8 Inches
    Shipping Weight
    40 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Compressor Warranty
    7 Years
    Overview
    Product Category
    Mini Split System Components
    General Information
    Type
    Grille
    Product Line
    Halcyon
    Product Category
    Mini Split System Components
    Installation Location
    Indoor
    Performance
    Cooling BTU
    9000
    Cooling Capacity
    9000 BTU
    Overview
    Product Category
    Mini Split System Components
