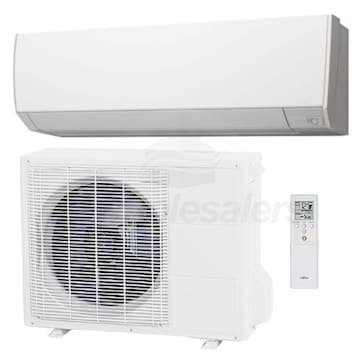

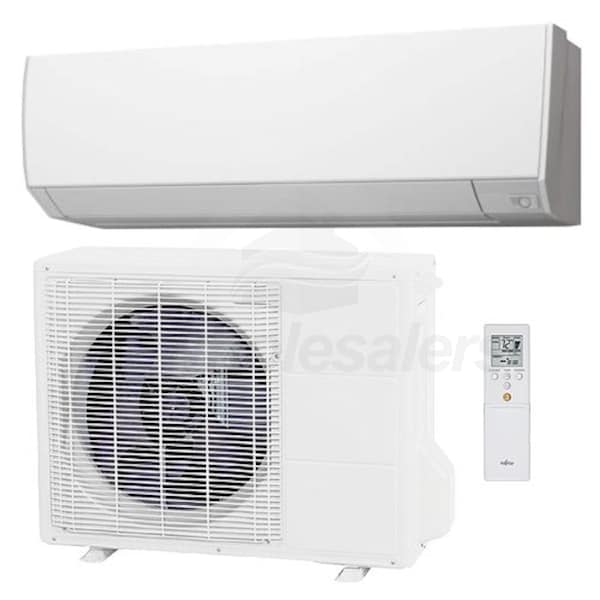

Fujitsu - 9k BTU Cooling + Heating - RLS3 Wall Mounted Air Conditioning System - 33.0 SEER
NewNewThis product is new and has never been used. It's in its original packaging, which has not been opened.
Weight
115 Pounds115 PoundsTotal weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
Type
Wall Mounted
Operating Mode
Heating and Cooling
View More
Bundle Includes 2 items
(1) Fujitsu - 9k BTU - RLS3 Outdoor Condenser - Single Zone Only (AOU9RLS3)
(1) Fujitsu Designer 9k BTU Wall Mounted Unit - For Single-Zone (ASU9RLS3)
Overview for Fujitsu 9RLS3The Fujitsu 9RLS3 9,000 BTU 33 SEER Ductless Mini Split Heat Pump, can provide cooling in the summer and heat in the winter for year-round comfort. Fujitsu’s strong, quiet and efficient DC motors are used both indoors and outdoors. High performance fan blades, condensers and evaporators combined with variable speed inverterdriven compressors make for unmatched performance. Variable speed compressors automatically adjust to fluctuating room capacity requirements. Designed for single rooms, these systems are the perfect solution for any space that needs cooling or heating.
Product Note
This product requires a compatible mini split outdoor condenser and the following accessories for indoor unit installation:
Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing..
Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
Wall Bracket (Optional) - A simple and sturdy way to mount your outdoor condenser off of the ground.
Adding these accessories to your order will provide a complete, ready-to-install mini split system.
Bundle Includes 2 items
Fujitsu - 9k BTU - RLS3 Outdoor Condenser - Single Zone Only
Model: AOU9RLS3
Item Number: 65423
Quantity: 1
Fujitsu Designer 9k BTU Wall Mounted Unit - For Single-Zone
Model: ASU9RLS3
Item Number: 50266
Quantity: 1
Specifications
Specifications
Included In This Bundle
Bundle Overview
Bundle Overview
AOU9RLS3 Specifications
ASU9RLS3 Specifications
General Information
Type
Wall Mounted
Operating Mode Operating ModeSome products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Number of Zones Number of ZonesA zone is a room or area within a building that has its own temperature control.
1
Refrigerant Type
R-410A
Indoor Unit Size(s) Indoor Unit Size(s)Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
15
Line Set Size
1/4" x 3/8"
Performance
Cooling Capacity
15000 BTU
Heating Capacity
15000 BTU
SEER SEERSEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
33
EER EEREER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
5.28
HSPF HSPFHSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system.
14.2
Minimum Outdoor Temperature for Heating Minimum Outdoor Temperature for HeatingThis is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
-5 F
Minimum Outdoor Temperature for Cooling
14 F
Dimensions
Product Weight
115 Pounds
Shipping Weight
130 Pounds
Certifications
AHRI Certified
Yes
AHRI Reference Number
8004699
General Information
Type
Outdoor Condenser
Product Line
RLS3
Operating Mode Operating ModeSome products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
9000
Maximum Sound Level Maximum Sound LevelSound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
47 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Minimum Outdoor Temperature for HeatingThis is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
-5 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Phase
1
Frequency
60 Hz
Recommended Breaker Size
15 Amps
Dimensions
Maximum Line Length
66 Feet
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
24 1/2 Inches
Product Width
31 1/8 Inches
Product Depth
11 7/16 Inches
Product Weight
84 Pounds
Shipping Width
37 3/16 Inches
Shipping Height
28 1/16 Inches
Shipping Depth
15 9/16 Inches
Shipping Weight
93 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Parts WarrantyA warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
Compressor Warranty
7 Years
General Information
Type
Wall Mounted
Product Line
RLS3
Operating Mode Operating ModeSome products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Indoor Unit Size(s)Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
9
Installation Location
Indoor
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Maximum Air Flow
489 CFM
Minimum Air Flow
224 CFM
Minimum Sound Level
23 dB
Maximum Sound Level Maximum Sound LevelSound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
42 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
11 5/8 Inches
Product Width
37 Inches
Product Depth
10 5/8 Inches
Product Weight
31 Pounds
Shipping Height
14 3/8 Inches
Shipping Width
40 15/16 Inches
Shipping Depth
14 Inches
Shipping Weight
37 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Parts WarrantyA warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
Reviews
(1)
(1)
Reviews
4
Rated Out Of 5
Easy to install, very quiet, powerful cooling in 100deg weather
By RobotDude
RobotDude Recommends This
Review Posted 08/13/2015
Very nice unit, only 2.5 amp draw at full power, compressor throttles back to a little over an amp when nearing set point. So quiet that you can't hear it run most of the time. Two complaints; the manual is obviously translated so parts of it are hard to understand, especially the programming functions. Cooling mode only goes down to 64 degrees. We installed this in the Master BR and like it super cold when we sleep, what not 60 like everyone else?? I would have given 5 stars for the outstanding performance and features, but let us decide the temperature!
